Workflow Nodes Reference

A reference for Workflow Nodes

Last updated About 1 hour ago

Workflow Nodes

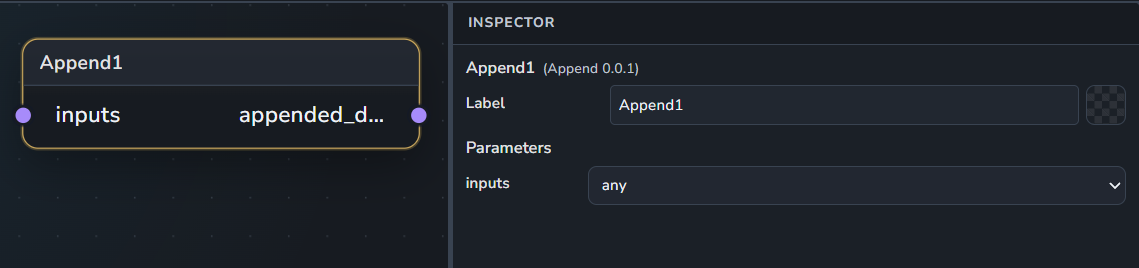

Append

Group single or multiple inputs together into a list format.

Inputs:

  • inputs: Any input or list of inputs. Supports multiple connections.

Outputs:

  • appended_data: The resulting list of grouped data.

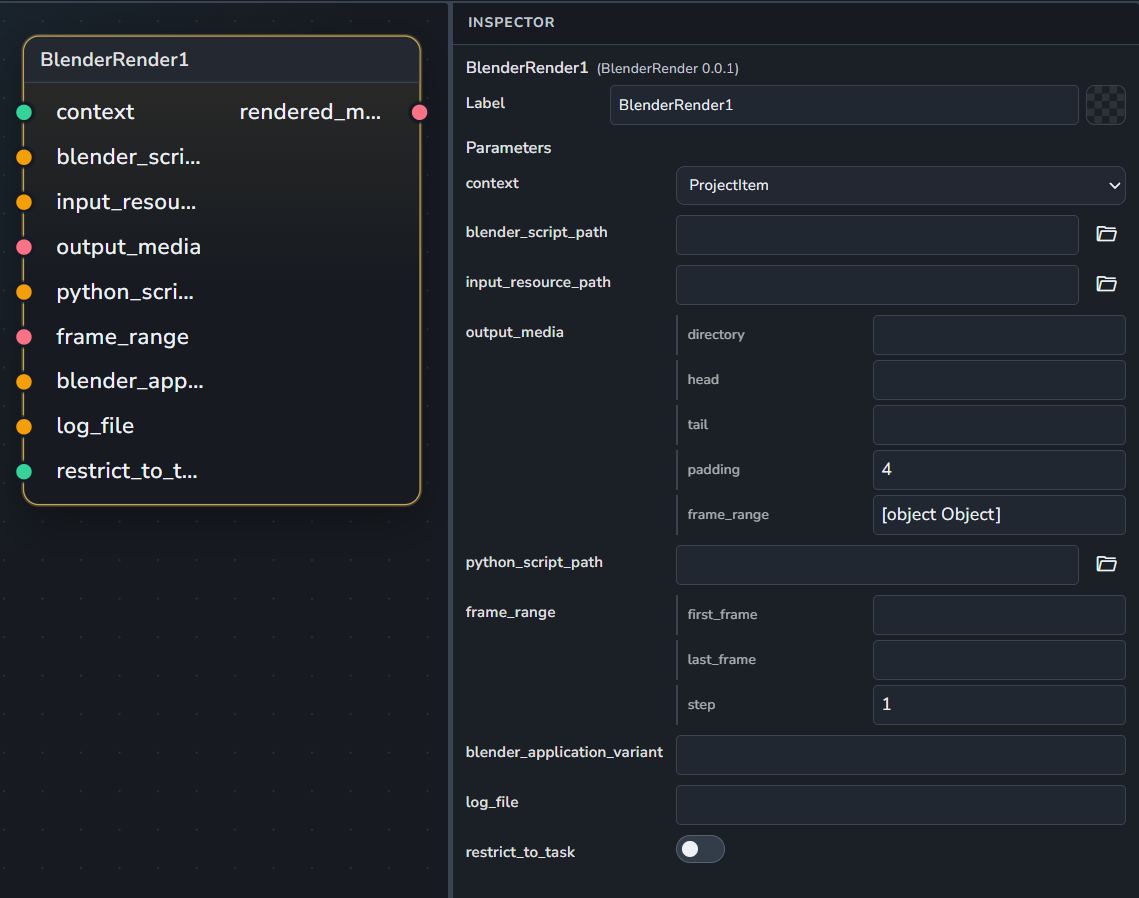

BlenderRender

Performs a render operation using Blender host application.

Inputs:

  • context: The AYON render context.

  • blender_script_path: The path to the .blend scene file.

  • input_resource_path: Path to a specific input resource.

  • output_media: The expected output image sequence.

  • python_script_path: Path to an optional Python script to run.

  • frame_range: Specific frame range to restrict the render to.

  • blender_application_variant: Specific application variant/version to use.

  • log_file: Path to save the render logs.

Outputs:

  • rendered_media: The resulting rendered image sequence.

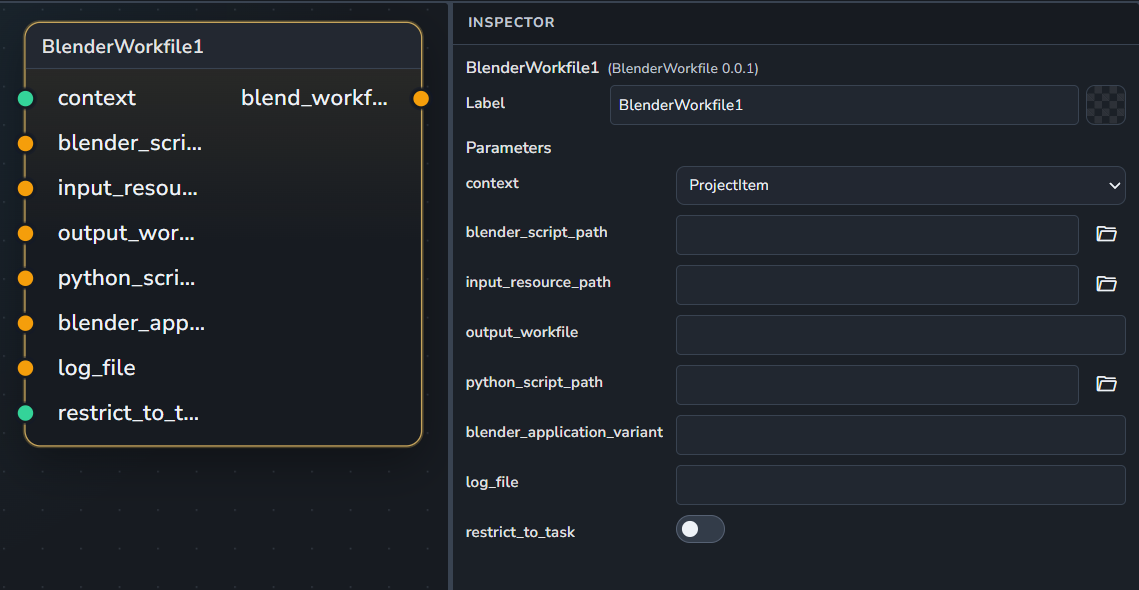

BlenderWorkfile

Assembles a workfile within Blender.

Inputs:

  • context: The assembly context.

  • blender_script_path: The path to the .blend file.

  • input_resource_path: Path to a required input resource.

  • output_workfile: The path where the workfile will be saved.

  • python_script_path: Path to an optional Python script.

  • blender_application_variant: Specific application variant/version to use.

  • log_file: Path to save logs

Outputs:

  • blend_workfile: The resulting Blender workfile path.

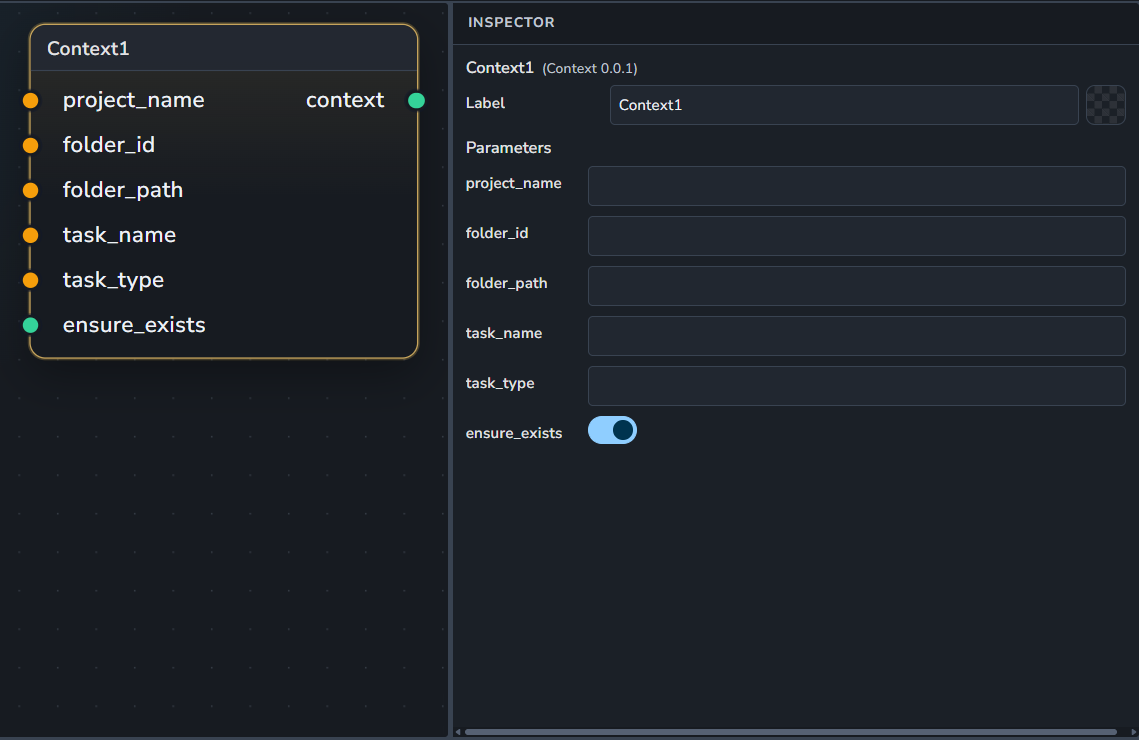

Context

Gathers and validates an AYON context item based on project, folder, and task parameters.

Inputs:

  • project_name: The name of the project.

  • folder_id: The unique ID for the folder. it overrides the folder_path if both entered.

  • folder_path: The path for the folder.

  • task_name: The name for the task.

  • task_type: The type for the task.

  • ensure_exists: When enabled, it checks if given context exists.
    Currently, it doesn’t support creating the context if it doesn’t exist.

Outputs:

  • context: The AYON context item.

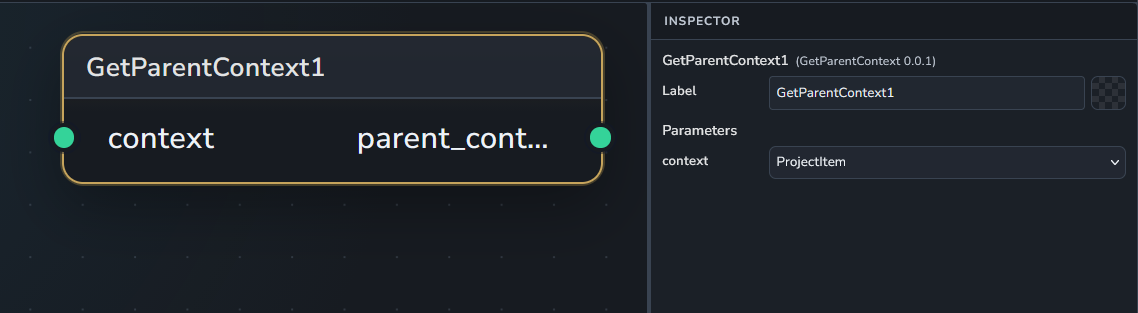

GetParentContext

Get parent context of an AYON context item.

Inputs:

  • context: An AYON context item.

    • Project entity

    • Folder entity

    • Task entity

Outputs:

  • parent_context: The parent context.

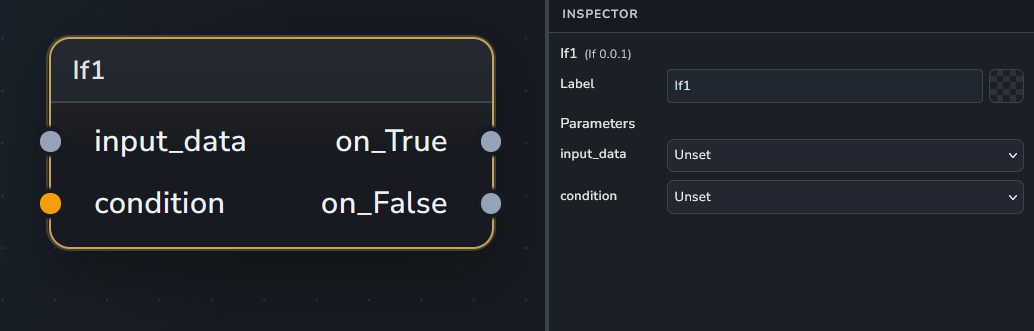

If

Conditional node evaluating input data

Inputs:

  • input_data: The input data.

  • condition: The condition to evaluate. Defaults to bool(input_data). If a string is provided, it is evaluated as a Python expression against input_data (trusted workflows only).

Outputs:

  • on_True: input_data when condition is True

  • on_False: input_data when condition is False

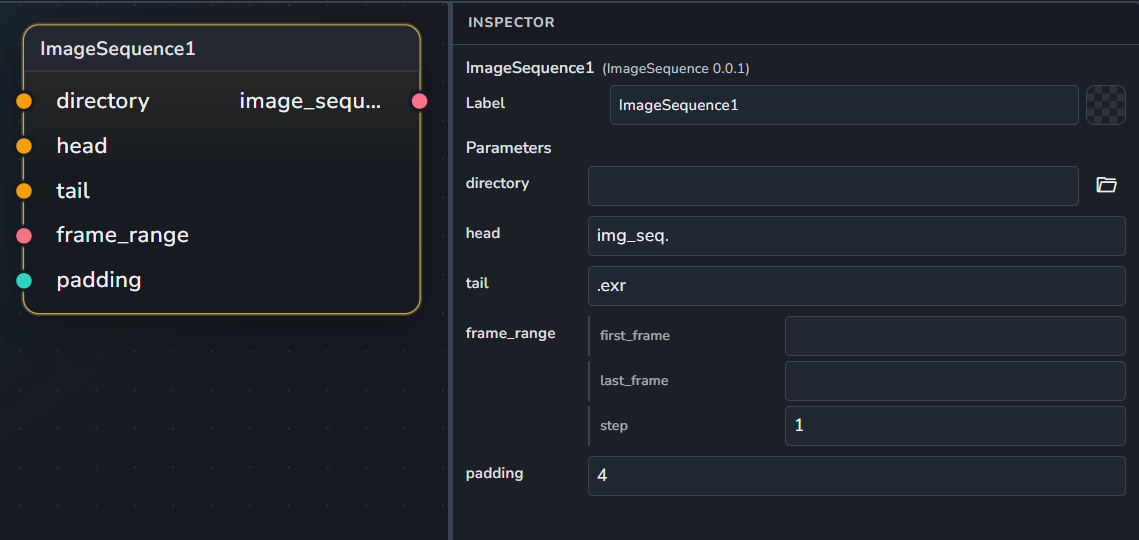

ImageSequence

Defines a path for an image sequence, whether it exists on disk yet or not.

Inputs:

  • directory: The parent directory containing the sequence.

  • head: The prefix of the sequence filename (Default: "img_seq.").

  • tail: The file extension or suffix of the sequence (Default: ".exr").

  • frame_range: The frame range for the sequence.

  • padding: The number of digits used for frame padding (Default: 4).

Outputs:

  • image_sequence: The defined image sequence.

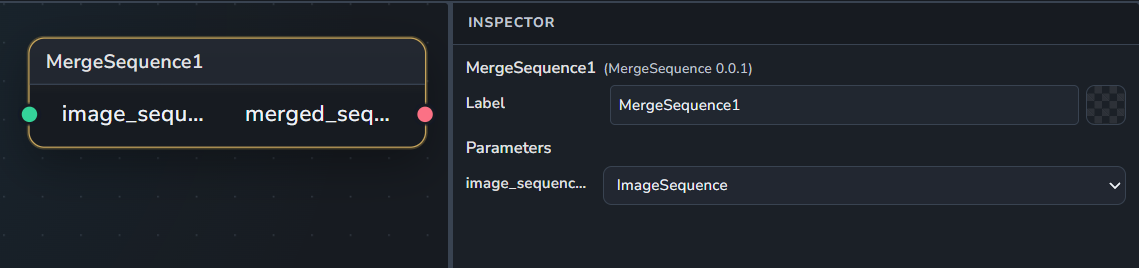

MergeSequence

Merges multiple image sequences together into a single sequence object.

Inputs:

  • image_sequences: One or more image sequences to be merged. Supports multiple connections.

Outputs:

  • merged_sequence: The resulting merged image sequence.

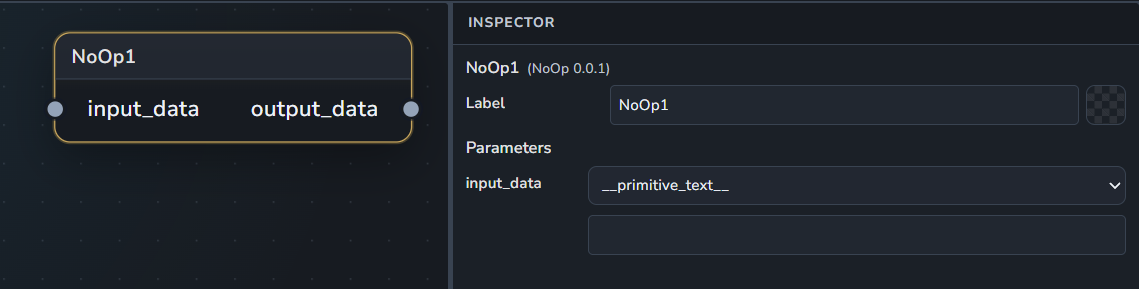

NoOp

Return the input data as-is without any modifications.

Inputs:

  • input_data: An input data of any type to be returned as-is.

Outputs:

  • output_data: The original input data.

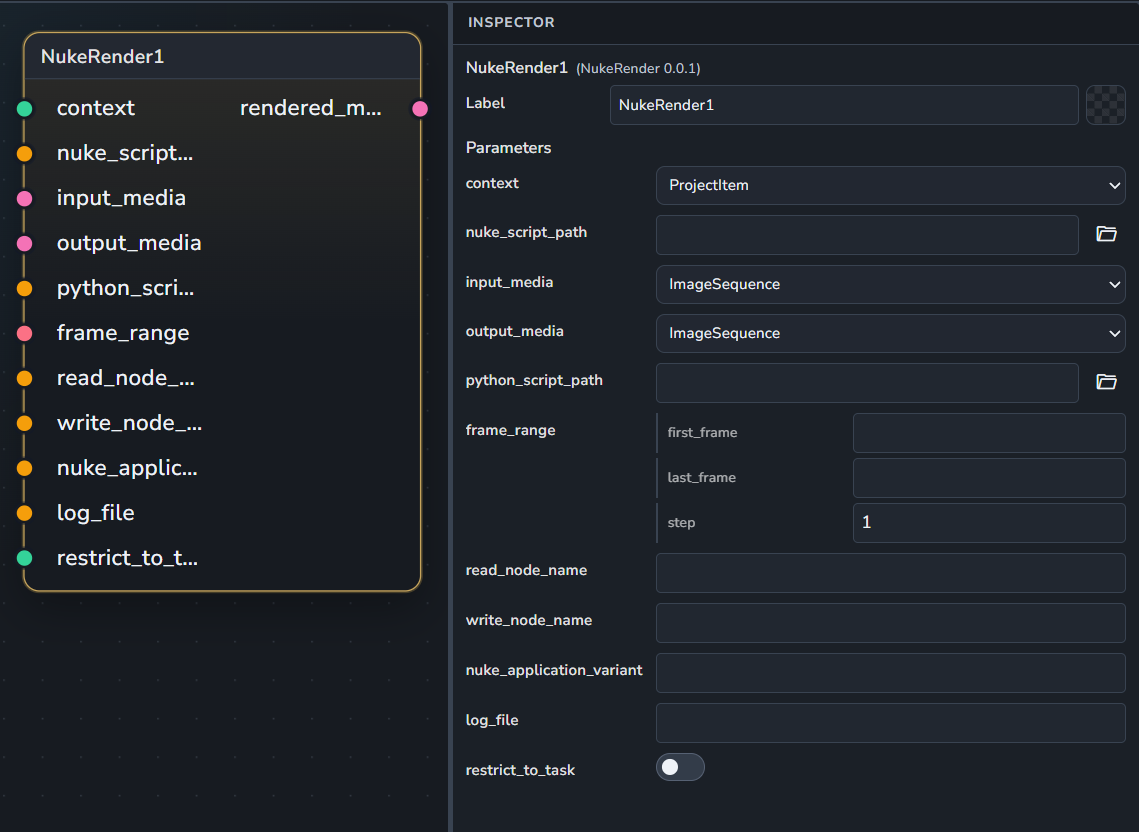

NukeRender

Performs a render operation using The Foundry's Nuke.

It’s expected that the nuke script has one read node and one write node.

Inputs:

  • context: The AYON render context.

  • nuke_script_path: The path to the .nk scene file.

  • input_media: The media to be processed.

  • output_media: The expected output media format.

  • python_script_path: Path to an optional Python script to run.

  • frame_range: Specific frame range to restrict the render to.

  • read_node_name: Explicitly specify a Read node name to use.

  • write_node_name: Explicitly specify a Write node name to use.

  • nuke_application_variant: Specific application variant/version to use.

  • log_file: Path to save the render logs.

Outputs:

  • rendered_media: The resulting rendered media.

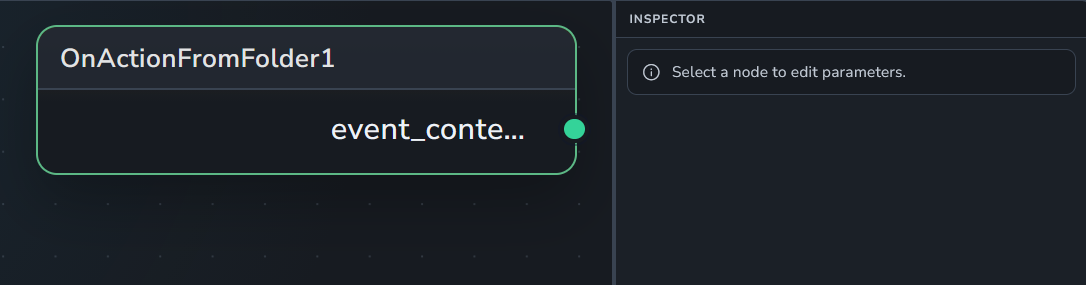

OnActionFromFolder

Trigger node: on simple action from folder.

Outputs:

  • event_context: The output event context

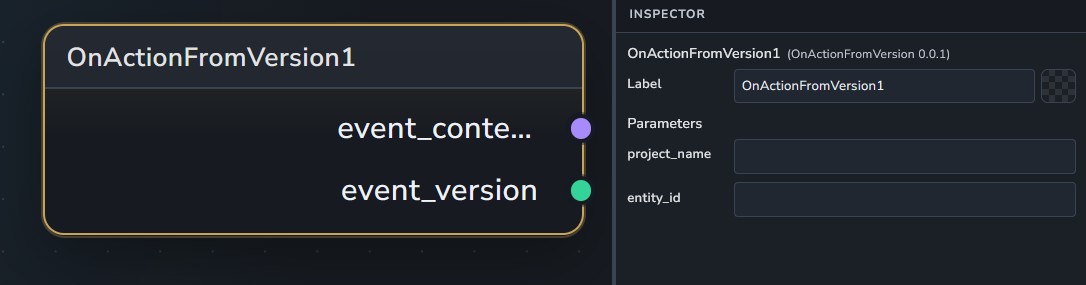

OnActionFromVersion

Trigger node: on simple action from version.

Outputs:

  • event_context: The output event context.

  • event_version_item: The output event version.

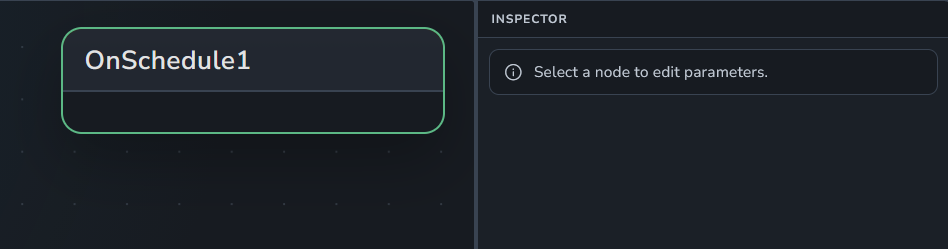

OnSchedule

A cron-based trigger input node.

Inputs:

  • cron_expression: The cron expression.

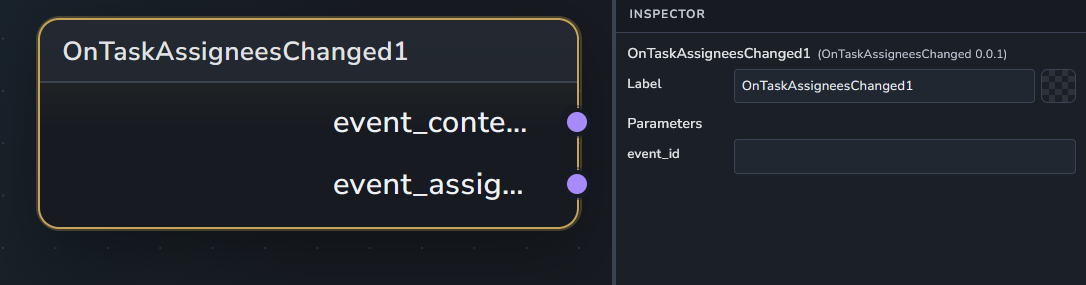

OnTaskAsigneesChanged

Trigger node: on task assignees changed.

Outputs:

  • event_context: The output event context.

  • event_version_item: The output version item.

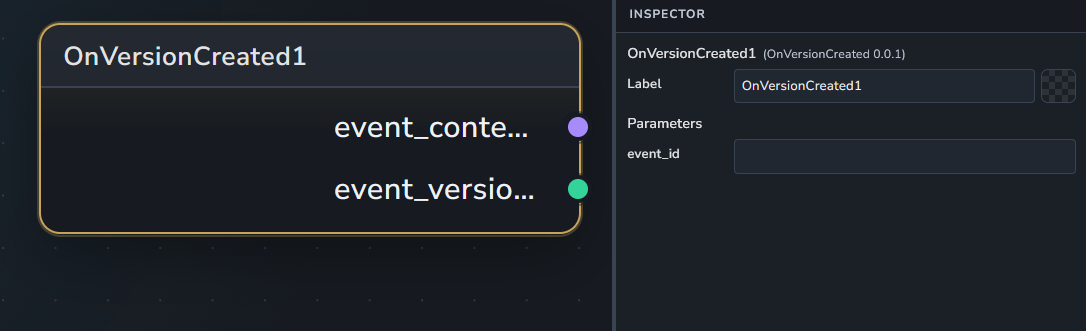

OnVersionCreated

Trigger node: on new version created.

Outputs:

  • event_context: The output event context.

  • event_version_item: The output version item.

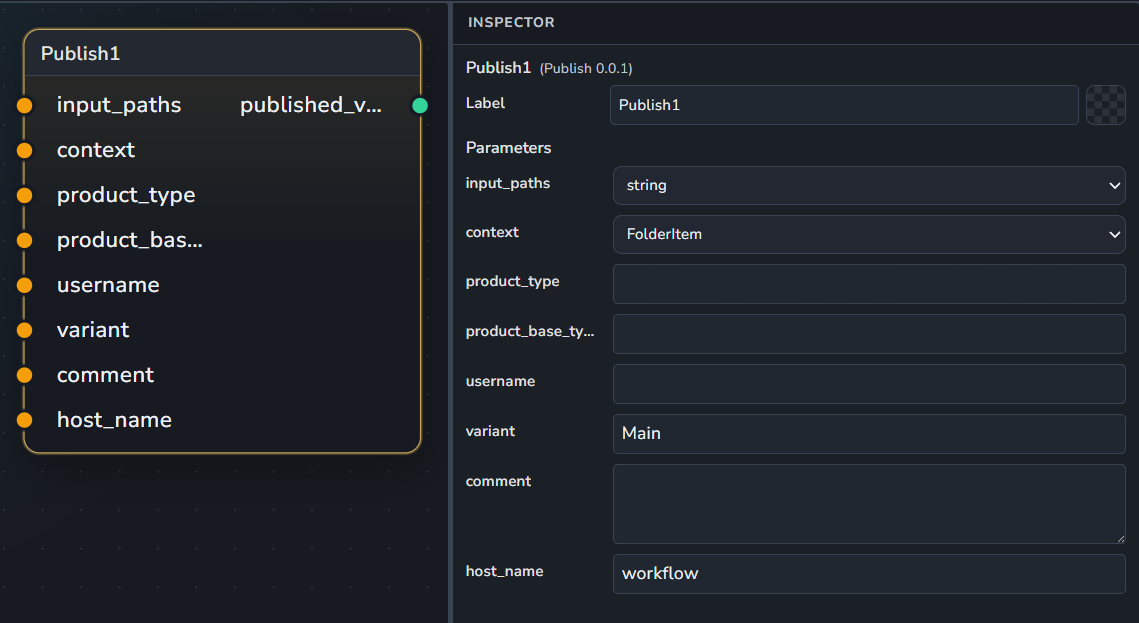

Publish

Publishes files or media into the AYON system.

Inputs:

  • input_paths: The files or media to be published. Supports multiple connections.

  • context: The AYON context where the item will be published.

  • product_type: The type of the product.

  • username: The name of the user performing the publish.

  • variant: The product variant name (Default: "Main").

  • comment: An optional description of the changes.

Outputs:

  • published_version: The resulting version item in AYON.

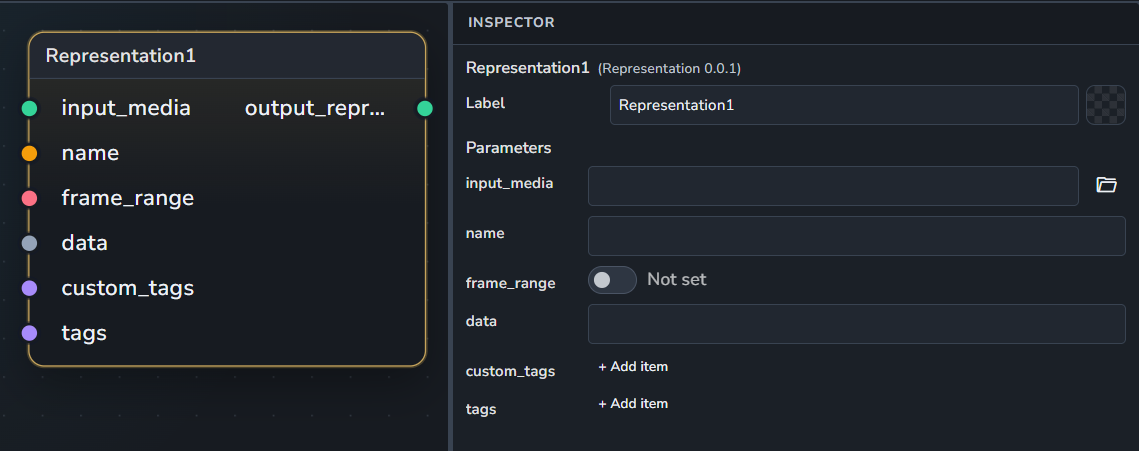

Representation

Prepare a representation for publishing.

Inputs:

  • input_media: The file path of a content to be published.

  • name: The representation name

  • frame_range: The representation frame range.

  • data: The raw representation dict data.

  • custom_tags: The representation custom tags.

  • tags: The representation tags.

Outputs:

  • output_representation

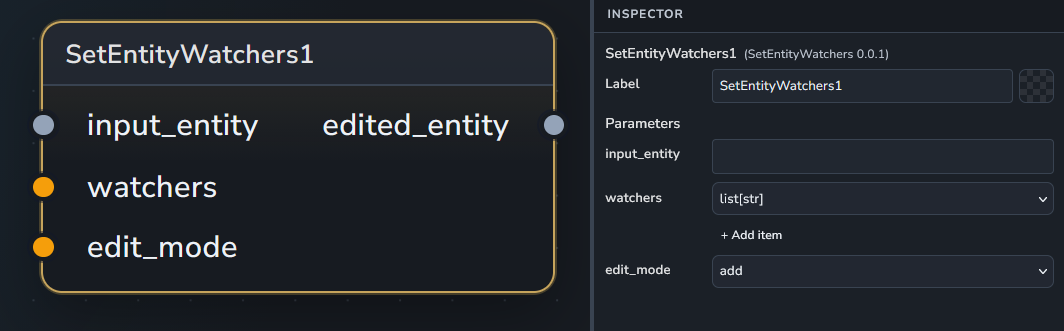

SetEntityWatchers

Set entity watcher(s) to an AYON context item.

Inputs:

  • input_entity: An AYON entity.

  • watchers: A list of watchers to set.

  • edit_mode: The mode used to edit watchers.

Outputs:

  • edited_entity: The entity with watchers set.

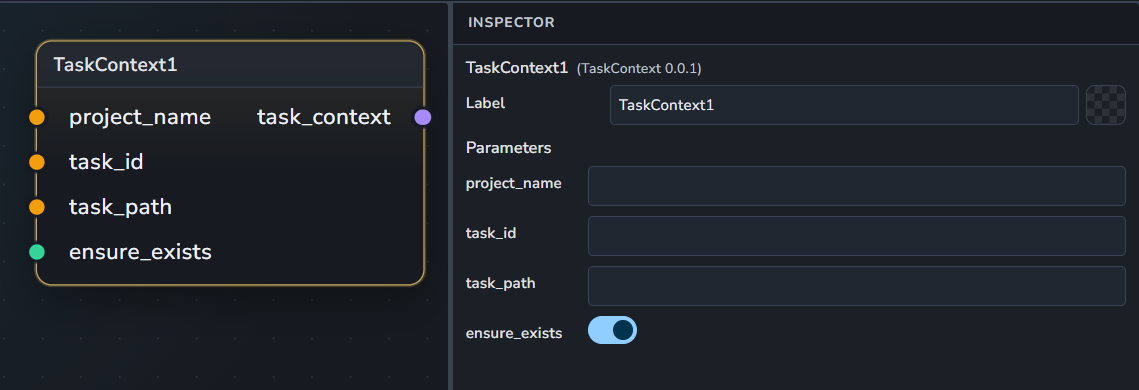

TaskContext

Gather a valid AYON task context.

Inputs:

  • project_name: The project name.

  • task_id: An optional task id.

  • task_path: An optional task path.

  • ensure_exists: Assert context existence.

Outputs:

  • task_context

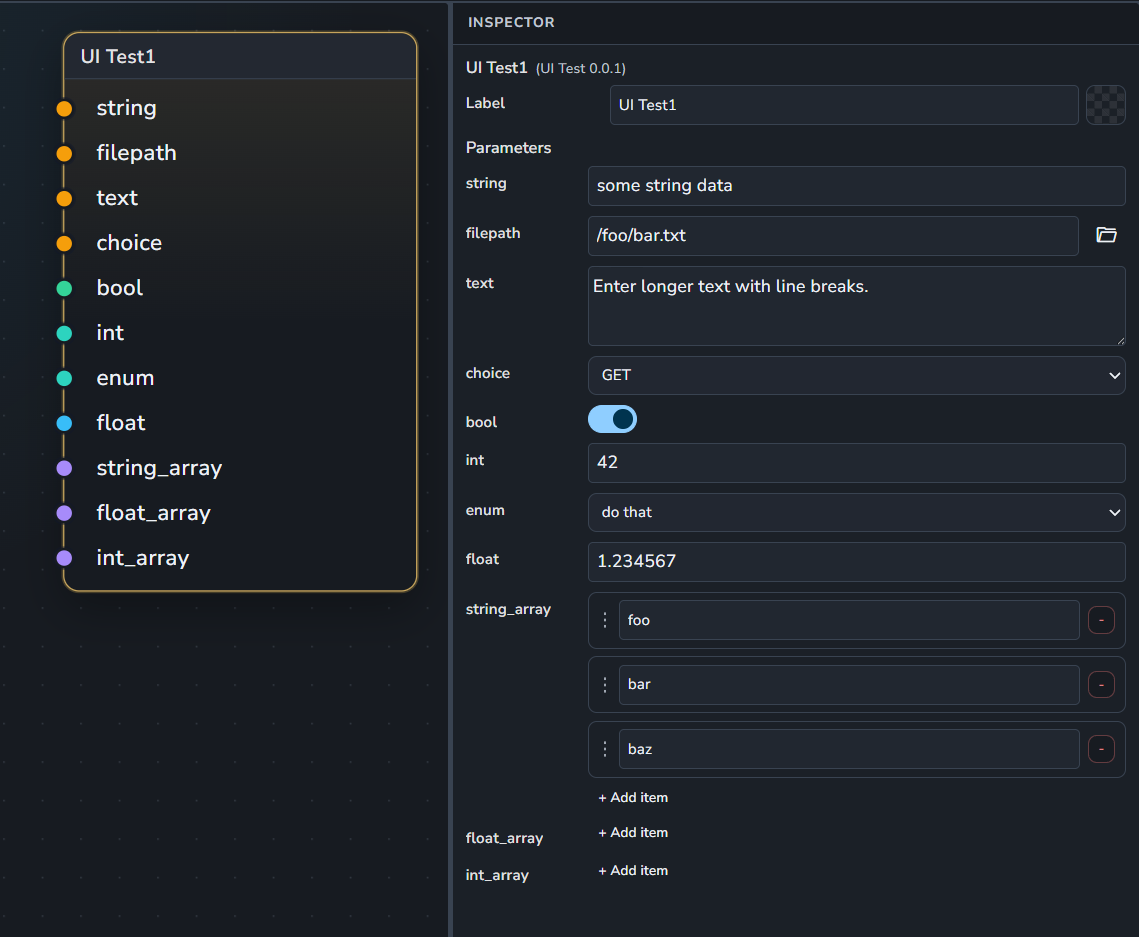

UI Test

A utility node used to display and test all supported UI widgets.

Inputs:

  • string: A basic string input.

  • filepath: A file selection widget.

  • text: A multi-line text input widget.

  • choice: A dropdown menu with preset options (GET, POST, etc.).

  • bool: A toggle/binary checkbox.

  • int: A numerical integer input.

  • enum: A selection list widget.

  • float: A decimal numerical input.

  • string_array: A list of strings.

  • float_array: A list of floats.

  • int_array: A list of integers.

Outputs:

  • None

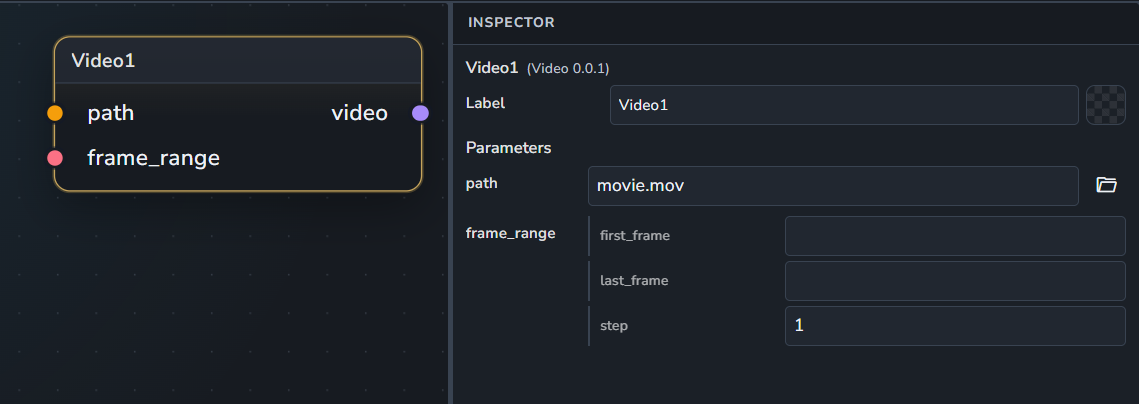

Video

Defines a path for a video file, whether it exists on disk yet or not. Inputs:

  • path: The file path to the video (Default: "movie.mov").

  • frame_range: The frame range associated with the video.

Outputs:

  • video: The defined video.

Workflow Dispatch Groups

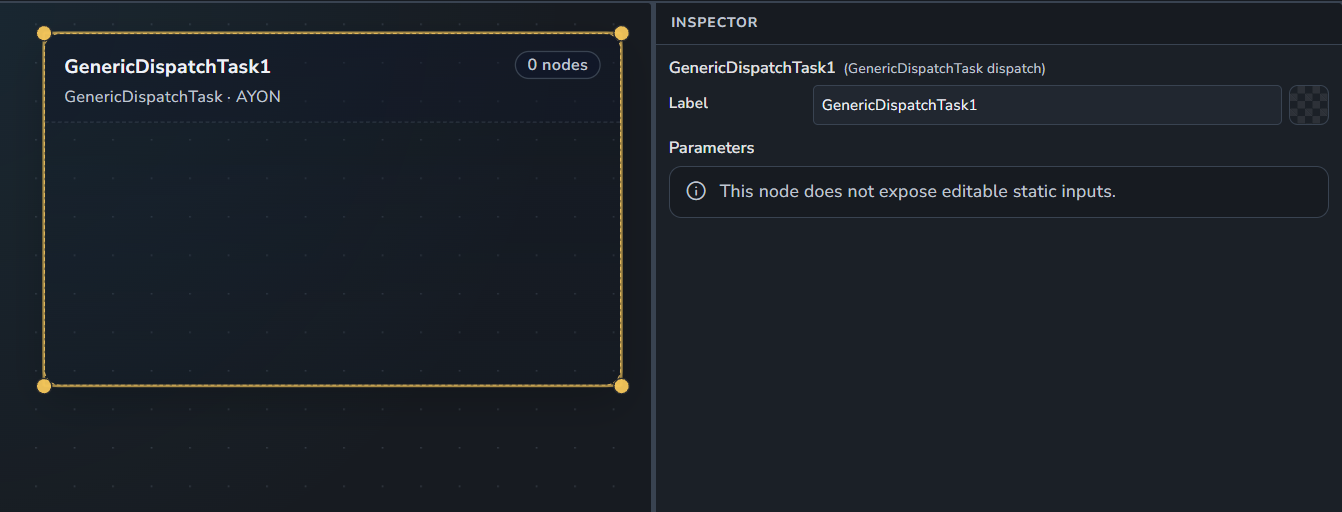

Generic Dispatch

A Generic Dispatch group dispatched to AYON.

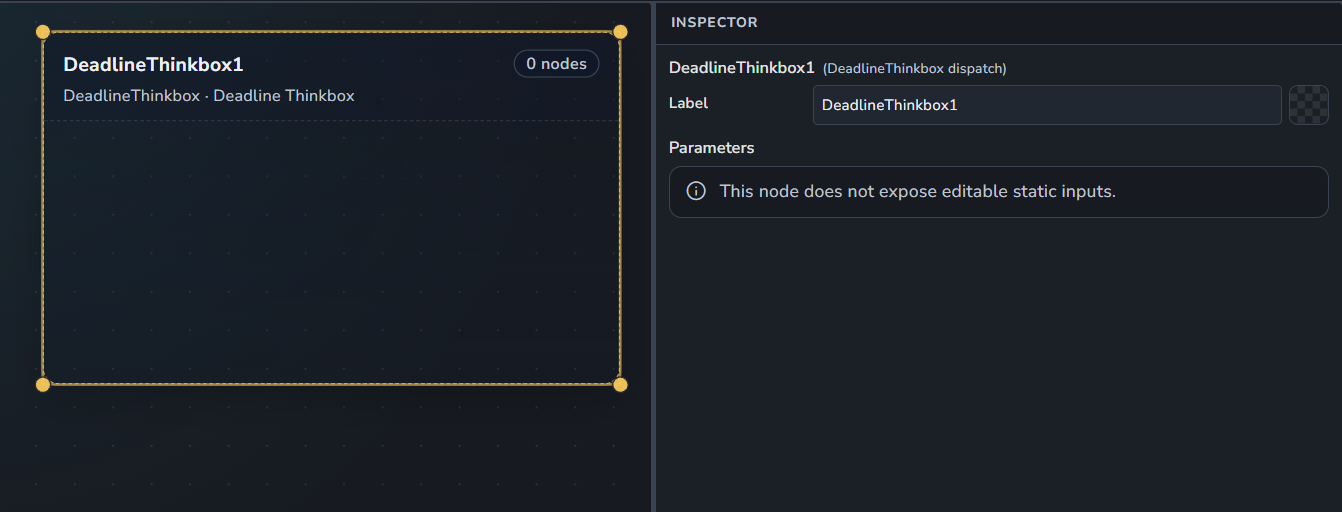

Deadline Dispatch

A Deadline Dispatch group dispatched to Thinkbox Deadline Farm.

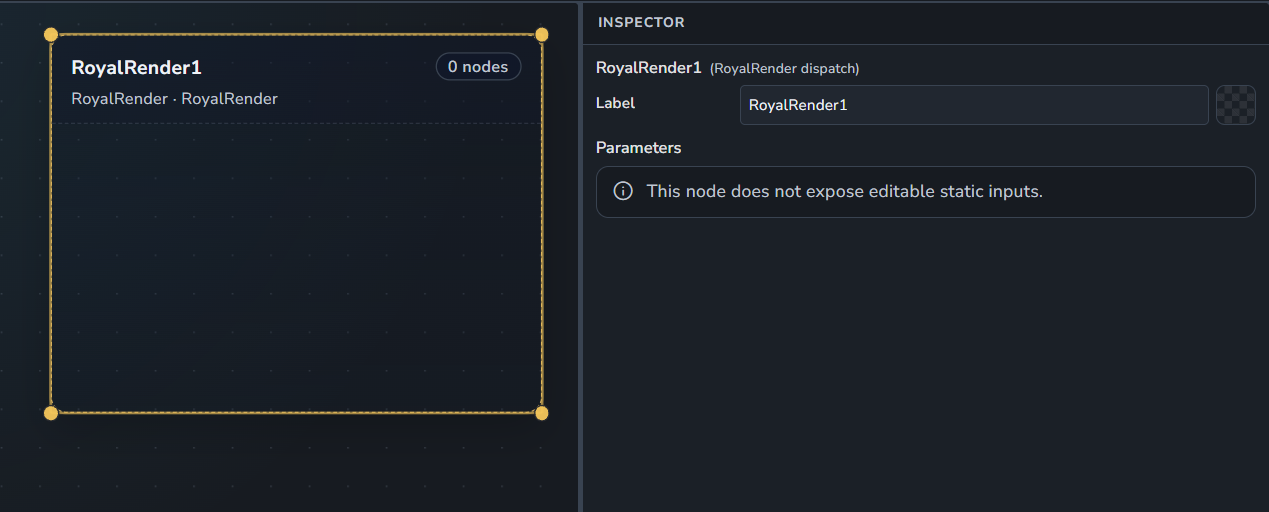

Royal Render Dispatch

A Royal Render Dispatch group dispatched to Royal Render Farm.
