Project Anatomy

Last updated 13 days ago

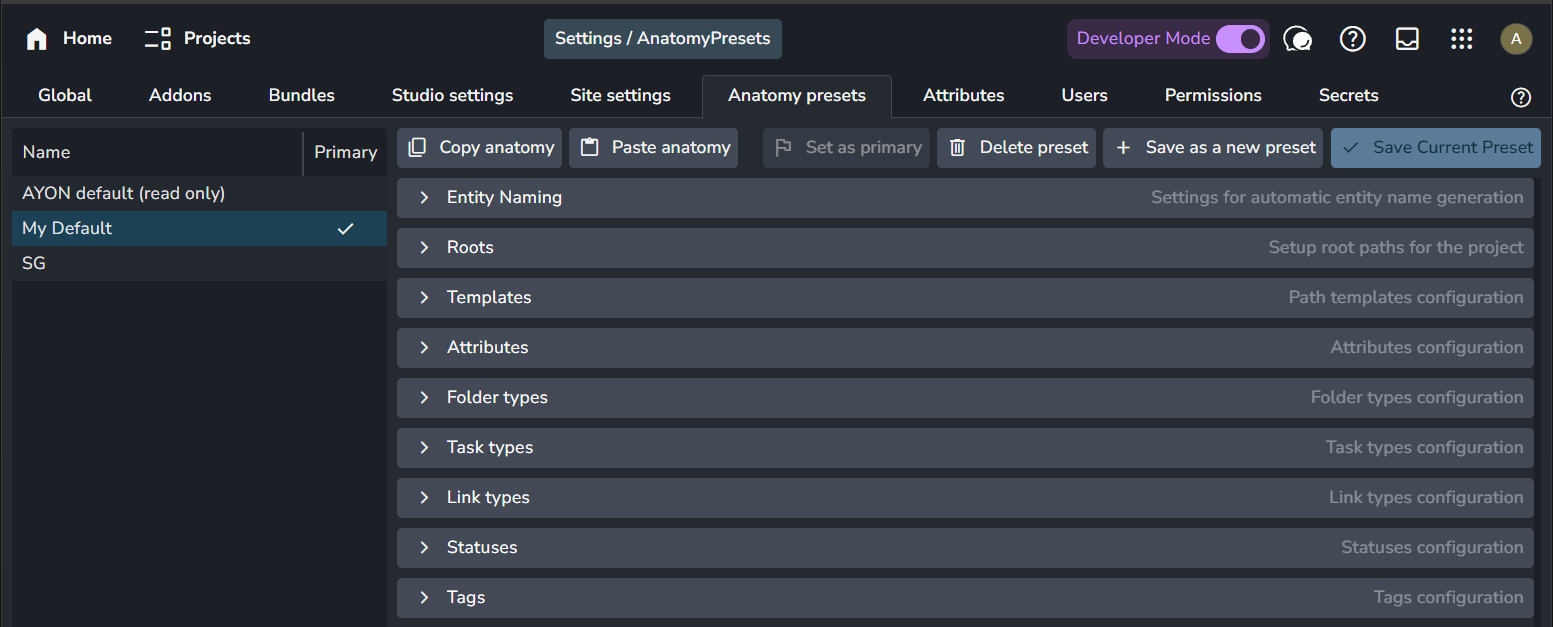

Project Anatomy is the most important configuration piece for each project you work on with AYON.

It defines:
● Project Root folder
● File naming conventions
● Folder structure templates
● Default project attributes
● Folder types
● Task types
● Statuses

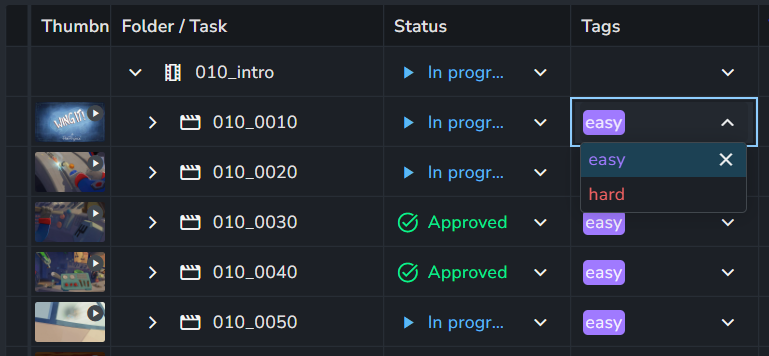

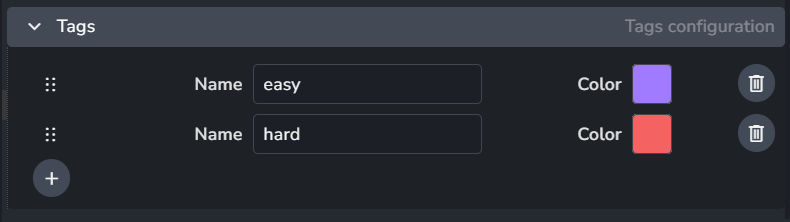

● Tags

Anatomy is the only configuration that is always saved as an project override. This is to make sure that any updates to AYON or Studio default values, don't affect currently running productions.

Roots

Roots define where files are stored with path to a shared folder. It is required to set the root path for each platform you are using in the studio. All paths must point to the same folder!

It is possible to set multiple roots when necessary. That may be handy when you need to store a specific type of data on another disk.

Note how multiple roots are used here, to push different types of files to different shared storage.

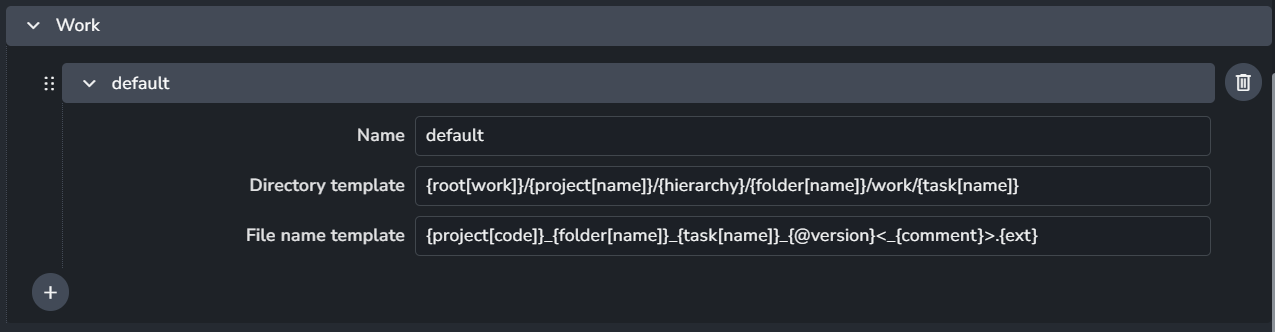

Templates

Templates define the project's folder structure and filenames.

We have a few required anatomy templates for AYON to work properly, however we keep adding more when needed.

Available template keys

Context key	Description
`root[name]`	Path to root folder
`studio[name]`	Studio's full name
`studio[code]`	Studio's code
`project[name]`	Project's full name
`project[code]`	Project's code
`folder[name]`	Name of asset or shot
`folder[type]`	Folder type
`folder[path]`	Full folder path of asset or shot within a project
`hierarchy`	The folder path excluding the folder name
`parent`	Name of hierarchical parent of the folder
`task[name]`	Name of task
`task[type]`	Type of task
`task[short]`	Short name of task type (eg. `Modeling` ➜ `mdl`)
`version`	Version number
`product[name]`	Product name
`product[type]`	Product type
`ext`	File extension
`representation`	Representation name
`frame`	Frame number for sequence files.
`app`	Application Name
`user`	User's login name (can be overridden in local settings)
`output`	Extract review output profile name
`comment`	Subversion string from workfiles tool (only relevant for workfiles template right now.)
`colorspace`	Colorspace profile name
`originalDirname`	Original directory of published file
`originalBasename`	Original file name without extension

Key	Example result	Description
`d`	1, 30	Short day of month
`dd`	01, 30	Day of month with 2 digits.
`ddd`	Mon	Shortened week day name.
`dddd`	Monday	Full week day name.
`m`	1, 12	Short month number.
`mm`	01, 12	Month number with 2 digits.
`mmm`	Jan	Shortened month name.
`mmmm`	January	Full month name.
`yy`	20	Shortened year.
`yyyy`	2020	Full year.
`H`	4, 17	Shortened 24-hour number.
`HH`	04, 17	24-hour number with 2 digits.
`h`	5	Shortened 12-hour number.
`hh`	05	12-hour number with 2 digits.
`ht`	AM, PM	Midday part.
`M`	0	Shortened minutes number.
`MM`	00	Minutes number with 2 digits.
`S`	0	Shortened seconds number.
`SS`	00	Seconds number with 2 digits.

Anatomy reference keys

Anatomy templates have the ability to use "referenced keys". Best example is path in publish or work templates which just contains references to folder and file ({@folder}/{@file}). Any changes in folder or file template are propagated to the path template. The another example is simplification of version and frame formatting with paddings. You can notice that keys {@version} or {@frame} are used in default templates. They are referencing Anatomy -> Templates -> Version or Frame which handle version and frame formatting with padding.

So if you set project_anatomy/templates/defaults/version_padding to 5 the {@version} key will be transformed to v{version:0>5} automatically and version number in paths will have 5 numbers -> v00001.

Optional keys

In some cases of template formatting not all keys are available and should be just ignored. For example {frame} should be available only for sequences but we have single publish template. To handle these cases it is possible to use special characters to mark segment of template which should be ignored, if it can't be filled because of missing keys. To mark these segments use < and >. . Template {project[code]}_{asset}_{product}<_{output}><.{@frame}>.{ext} can handle all 4 possible situations when output and frame keys are available or not. The optional segments can contain additional text, like in the example dot (.) for frame and underscore (_) for output, those are also ignored if the keys are not available. Optional segments without formatting keys are kept untouched: <br/> -> stays as <br/>. It is possible to nest optional segments inside optional segments <{asset}<.{@frame}><br/>> which may result in empty string if asset key is not available.

Attributes

New attributes can be added or modified for all projects in the studio settings /settings/attributes

Project attributes are used as default values for new folders created under a project, except Applications which is project specific. Values of attributes that are not project specific are always used from folders. So if tools are not loading as expected it is because the folders have different values.

Attribute	Description
`Applications`	List of applications that can be used in the project. At the moment used only as a possible filter of applications.
`Tools`	List of application tools. This value can be overridden per asset.

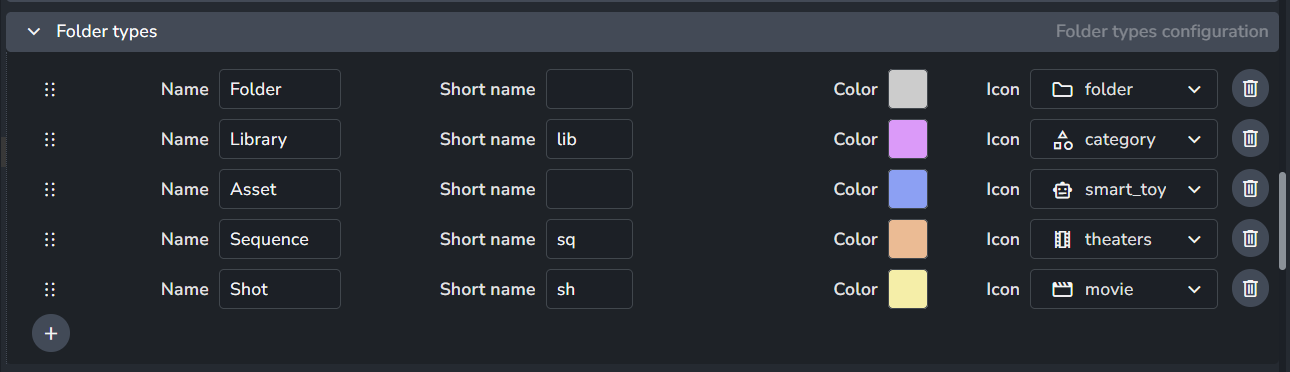

Folder Types

Templates are not supporting use of {folder[type]} yet.

Task Types

Statuses

Statuses provide a way to indicate the current state of an entity. Any entity type, such as Folder, Product, Version, Representation, Task, or Workfile, can have a status, defined within its scope. This means Folders and Tasks can share the same set of statuses, while a Version may have a completely different set. Each entity can only have one status assigned at a time.
