Reviewables

Last updated 10 days ago

Reviewables were introduced in 1.3.0.

Overview

The reviewables feature streamlines the version review process, making it both simple and powerful. Traditionally, each version could only have a single "representation" for reviewing. Reviewables revolutionize this by allowing you to create and manage as many focused review elements as needed for a single version. These reviewables can be conveniently uploaded and managed directly within the web interface.

Here are some examples of how reviewables could be utilized:

  • A model needs to be reviewed with multiple different lighting setups.

  • A complex model needs to have be viewed close up.

  • An animation needs to be viewed from multiple angles.

  • An environment needs to show different areas in more detail.

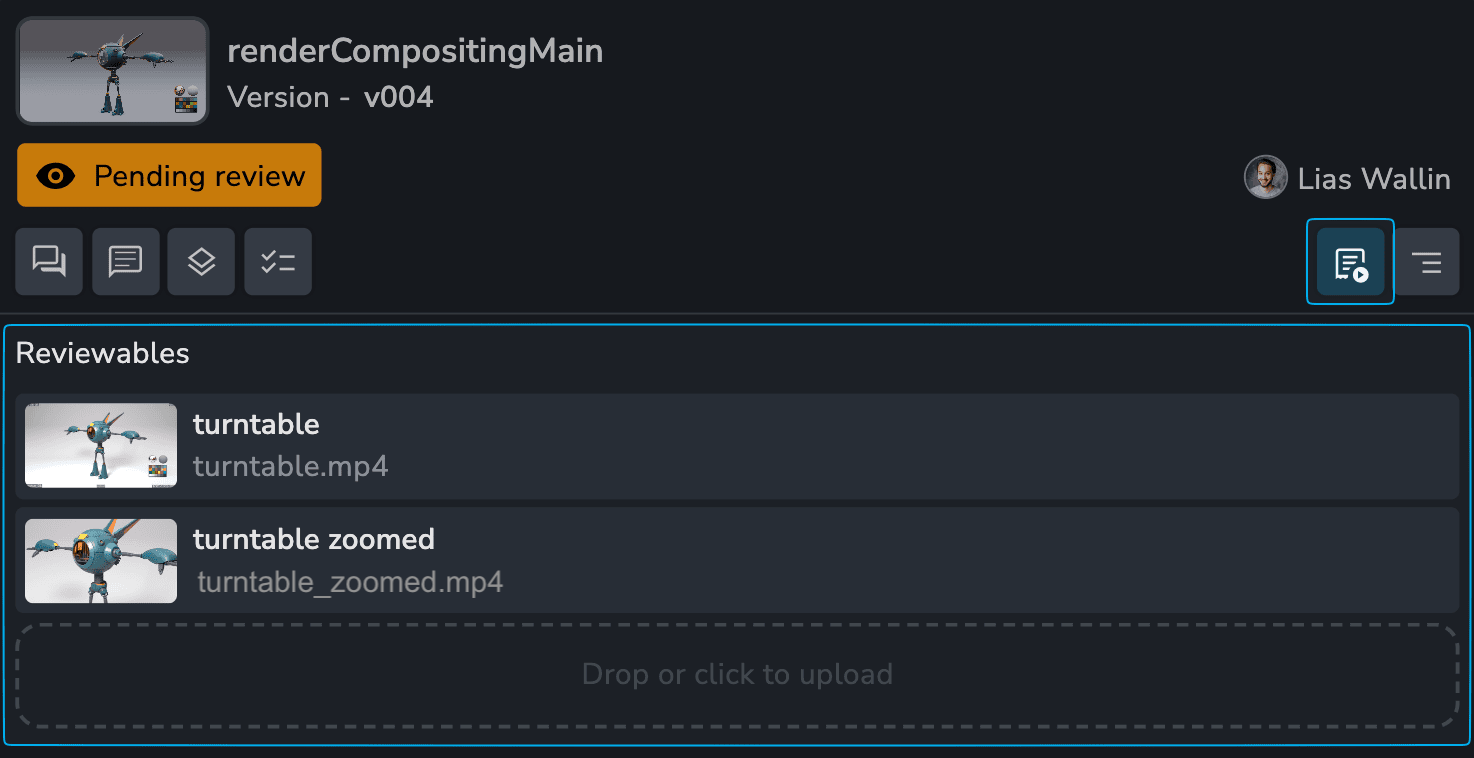

Reviewables Tab

Every version has a "Files" tab that can be used to view, manage and upload new reviewables. To upload a reviewable drag and drop a media file over the reviewables area or click the dropzone to pick a file.

Download the original, non-transcoded version reviewable video by right-clicking the file and selecting "Download Original."

Default File Support

By default the viewer supports web standard file types that don't need any conversion.

  • Image: png jpg webp

  • Video: mp4

You will see a message to let you know if a reviewable file is not viewable, however anyone with access can still download the file.

Transcoding File Support​

File types that are not natively supported by the browser need to be converted using a transcoder. The transcoder is only available through a subscription on Ynput Cloud.

  • Image: Most images types including psd files

  • Video: mp4 mov: 264, 265, prores mpeg webm wmv avi

Transcoded media will have filenames with .transcoded. in them.

Web Viewer

You can quickly view a Reviewable by using the Web Viewer. To open the viewer:

  1. Click on a reviewable

  2. Click on any entity thumbnail

  3. Press spacebar on any selection for folders, tasks and versions.

Player Controls​

The viewer comes with all the player controls you would expect and we plan to add more advanced controls in the future.

  • Play/Pause Spacebar

  • Next/Previous frame Left and Right arrows

  • Next/Previous 5 frames Shift Left and Right arrows

  • First frame Shift A

  • Last frame Shift D

  • Full screen F

  • Mute M

  • Looping

  • Grid overlay

  • Scrubbable timeline

Comparing Versions​

The viewer makes it incredibly easy to compare different versions of the same reviewable. Go to any frame and select the next or previous version. If there's a matching reviewable it will be displayed on the same frame.

We recommend using the two main shortcuts A - previous version and D - next version to quickly flick back and forth between versions.

Comparing Reviewables​

Reviewables with the same label across versions will be synced allowing for comparison of two reviewables from different versions.
