Data Import

Last updated About 2 hours ago

The Data Importing feature allows you to bulk-create or update project entities using CSV or TSV data. It is designed to be artist-friendly and flexible, allowing you to map data from external sources (like ftrack or Excel) even if the formatting doesn't perfectly match AYON's internal structure.

Currently, you can import data into three primary areas:

  1. Folders and Tasks (imported together to build hierarchies).

  2. Lists.

  3. Users.

Step-by-Step Guide

Step 1: Initialize the Import

Navigate to the page where you wish to add data (e.g., the Overview page for folders or the Users tab for team management). Click the Import CSV button located in the top-right corner.

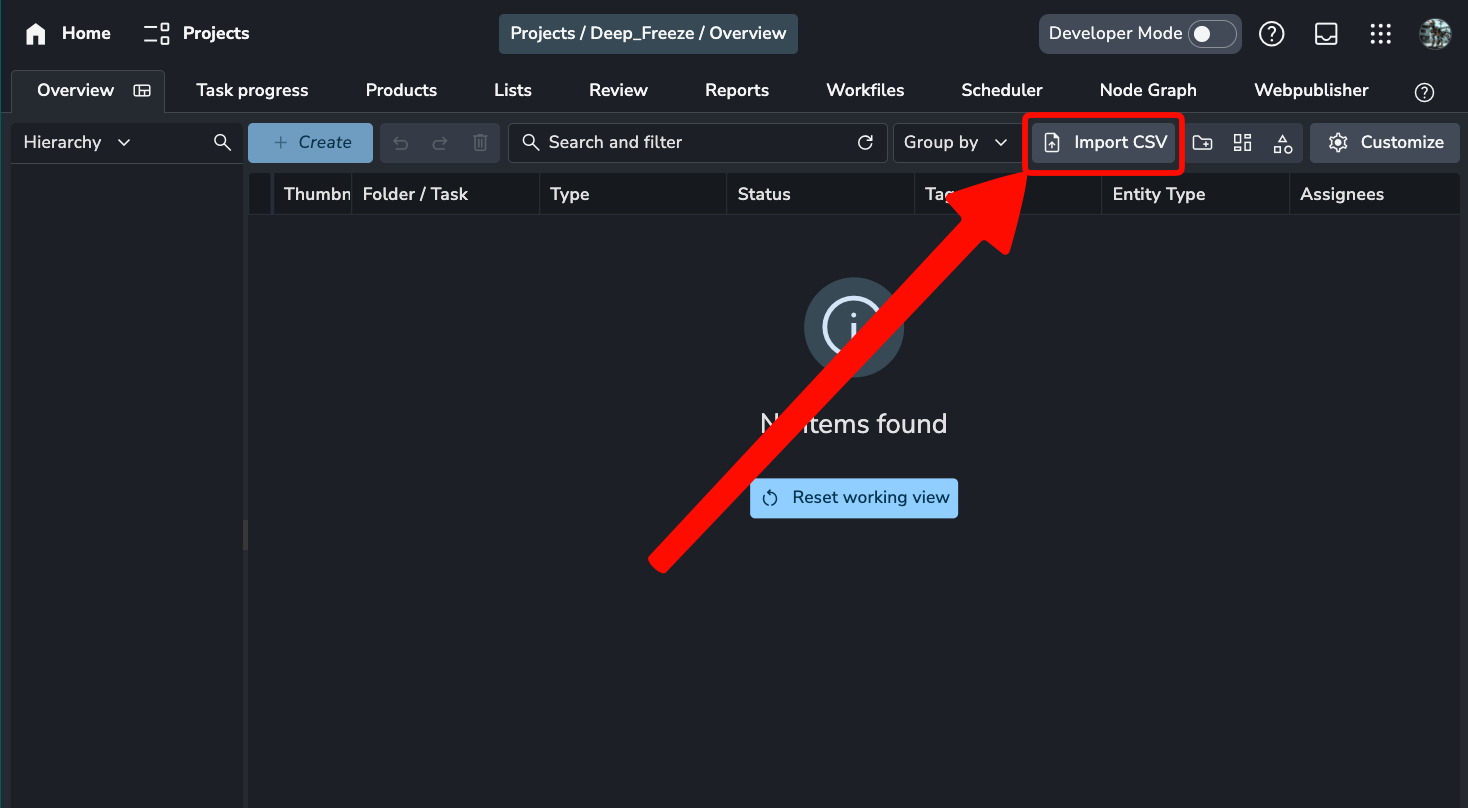

AYON Project Overview page interface featuring a red arrow pointing to the "Import CSV" button in the top-right toolbar next to the "Customize" and "View" icons.
Location of the Import CSV button in the Project Overview

Step 2: Input Your Data

You have three ways to provide your data:

  • Upload: Drop a .csv file directly into the panel.

  • Paste: Copy cells from a spreadsheet (Google Sheets/Excel) and press Cmd/Ctrl + V to paste them in.

  • Templates: If you want a perfectly formatted file, click Download Template to see exactly which columns AYON expects. This is the fastest way to ensure compatibility.

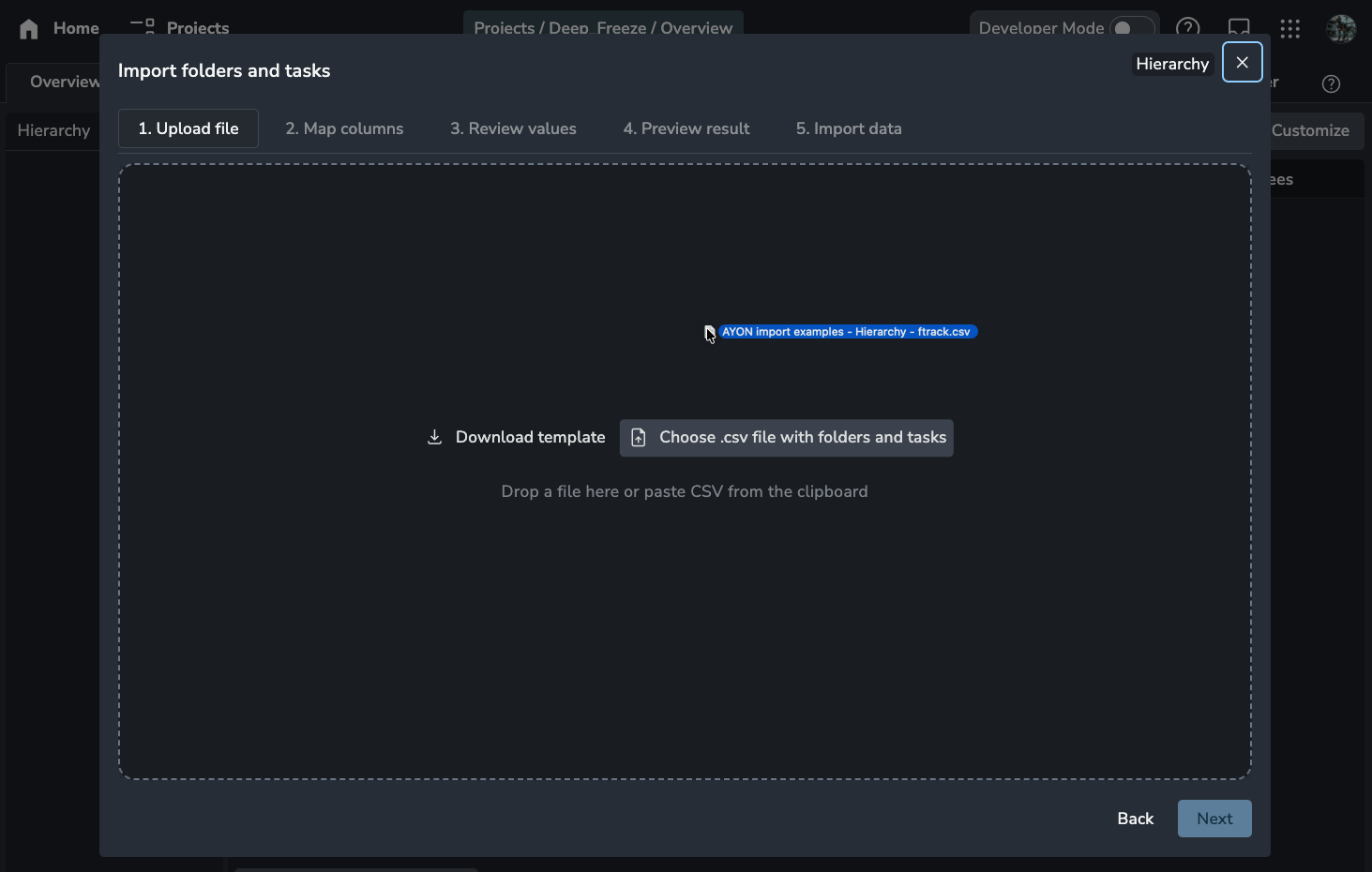

AYON CSV Import modal Step 1 "Upload file" showing a central drop zone with buttons for "Download template" and "Choose .csv file with folders and tasks" and a cursor dragging a CSV file named "AYON import examples - Hierarchy - ftrack.csv".
Uploading a CSV file with drag and drop

Step 3: Map Columns

AYON will detect the rows and columns in your data. You must now tell the system which of your columns match AYON's required fields.

  • Auto-Mapping: If your column header matches an AYON field name (e.g., "Path"), a green indicator will appear, and the mapping is created automatically.

  • Manual Mapping: Columns with a red indicator require your attention. For example, you might map an ftrack "Object Type" to the AYON Entity Type. Or “Done state” to AYON Status.

  • Skipping Data: If a column isn't useful (like an internal database ID from another software), set it to Skip. It will be ignored during the import.

  • Data Preview: Hover over any row in the mapping screen to see a live preview of the data in that column.

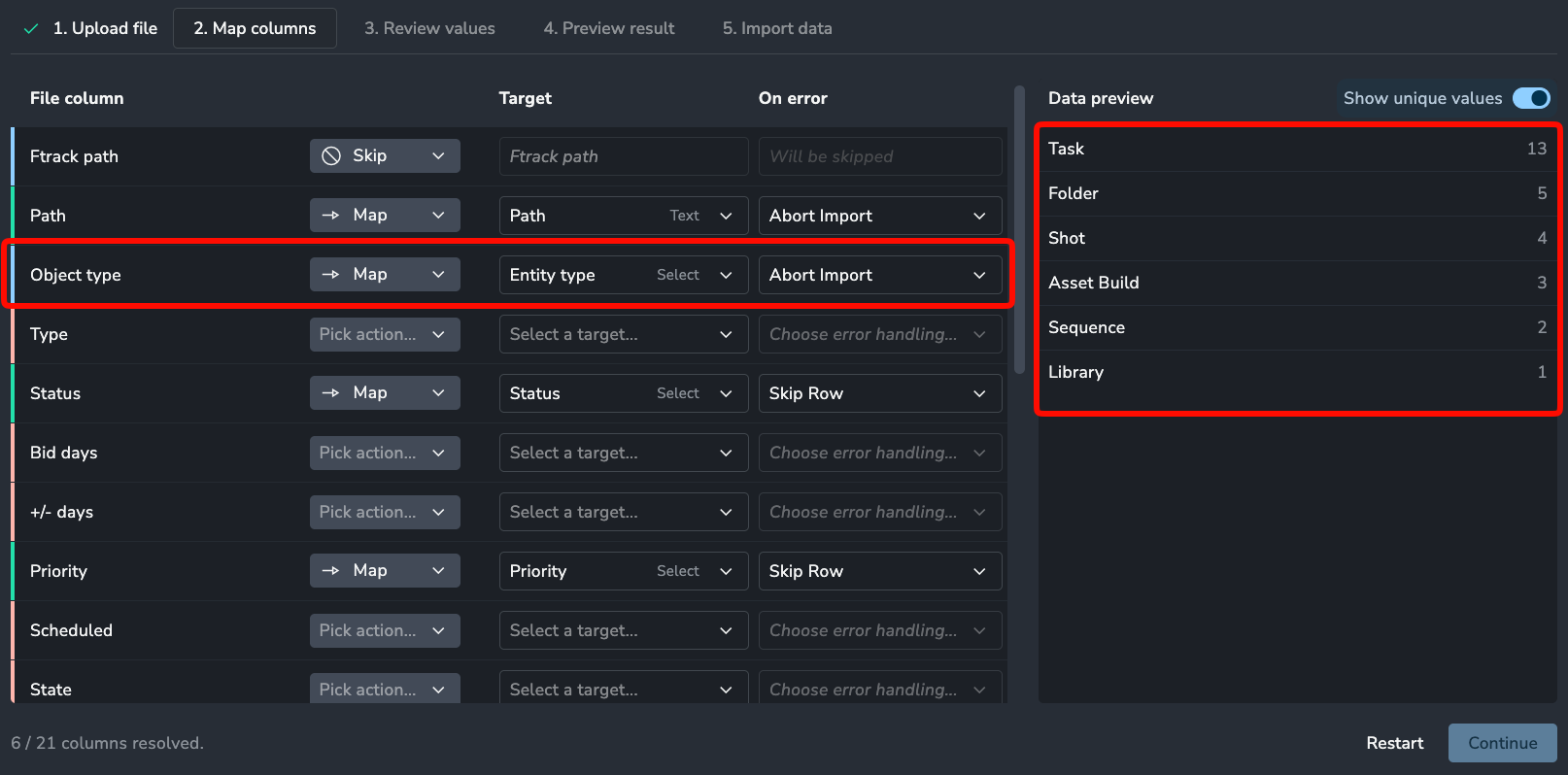

AYON CSV Import modal Step 2 "Map columns" showing a mapping table where "File column" is matched to "Target" fields. A red highlight box emphasizes the "Object type" row being mapped to "Entity type" with "Abort Import" error handling, and another red box on the right shows a "Data preview" sidebar listing unique values like Task, Folder, Shot, and Asset Build.
Mapping CSV columns to AYON entity types

Step 4: Review Values

Once columns are mapped, you must resolve specific values. If your source data uses "Shot" but AYON uses "shot_folder," you need to bridge that gap.

  • Map to Existing: Point a source value to a value already in your AYON project (e.g., map "Medium" priority to "Normal").

  • Create New: If a value (like a specific Task Status) doesn't exist yet, you can set it to Create. AYON will add that status to your project during the import.

  • Skip Values: You can choose to ignore specific rows that contain values you don't want to import.

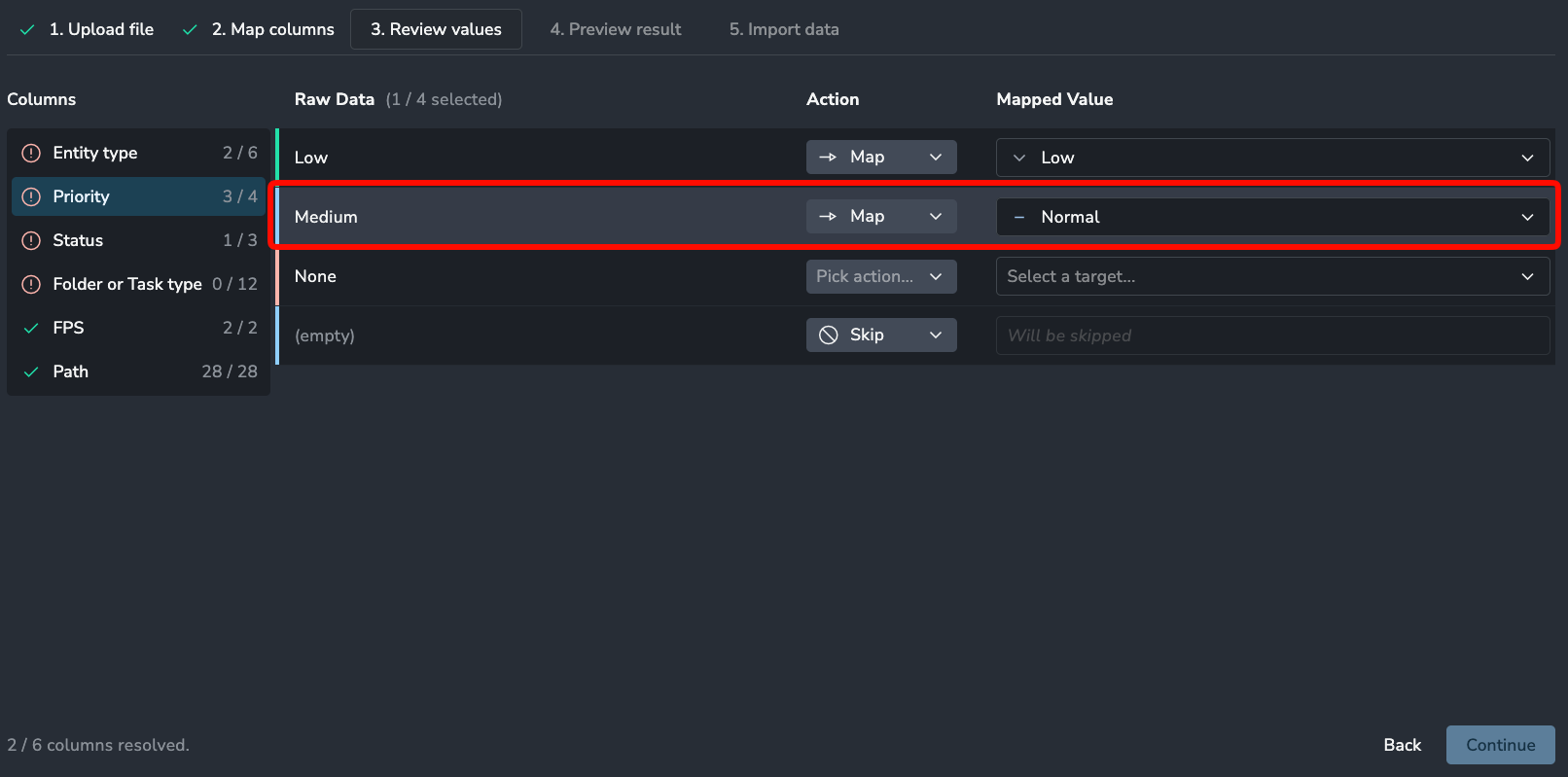

AYON CSV Import modal Step 3 "Review values" for the "Priority" column. A red highlight box shows a row where the raw data value "Medium" is being manually mapped to the AYON target value "Normal" using a dropdown menu.
Resolving and remapping source values to AYON defaults

Step 5: Preview and Confirm

Before any changes are written to the database, AYON provides a Summary Preview. It will tell you:

  • Created: How many new folders, tasks, or users will be added.

  • Updated: If a row matches an existing entity (by Path or ID), AYON will update its attributes instead of creating a duplicate.

  • Errors: Any rows with incompatible data types that will fail to import.

If everything looks correct, click Import Data.

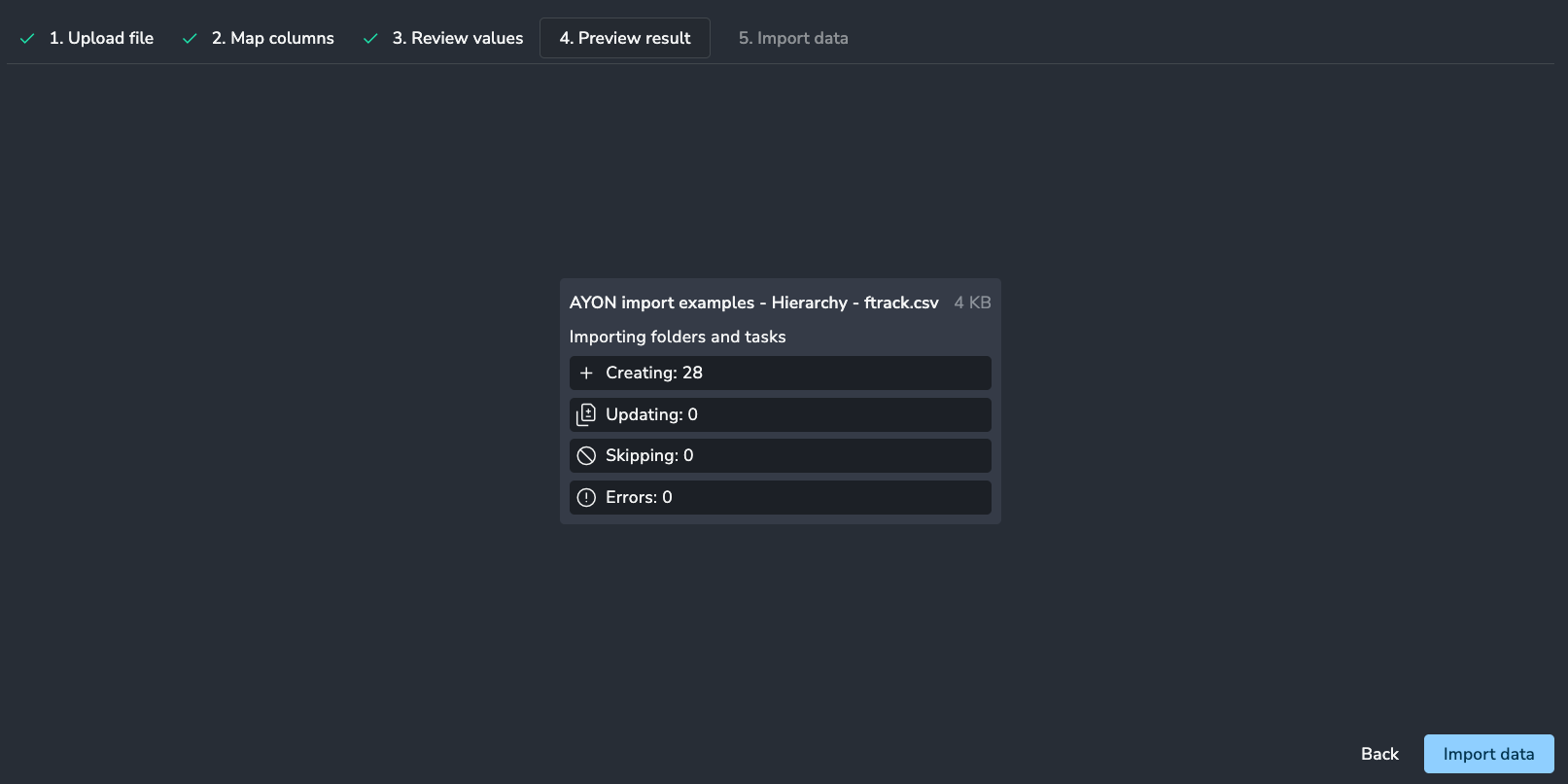

AYON CSV Import modal Step 4 "Preview result" displaying a summary card for "AYON import examples - Hierarchy - ftrack.csv" showing 28 items to be created, 0 updates, 0 skips, and 0 errors, with an "Import data" button in the bottom right corner.
Final import summary before confirming data ingestion

⚡ Import Presets (Power Feature)

Access to Import Presets requires a Pro or Studio subscription.

If you frequently import data from the same source (such as a weekly vendor delivery or an ftrack export), you can save your column and value mappings as a Preset.

  • Scope: Presets can be saved for a single project or made available across the entire studio.

  • Access: You can keep presets private or share them with the rest of your team to standardize the ingestion workflow.

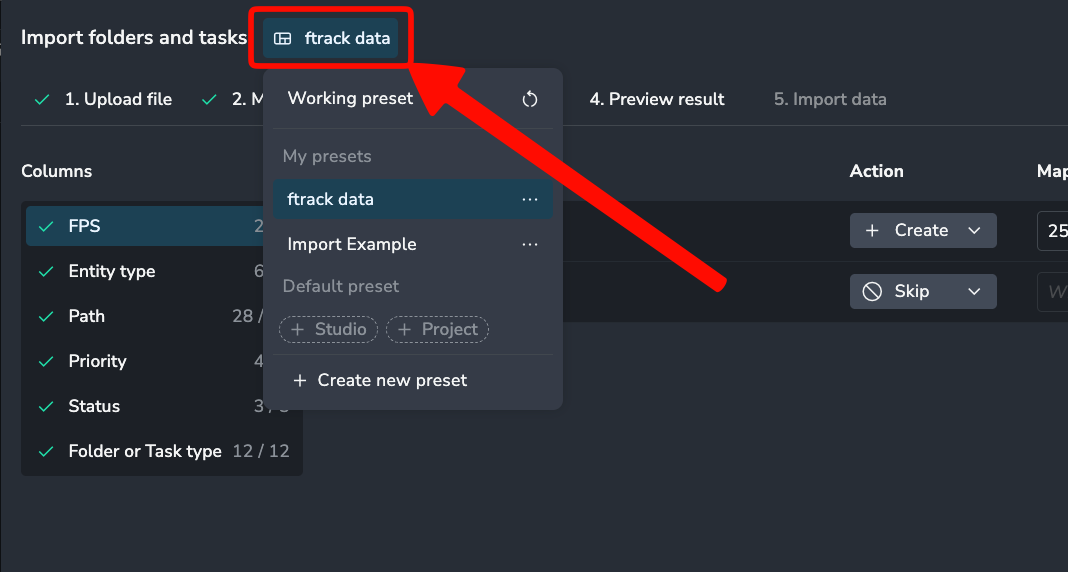

AYON CSV Import preset management interface showing a red arrow pointing to the "ftrack data" preset selector button at the top. The open dropdown menu displays "Working preset", a "My presets" list containing "ftrack data" and "Import Example", and "Default preset" options for Studio and Project scopes, with a "Create new preset" action at the bottom.
Saving and managing CSV import presets for studio or project-wide use

Technical Notes

  • Required Fields:

    • Folders & Tasks: Requires Path and Entity Type.

    • Lists: Requires either Entity ID or Folder Path.

    • Users: Requires Name. Optional fields include Email and Full Name.

  • Update Logic: AYON uses a "Match and Update" strategy. If the importer finds an existing entity that matches your data, it will update that entity's attributes rather than creating a new one, preventing project bloat.

  • Subtypes: When importing Folder or Task types, you can provide them in two separate columns or as a single "Subtype" column that AYON will parse during the import.
