AYON OpenUSD Resolver

Last updated About 10 hours ago

What is the AYON USD Resolver?​

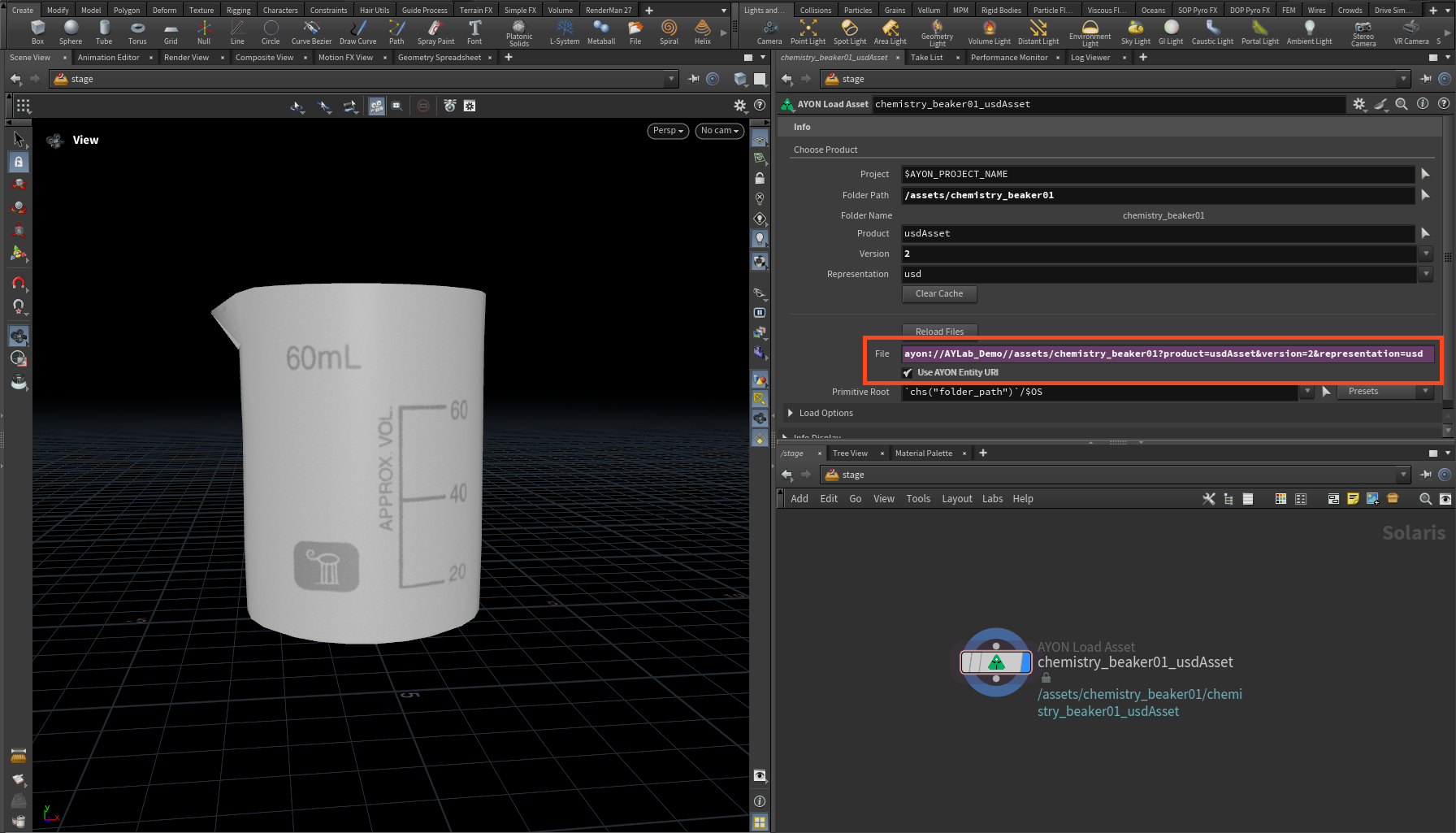

AYON Entity URI used to load products in Houdini without the need to know the file path.

The AYON USD Resolver is a USD plugin that translates AYON Entity URIs into physical filepaths at runtime. This allows USD files to dynamically "point" to specific versions without needing to update the internal paths manually.

Common use cases include:

  • Always Latest:

    ayon://AYLab_Demo/assets/chemistry_beaker01?product=usdAsset&version=latest&representation=usd

  • Hero Versions:

    ayon://AYLab_Demo/assets/chemistry_beaker01?product=usdAsset&version=hero&representation=usd

This ensures your USD Assets and Shots are always up to date, letting the resolver handle the heavy lifting of path translation.

AYON Entity URI Structure

AYON uses Entity URIs for quick redirection and navigation. While they can point to tasks or folders, OpenUSD is primarily concerned with Representations.

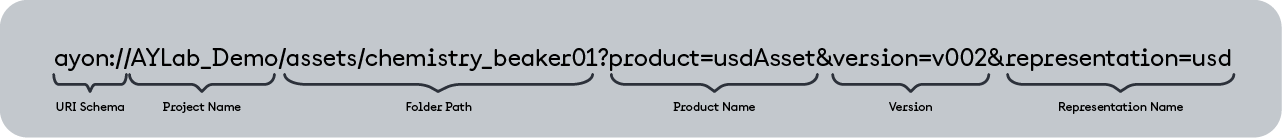

AYON Representation Entity URI structure

Format:

ayon://{project_name}/{folder_path}?product={product_name}&version={version_number}&representation={representation_name}

  • ayon://: The URI Scheme (also supports ayon+entity:).

  • project_name: Case-insensitive project name.

  • folder_path: Hierarchy path within the project.

  • product_name: Name of the published product.

  • version_number: Can be an integer (4), a padded string (v004), or a keyword (latest or hero).

  • representation_name: The extension or representation (e.g., usd, abc, exr).

Enabling the Resolver

To enable the AYON USD Resolver, configure the following in your OpenUSD Addon Settings:

  1. Binary Distribution: Enable this to allow AYON to download the prebuilt binaries automatically.

  2. LakeFS Credentials: Set your access keys (contact your Admin or Ynput support to receive these).

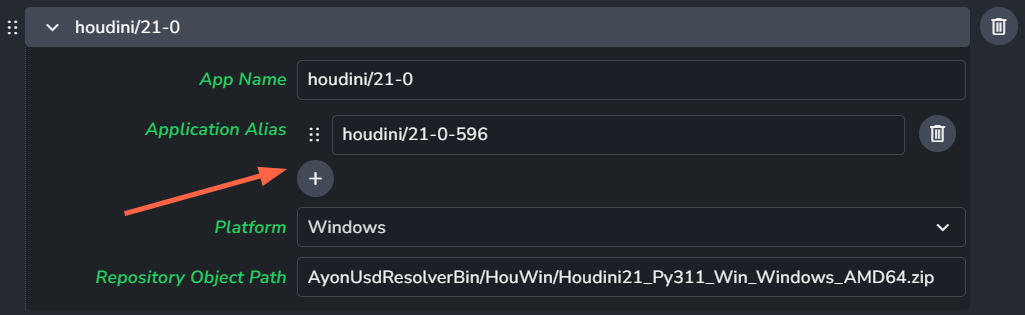

  3. Application Paths: Map the resolver paths to your specific DCC variant names.

Farm Rendering

The AYON USD Resolver supports farm rendering. Recent builds for Houdini 21 and Maya 2026 include important bug fixes for initializing the resolver on Deadline farm render jobs.

When the resolver initializes correctly on the farm, you'll see log lines indicating the USD asset resolver is active for the application:

Example
2026-02-12 17:41:47: 0: STDOUT: >>> [ Initializing USD asset resolver for application: houdini/21 ]

USD Resolver: Resolution & Mapping

The AYON USD Resolver manages the resolution of Entity URIs within your DCC. You can control how these URIs are resolved using different strategies and override mappings.

Resolution Strategies

The resolver operates in one of two states to determine how it communicates with the AYON server:

1. Live Mode (Default)

In Live Mode, the resolver actively queries the AYON server for every URI it encounters. This is the standard behavior initialized automatically when launching applications through AYON. For absolute or relative file paths, the resolver delegates the resolution to the default USD resolver.

2. Pinning Mode

Automated pinning currently only supports USD renders in Houdini.

Pinning Mode is a static resolution strategy. Instead of querying the server, the resolver uses a "pinning file"(essentially a phone book) that maps specific Entity URIs to fixed file paths. This bypasses server requests, significantly improving performance in environments where asset stability is preferred over live-server updates.

Key Benefits:

  • Performance: Prevents overwhelming the AYON server. Without pinning, hundreds of farm workers might generate thousands of simultaneous queries; pinning reduces this to zero server communication during the render.

  • Stability and Consistency: Pinning "freezes" the Entity URI to a specific physical path. This ensures every farm worker uses the exact same file versions throughout processing the render deadline job.

    This is vital when using "latest" or "hero" version keywords. The pinning file captures what "latest" was at the moment of submission, preventing a new publish from changing the versions mid-render and causing visual inconsistencies.

  • Emergency Retargeting: Allows you to redirect a URI to a different version without ever opening or modifying the source USD file.

    Example: If a render fails because v005 is discovered to be broken, you can simply update the pinning file to retarget those URIs to v003. The farm will immediately begin pulling the working version.

Automated Pinning on Farm

By default, pinning mode is activated by enabling the “Generate USD Resolver Pinning file on publish” setting in the AYON USD Addon Settings. When this is active:

  • Automatic Generation: Houdini generates a __render___pin.json file during the publish process.

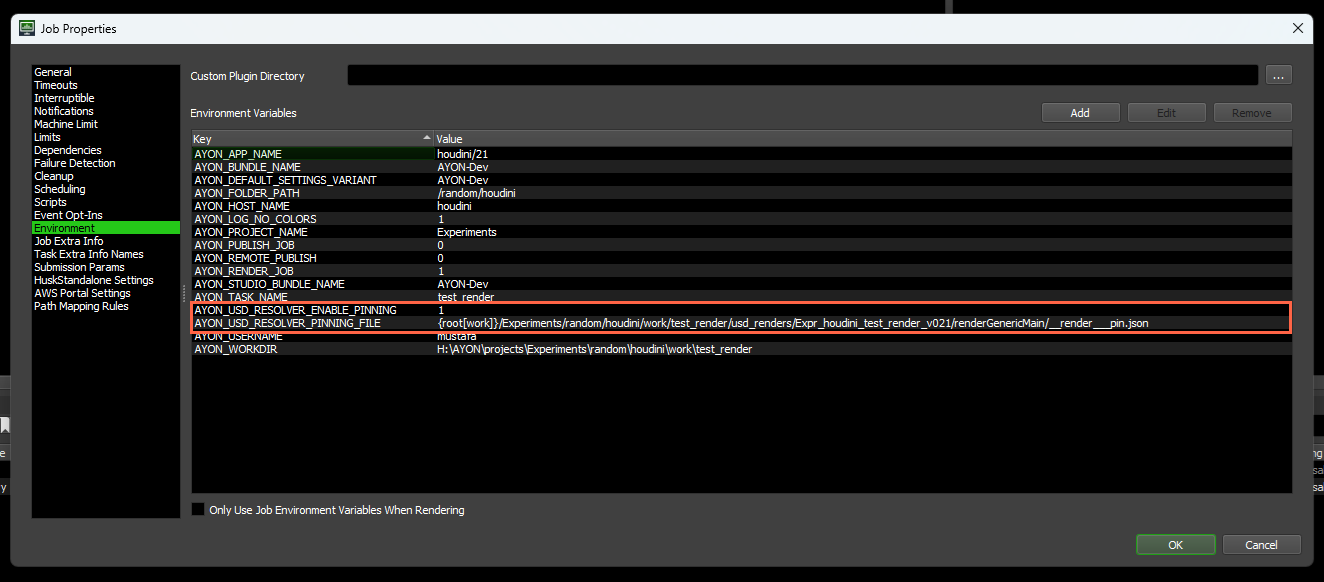

  • Job Injection: AYON automatically injects the necessary environment variables (ENABLE_STATIC_GLOBAL_CACHE and PINNING_FILE_PATH) into the Deadline job.

environment variables (ENABLE_STATIC_GLOBAL_CACHE and PINNING_FILE_PATH) injected into the Deadline job.

Manual Pinning (Debugging/Testing)

Manual debugging is useful for verifying that the resolver is correctly mapping paths or for testing retargeting. This requires an existing pinning file generated from a previous publish.

To test pinning mode locally on your workstation:

  1. Locate the Pinning File:

    • Publish a USD render in Houdini. In the Details tab, find "Extract Skeleton Pinning JSON" to get the path to the __render___pin.json.

    • Alternatively, get the __render___pin.json path from the deadline job you have previously submitted.

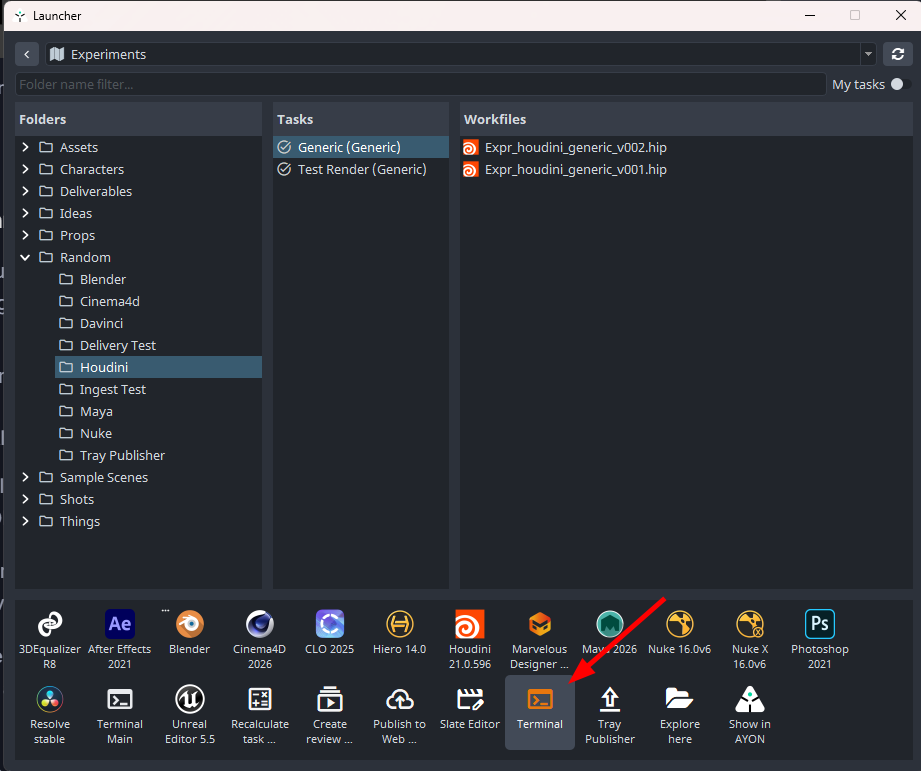

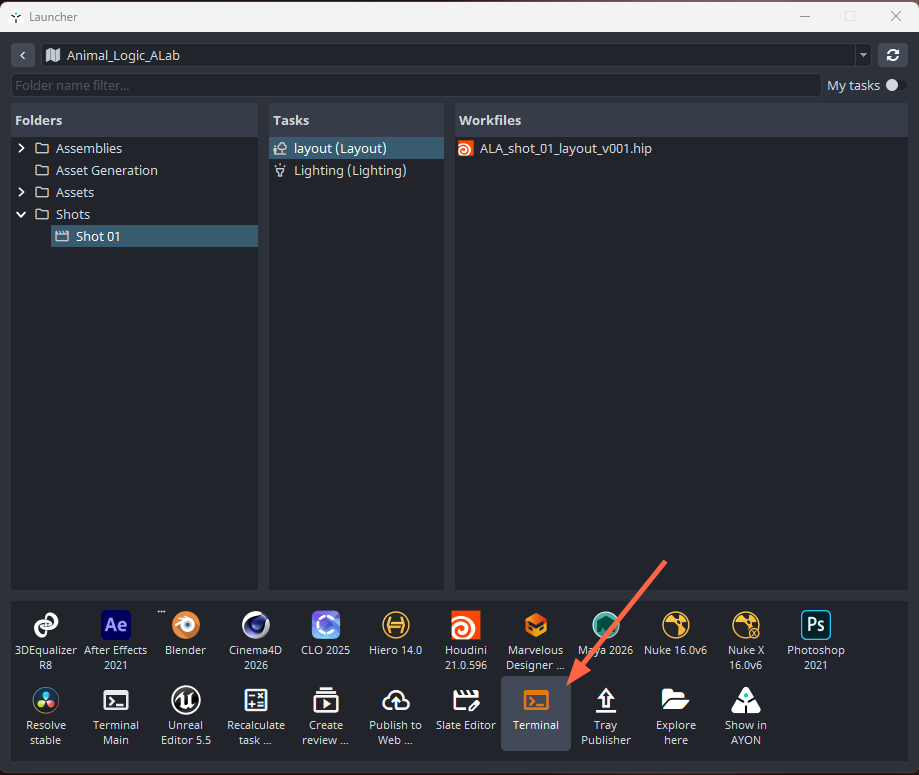

  2. Initialize Terminal: Select your project/asset context in the AYON Launcher, select Terminal, and Select your Houdini version.

  3. Enable Pinning Mode in terminal: set the necessary environment variables (ENABLE_STATIC_GLOBAL_CACHE and PINNING_FILE_PATH)

    Example
    set ENABLE_STATIC_GLOBAL_CACHE=1
set PINNING_FILE_PATH=H:/AYON/projects/Experiments/random/houdini/work/test_render/usd_renders/Expr_houdini_test_render_v013/renderGenericMain/__render___pin.json

  4. Launch: Run houdinifx from that same terminal.

    Example
    houdinifx

Resolver Dynamic Mapping

Dynamic Mapping allows you to provide the resolver with additional context before resolution occurs. This is an "upstream" feature that intercepts URIs and redirects them based on your instructions.

Note: This feature is independent of Pinning Mode; it acts as a pre-processing layer that runs before the resolution strategy is applied.

Use Cases:

  • Hotfixes: Redirect a specific version or replace an entire product reference without modifying the original USD file. Example (Product Swap):

    • From: "ayon+entity://dev_project_1//sh010?product=modelTestCube&version=v001&representation=usd"

    • To: "ayon+entity://dev_project_1//sh010?product=modelTest&version=v001&representation=usd"

  • Testing: Point production URIs to local development versions or file-system overrides for rapid iteration. Example (Local Path Redirection):

    • From: "ayon+entity://dev_project_1//sh010?product=modelTest&version=v001&representation=usd"

    • To: "/home/ynput/dev/ayon-usd-resolver/testAssets/Cone.usd"

Dynamic Remapping File

You can provide mapping instructions using either a USD or JSON file.

Example
#usda 1.0
(

    // Define your mappings within the customLayerData metadata:
    customLayerData = {
        string[] mappingPairs = [
            "source_uri_or_path", "target_uri_or_path",
            "source_uri_or_path", "target_uri_or_path"
        ]
    }
    doc = "Test mapping file for AYON USD Resolver"
)

def Xform "Root"
{}

USD Dynamic Mapping Houdini Example

In this example, we will map a latest version to a specific older version (v006)

1. Create your Mapping File

Create a USD or JSON file (e.g., mapping.usd or mapping.json) to define the redirection:

Example
#usda 1.0
(
    customLayerData = {
        string[] mappingPairs = [
            "ayon://Experiments//random/houdini?product=usdAsset&version=latest&representation=usd",
            "ayon://Experiments//random/houdini?product=usdAsset&version=6&representation=usd",
        ]
    }
    doc = "Test mapping file for AYON USD Resolver"
)

def Xform "Root" (
    doc = "Empty root - mappings are in layer metadata"
)
{}

2. Apply Mapping in Houdini

To apply this mapping within your Solaris stage:

  1. Add a configurestage node to your Solaris scene graph.

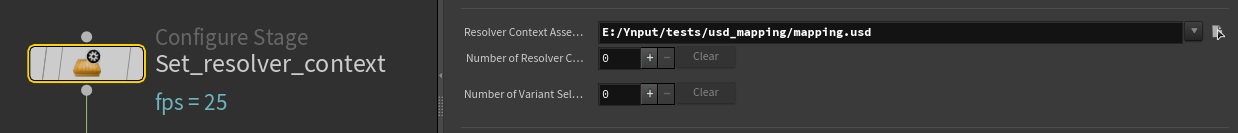

  2. Set the Resolver Context Asset parameter to point to your mapping.usd or mapping.json file.

    Set the Resolver Context Asset parameter to point to your mapping file (USD or JSON).

  3. Load your asset using its Entity URI (e.g., via the AYON Asset Loader with URI mode enabled).

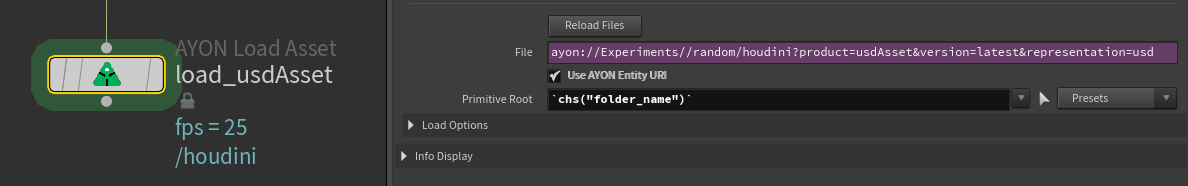

    Load Asset with latest version using entity URI.

3. Verify the Result

You can verify that the mapping was applied successfully in the Scene Graph Layers tab:

  • Without the mapping file, the resolver would load the actual latest version (e.g., v007).

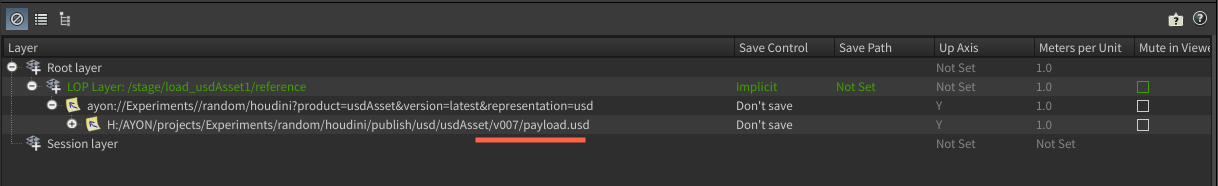

    The actual latest is loaded which is v007 in my case.

  • With the mapping file active, you will see v006 loaded instead.

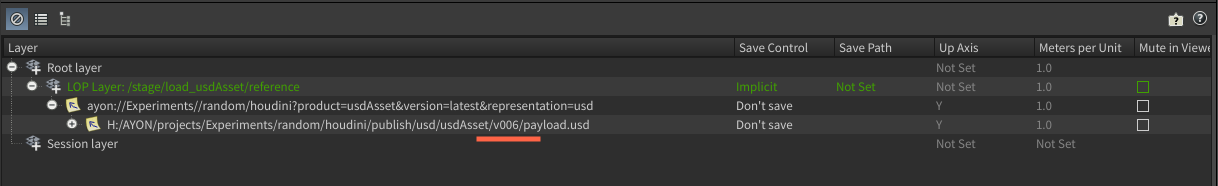

    The v006 is loaded instead of the actual latest.

Caching​

The AYON USD Resolver has a local caching mechanism to optimize its performance in daily use. Entity URIs traditionally resolve to static paths, so caching them in your local sessions is the best way to improve performance.

Debugging Resolver

AYON USD Resolver Verbosity

The AYON USD Addon settings provide two flexible configurations for controlling log output: AYON USD Resolver Config and USD Library Config.

By default, the resolver is configured to show Warnings only. To troubleshoot issues or inspect resolution behavior, you can increase the verbosity using the steps below.

Adjusting Log Levels

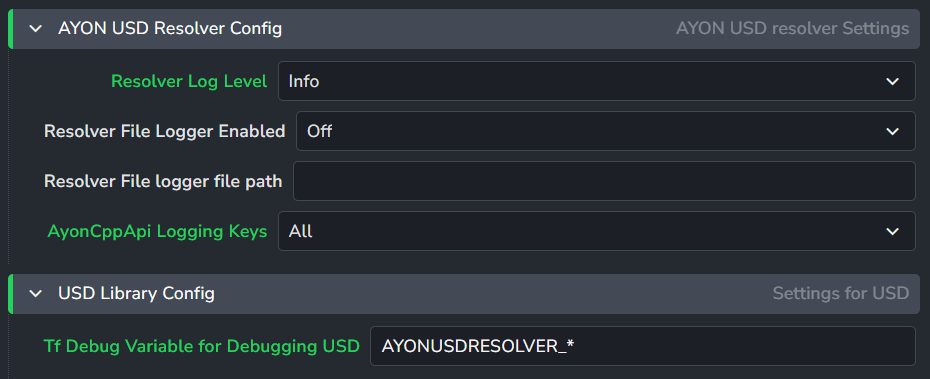

  1. AYON USD Resolver Config: Navigate to AYON USD Resolver Config ayon+settings://usd/ayon_usd_resolver

    • Resolver Log Level: Set this to Info to make the resolver more verbose.

    • Logging Keys: Set this to All. This enables a list of extra logging options for the internal AyonCppApi.

  2. USD Library Config: Navigate to USD Library Config ayon+settings://usd/usd

    • Tf Debug Variable: Set this to AYONUSDRESOLVER_*.

TF_DEBUG

The TF_DEBUG variable allows you to inspect specific internal USD log outputs. This is particularly useful for verifying if plugins are loaded correctly or if data is being refreshed as expected.

Useful Keys for TF_DEBUG:

  • AYONUSDRESOLVER_RESOLVER

  • AYONUSDRESOLVER_RESOLVER_CONTEXT

  • AYONUSDRESOLVER_*

  • PLUG_*

For more detailed information on using TF_DEBUG in USD, refer to Debugging | lucascheller USD Survival Guide.

Experimenting with USD Resolver in Terminal

You don't need to launch a heavy DCC (like Houdini or Maya) simply to test if your URIs are resolving correctly or to inspect a USD file. You can use the standard USD Toolset directly from your terminal.

1. Initialize the Environment (Houdini)

To ensure the resolver and USD tools are available, follow these steps:

  1. Initialize Terminal: Select your project/asset context in the AYON Launcher, select Terminal, and Select your Houdini version. This initializes the AYON environment and adds Houdini’s USD executables to your system path.

  2. Set HFS: Many USD scripts shipped with Houdini expect the $HFS variable to be defined. You can manage this in two ways:

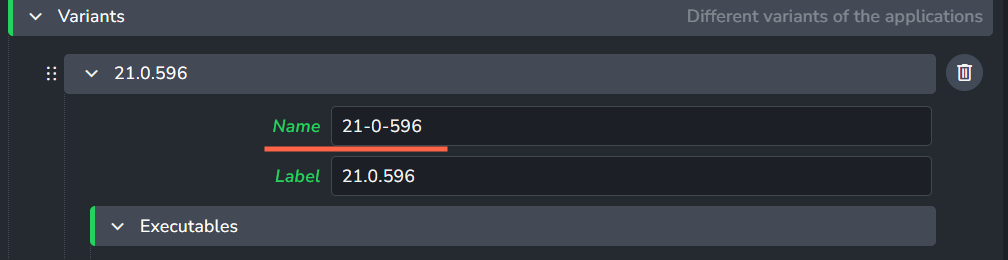

    • One-time Setup: Configure it in the Houdini Variant Environment within the AYON Application Settings. This ensures every terminal or Houdini session launched via AYON has it pre-set. (This example is adapted from the example here)

      Example
      {
    "HOUDINI_VERSION": "21.0.596",
    "HFS": {
        "windows": "C:/PROGRA~1/SIDEEF~1/HOUDIN~1.596",
        "darwin": "/Applications/Houdini/Houdini{HOUDINI_VERSION}/Frameworks/Houdini.framework/Versions/Current/Resources",
        "linux": "/opt/hfs{HOUDINI_VERSION}"
    }
}

      Windows Short Paths Required: On Windows, you must use 8.3 short paths (e.g., PROGRA~1) for the $HFS variable. The standard USD .cmd scripts shipped with Houdini do not support spaces in file paths and will fail to execute if defined with a standard path like C:\Program Files\...

    • Manual Setup: Set it directly in your active terminal session:

      Example
      set HFS=C:/PROGRA~1/SIDEEF~1/HOUDIN~1.596

Note for Manual Setup: If you are initializing the resolver manually (outside the Launcher), you must set the AYON_API_KEY, AYON_SERVER_URL, and AYON_PROJECT_NAME environment variables so the resolver can connect to your server.

If you are using Dynamic Mapping (via JSON/USD files) or Pinning Mode (via a __render___pin.json pin file), ensure you set the corresponding environment variables in your terminal session. This allows redirections to take effect when running commands like usdresolve.

2. Useful Commands:

Once initialized, you can start using USD Commands here are some examples:

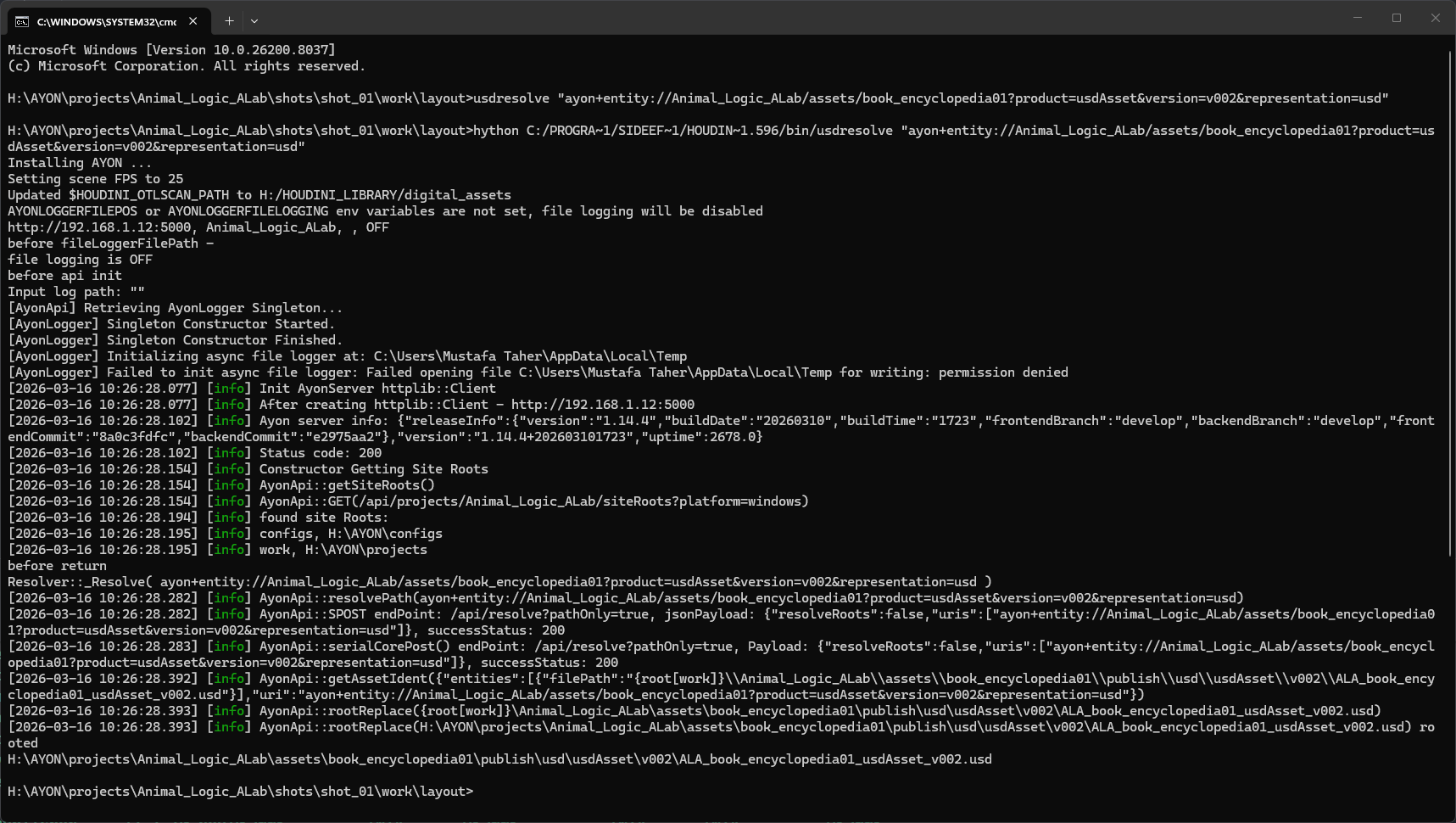

A. usdresolve

Test if a specific URI points to the correct file path on your disk:

Example
usdresolve "ayon+entity://Animal_Logic_ALab/assets/book_encyclopedia01?product=usdAsset&version=v002&representation=usd"

Example Output:

H:\AYON\projects\Animal_Logic_ALab\assets\book_encyclopedia01\publish\usd\usdAsset\v002\ALA_book_encyclopedia01_usdAsset_v002.usd

B. usdcat

Inspect the flattened content of a USD file or check if the resolver can successfully "read" through an asset's layers:

Example
usdcat "ayon+entity://Animal_Logic_ALab/assets/book_encyclopedia01?product=usdAsset&version=v002&representation=usd"

Example Output:

#usda 1.0
(
    defaultPrim = "book_encyclopedia01"
    framesPerSecond = 25
    metersPerUnit = 1
    timeCodesPerSecond = 25
    upAxis = "Y"
)

class "__class__"
{
    class "book_encyclopedia01"
    {
    }
}

def Xform "book_encyclopedia01" (
    assetInfo = {
        string identifier = "book_encyclopedia01/book_encyclopedia01.usd"
        string name = "book_encyclopedia01"
    }
    prepend inherits = </__class__/book_encyclopedia01>
    kind = "component"
    prepend payload = @./payload.usd@
)
{
}

C. usdview

Open a lightweight viewer to see the result of your resolution and mapping in a 3D viewport:

Example
usdview "ayon+entity://Animal_Logic_ALab/assets/book_encyclopedia01?product=usdAsset&version=v002&representation=usd"

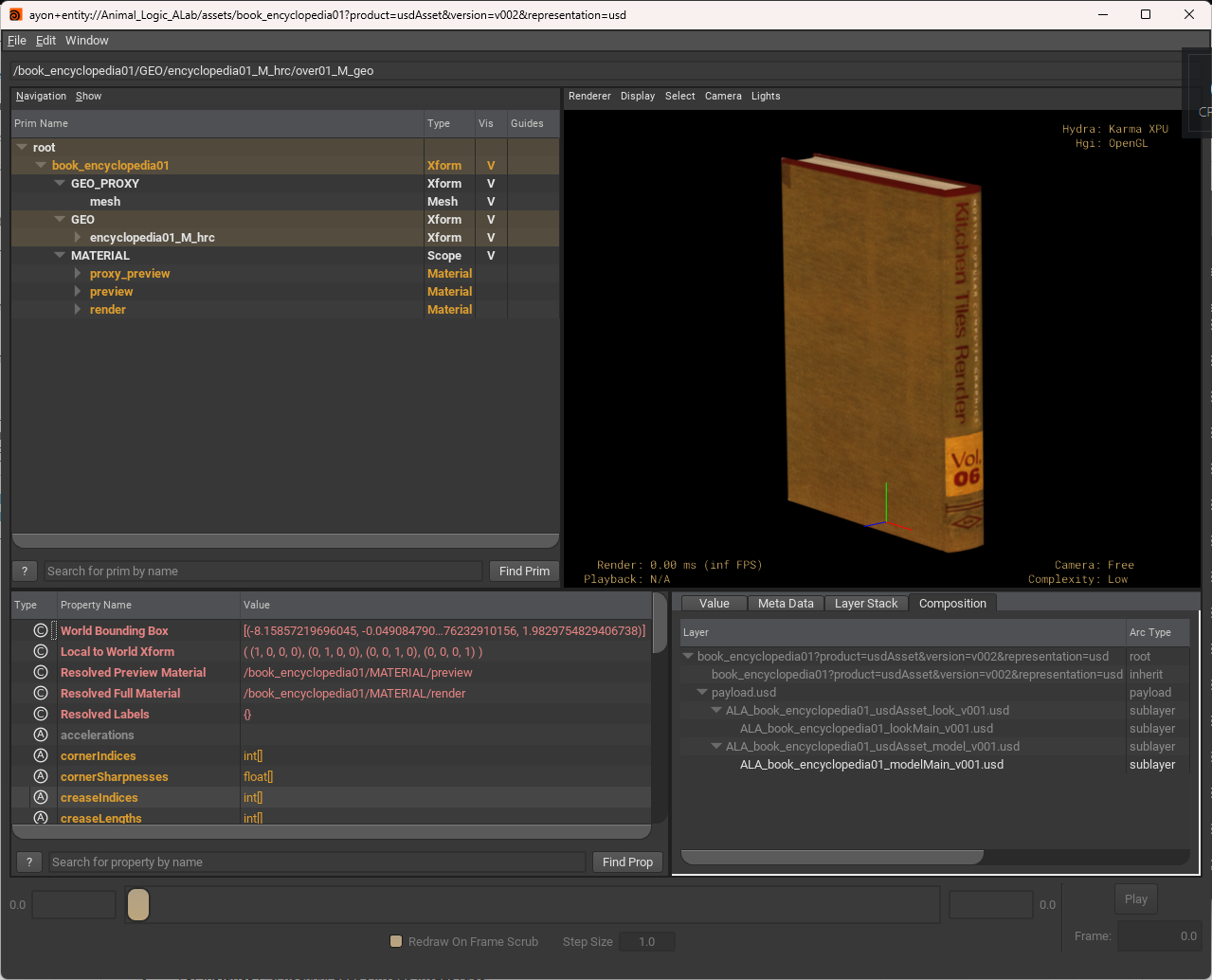

Expected Output: The usdview window will launch, displaying the resolved asset in the GL viewport.

API and Technical References​

FAQ

What is the __render___pin.json file next to my USD?

If you see this file next to a __render__.usd, it is a pinning map. It contains a list of every URI used in that file and its resolved path (marked by the ayon_resolver_pinning_data key). This ensures that what you saw in your LOPs viewer is exactly what the farm renders.
