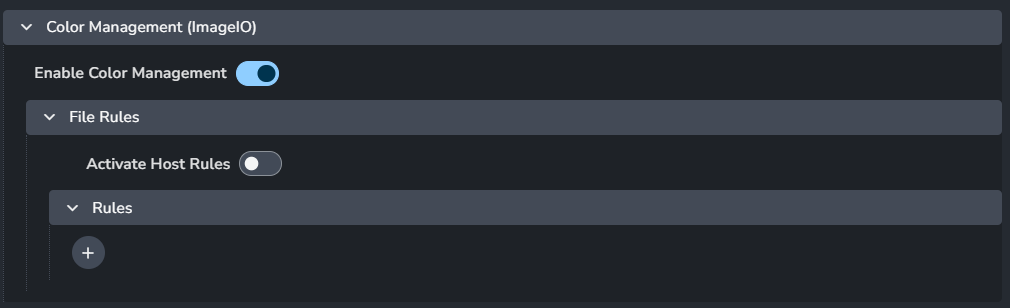

Color Management (ImageIO)​

Setting Location: ayon+settings://tvpaint/imageio

This section allows you to configure and override the global color management settings. For more details, check Host specific overrides.

• Enable Color Management: Turns on color management for Tray Publisher.

• File Rules

  • Activate Host Rules: Enable this to override global color rules.

  • Rules

    • + : Add more rules

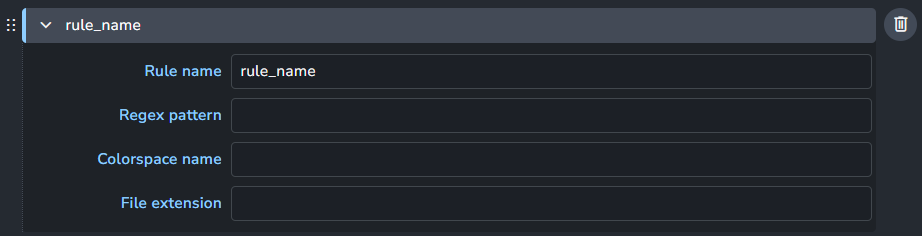

    • Each rule consists of:



      • Rule name

      • Regex pattern

      • Colorspace name

      • File extension

Stop Timer

Setting Location: ayon+settings://tvpaint/imageio

Create Plugins

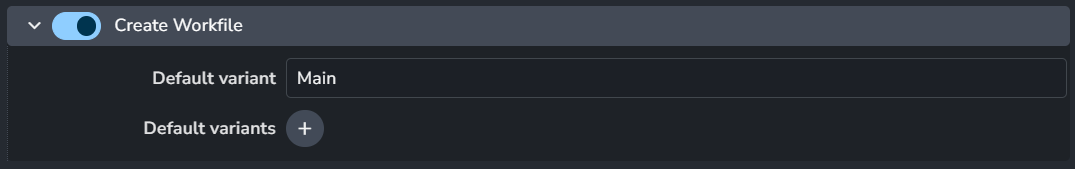

Create Workfile

Setting Location: ayon+settings://tvpaint/create/create_workfile

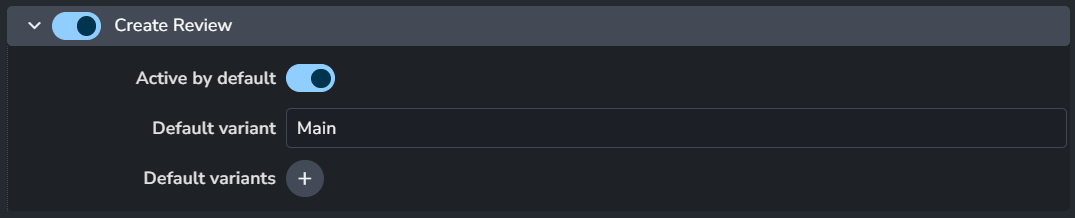

Create Review

Setting Location: ayon+settings://tvpaint/create/create_review

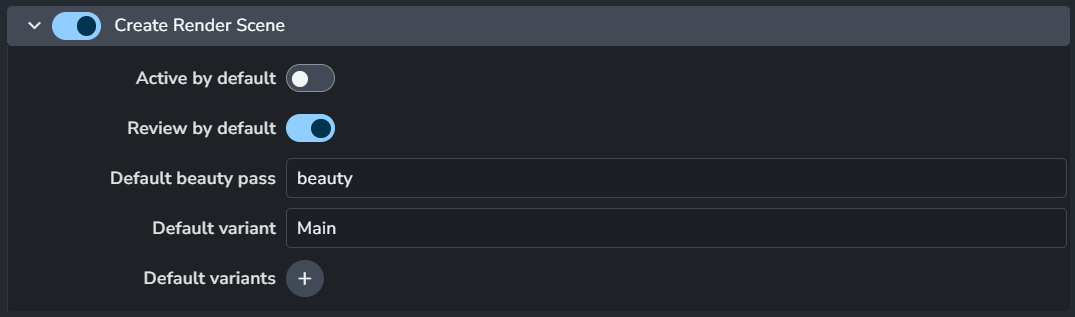

Create Render Scene

Setting Location: ayon+settings://tvpaint/create/create_render_scene

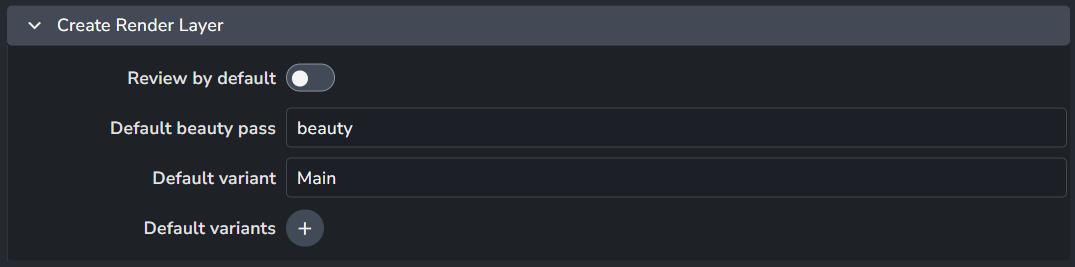

Create Render Layer

Setting Location: ayon+settings://tvpaint/create/create_render_layer

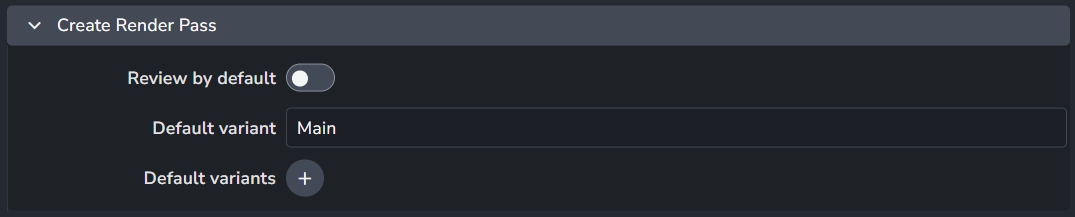

Create Render Pass

Setting Location: ayon+settings://tvpaint/create/create_render_pass

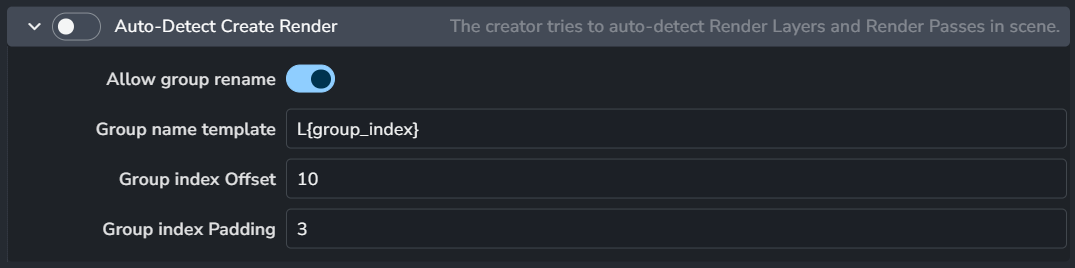

Auto-Detect Create Render

Setting Location: ayon+settings://tvpaint/create/auto_detect_render

The creator tries to auto-detect Render Layers and Render Passes in scene.

For Render Layers is used group name as a variant and for Render Passes is used TVPaint layer name.

Group names can be renamed by their used order in scene. The renaming template where can be used '{group_index}' formatting key which is filled by "used position index of group".

• Template: 'L{group_index}'

• Group offset: '10'

• Group padding: '3'

Would create group names "L010", "L020", ...

Publish Plugins

Collect Render Instances

Setting Location: ayon+settings://tvpaint/publish/CollectRenderInstances

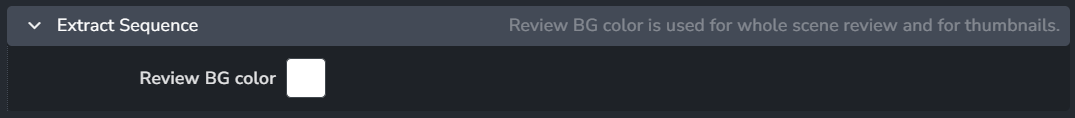

Extract Sequence

Setting Location: ayon+settings://tvpaint/publish/ExtractSequence

Review BG color is used for whole scene review and for thumbnails.

Validate Project Settings

Setting Location: ayon+settings://tvpaint/publish/ValidateProjectSettings

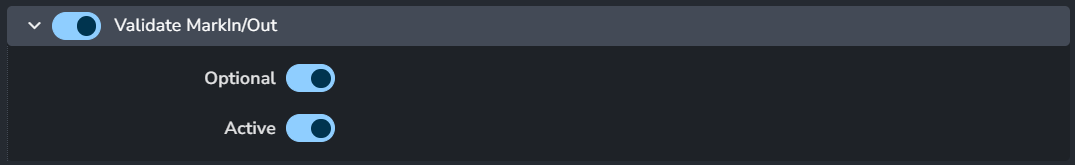

Validate Mark In/Out

Setting Location: ayon+settings://tvpaint/publish/ValidateMarks

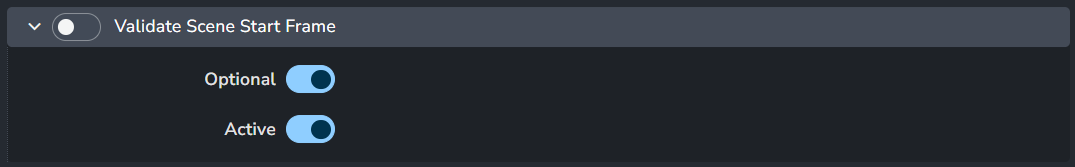

Validate Scene Start Frame

Setting Location: ayon+settings://tvpaint/publish/ValidateStartFrame

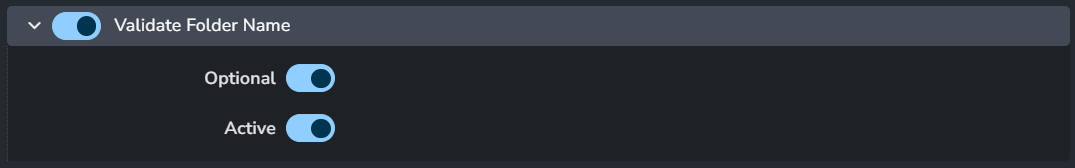

Validate Folder Name

Setting Location: ayon+settings://tvpaint/publish/ValidateAssetName

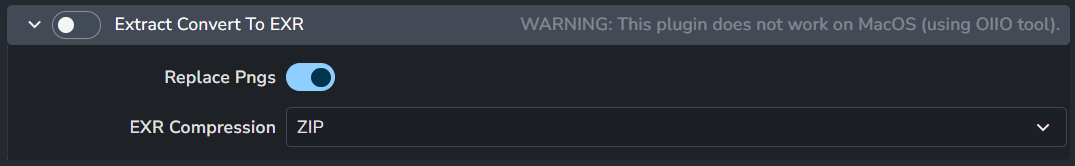

Extract Convert To EXR

Setting Location: ayon+settings://tvpaint/publish/ExtractConvertToEXR

Load Plugins

Load Image

Setting Location: ayon+settings://tvpaint/load/LoadImage

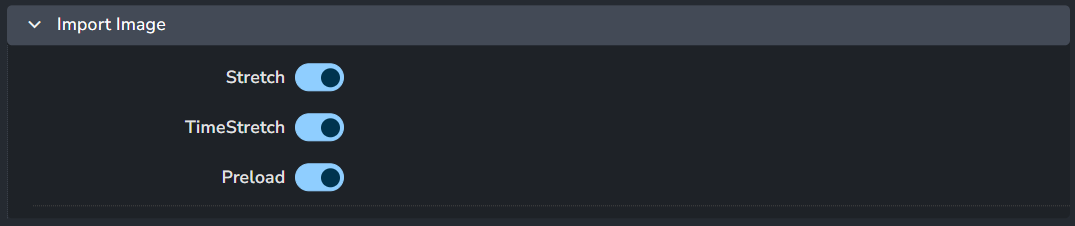

Import Image

Setting Location: ayon+settings://tvpaint/load/ImportImage

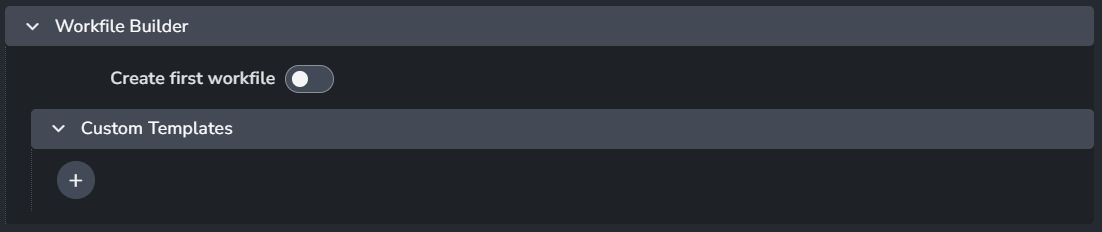

Workfile Builder

Setting Location: ayon+settings://tvpaint/workfile_builder

• Create first workfile: Enable to create a workfile if there are no workfiles.

• Custom Templates

  • Each Custom Template

    • Task Types

    • Path (per OS)

  • + : Add a template.

Product names Configuration​

Product names are defined in core addon settings in

• ayon+settings://core/tools/creator/product_name_profiles

Definition of possible product name templates in TVPaint integration.

Render Layer​

Render layer has additional keys for product name template. It is possible to use render_layer and render_pass.

• Key render_layer is alias for variant (user's input).

• For key render_pass is used predefined value "Beauty" (ATM value can't be changed).

Render pass​

Render pass has additional keys for product name template. It is possible to use render_layer and render_pass.

• Key render_layer is filled with value of render_pass from renderLayer group.

• Key render_pass is alias for variant (user's input).

Review and Workfile​

Families review and workfile are not manually created but are automatically generated during publishing. That's why it is recommended to not use variant key in their product name template.
