3ds Max Addon Settings

Last updated 2 days ago

Set Unit Scale

Setting Locaion: ayon+settings://max/unit_scale_settings

When enabled, AYON will verify the scale used in workfiles upon opening against the specified value. When users select "Fix," it will apply the defined value.

  • Scene Unit Scale: A menu to select between mm, cm, m or km.

Auto Key Default Value

Setting Locaion: ayon+settings://max/auto_key_default

  • Auto Key Default Frame: Defines a frame where a keyframe is automatically created when artists enable Auto Key their scenes.

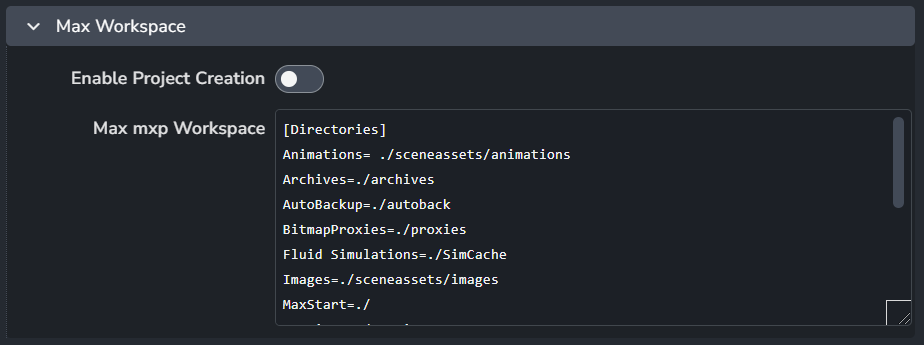

Max Workspace

Setting Locaion: ayon+settings://max/mxp_workspace

  • Enable Project Creation: When enabled, this option will create workspace.mxp if it does not already exist.

  • Max mxp Workspace: Specify the content of workspace.mxp to be used during project creation.

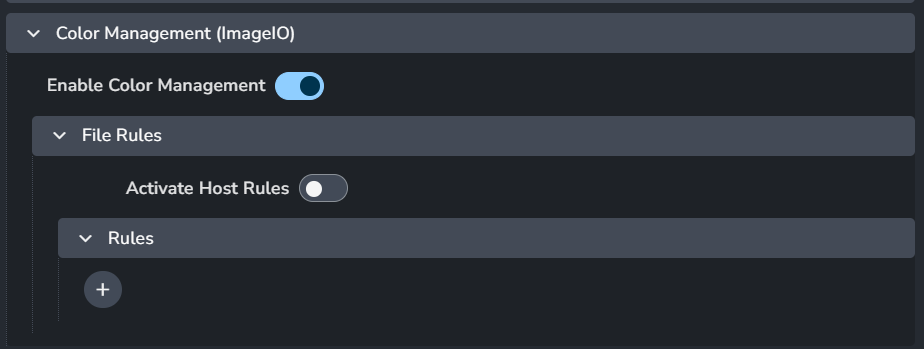

Color Management (ImageIO)

Setting Locaion: ayon+settings://max/imageio

  • Enable Color Management​: This toggle enables AYON's global color management. This toggle is a master switch that enables and disables the whole section.

  • File Rules​

    • Activate Host Rules

    • Rules

      • +: Add more rules

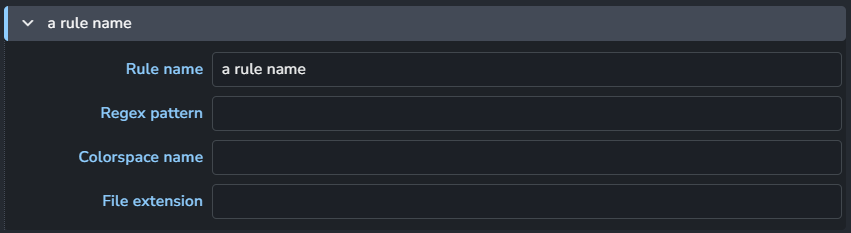

      • Each rule consists of

        • Rule name

        • Regex pattern

        • Colorspace name

        • File extension

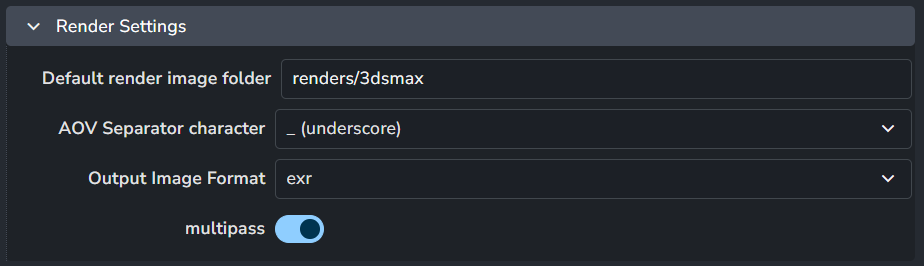

Render Settings

Setting Locaion: ayon+settings://max/RenderSettings

  • Default render image folder: Relative folder for your workfile to render to

  • AOV Separator character: this separtor will be used in the render file name.

  • Output Image Format: Render output format options, select between a varity of extenstions like exr, jpg, png and etc.

  • multipass: When enabled, it sets render settings to output separate AOV files. Disable it to output a single multi-layer file.

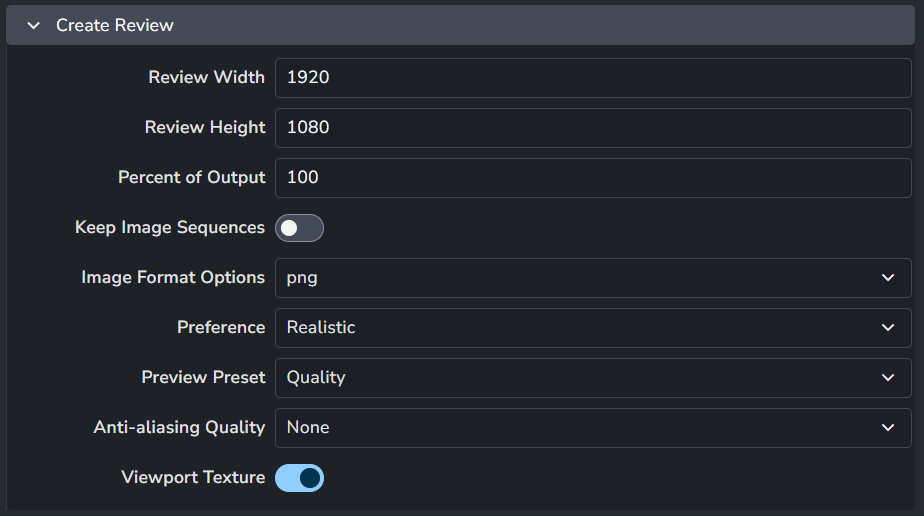

Create Review

Setting Locaion: ayon+settings://max/CreateReview

Define the default settings for rendering camera review animations for the review product type.

  • Review Width

  • Review Height

  • Percent of Output

  • Keep Image Sequences

  • Image Format Options

  • Preference

  • Preview Preset

  • Anti-aliasing Quality

  • Viewport Texture

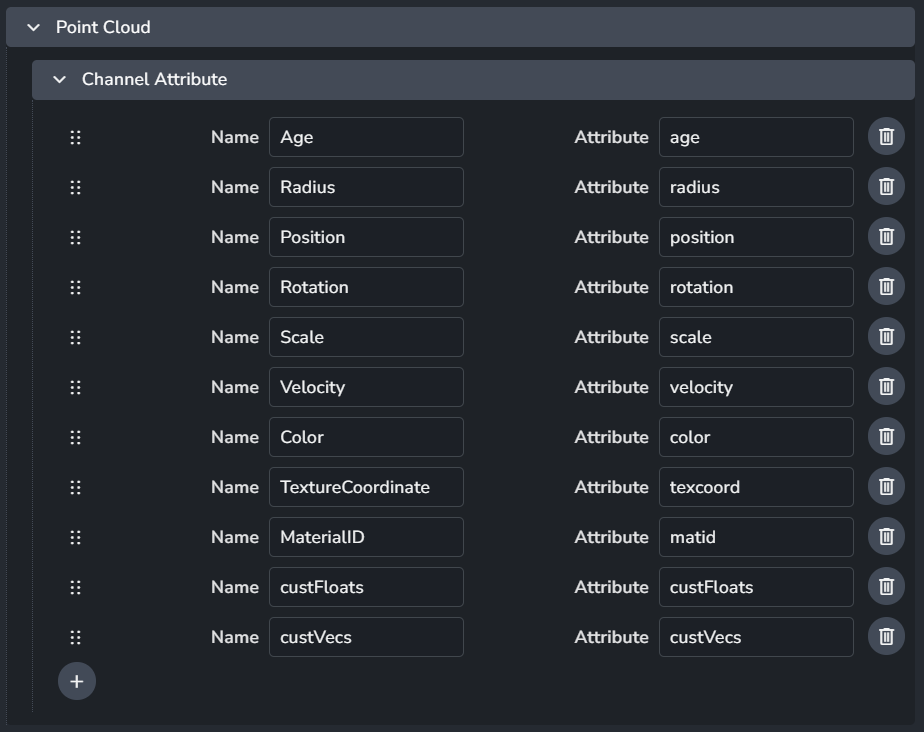

Point Cloud

Setting Locaion: ayon+settings://max/PointCloud

Specify a list of custom channel attributes to use when exporting particles.

  • Channel Attribute

    • +: Add a channel

Publish Plugins

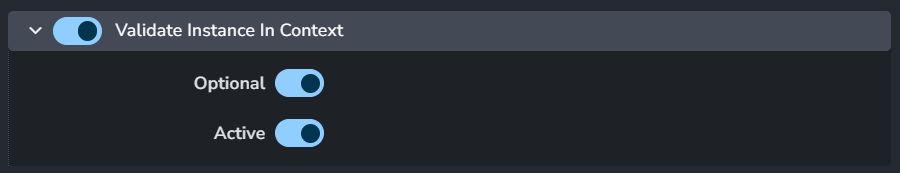

Validate Instance in Context

Setting Location: ayon+settings://max/publish/ValidateInstanceInContext

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Frame Range

Setting Location: ayon+settings://max/publish/ValidateFrameRange

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

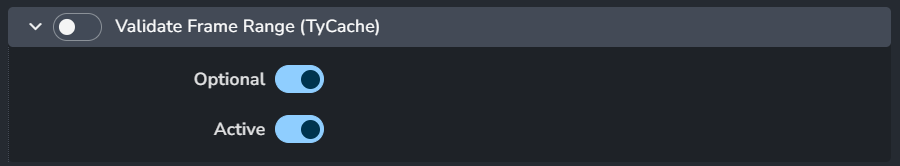

Validate Frame Range (TyCache)

Setting Location: ayon+settings://max/publish/ValidateTyCacheFrameRange

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

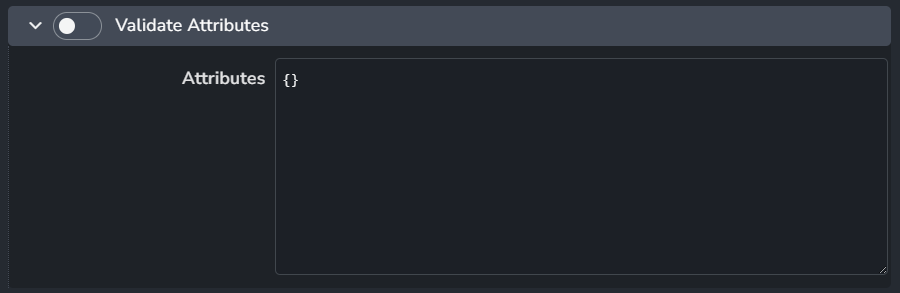

Validate Attributes

Setting Location: ayon+settings://max/publish/ValidateAttributes

This validator ensures the property attributes are valid in 3ds Max.

  • Attributes

Example for inputting the JSON format in the setting

E.g. If you want to check if renderers.current.separateAovFiles=true or renderers.current.MotionBlurShutterAngle=160.5 etc..

{ "renderers.current": { "separateAovFiles": true, "MotionBlurShutterAngle": 160.5, "PrimaryGIEngine": "#RS_GIENGINE_BRUTE_FORCE", "OCIOViewName": "ACES 1.0 SDR-video" } }

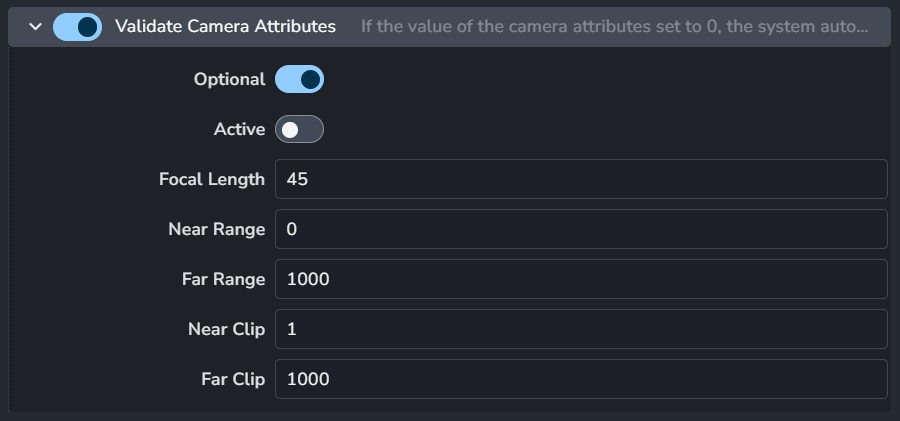

Validate Camera Attributes

Setting Location: ayon+settings://max/publish/ValidateCameraAttributes

If a camera attribute value is set to 0, the system will automatically skip checking it.

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

  • Focal Length

  • Near Range

  • Far Range

  • Near Clip

  • Far Clip

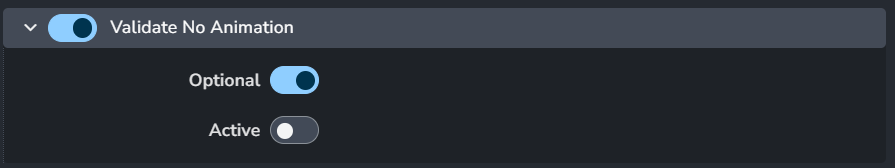

Validate No Animation

Setting Location: ayon+settings://max/publish/ValidateNoAnimation

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

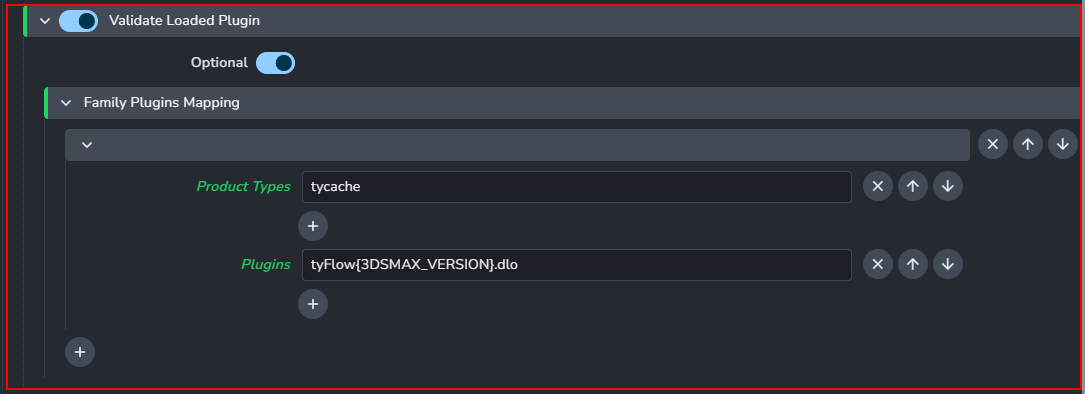

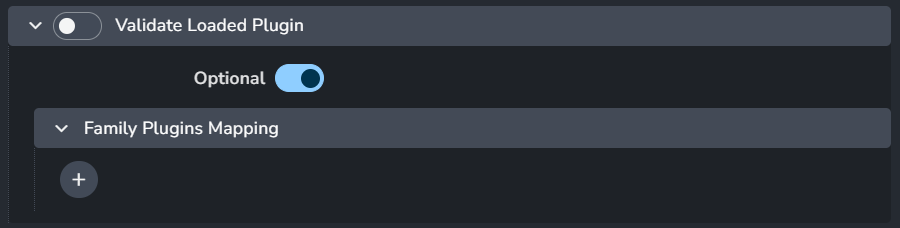

Validate Loaded Plugin

Setting Location: ayon+settings://max/publish/ValidateLoadedPlugin

This validator ensures the plugins are available for certain product types before publishing instances in 3ds Max. You need to click + button to add product type and the plugins you want to validate within it.

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Family Plugins Mapping:

    • +: Add a family mapping

    • Each item consists of

      • Families

      • Plugins

Example:
You can use it to ensure tyFlow is loaded in 3ds Max.

Validate Mesh Has UVs

Setting Location: ayon+settings://max/publish/ValidateMeshHasUVs

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

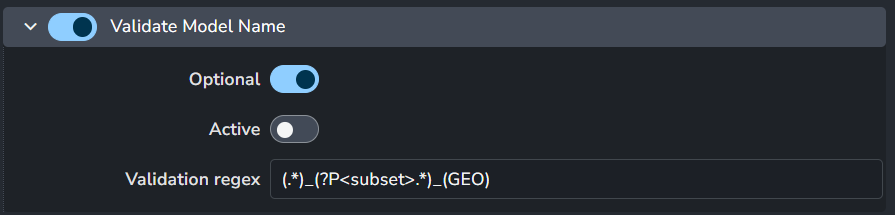

Validate Model Name

Setting Locaiton: ayon+settings://max/publish/ValidateModelName

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

  • Validation Regex

Validate Render Passes

Setting Location: ayon+settings://max/publish/ValidateRenderPasses

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Extract OBJ

Setting Location: ayon+settings://max/publish/ExtractModelObj

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Extract FBX

Setting Location: ayon+settings://max/publish/ExtractModelFbx

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

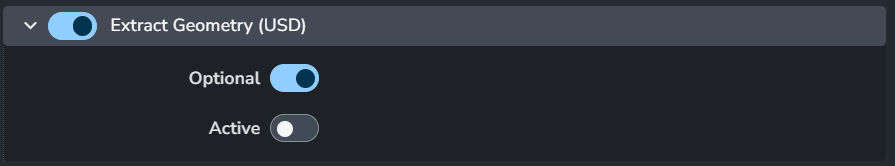

Extract Geometry (USD)

Setting Location: ayon+settings://max/publish/ExtractModelUSD

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

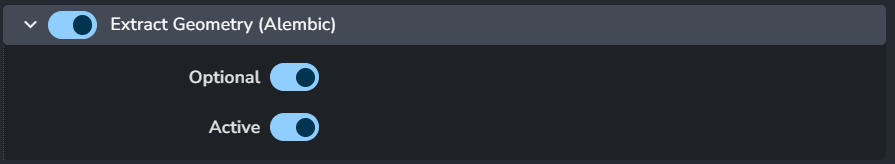

Extract Geometry (Alembic)

Setting Location: ayon+settings://max/publish/ExtractModel

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

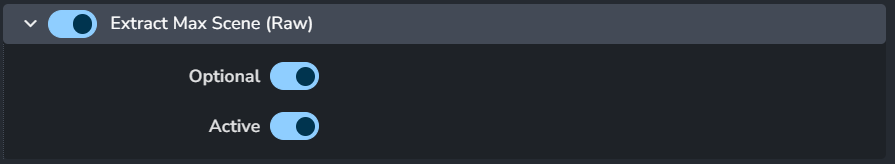

Extract Max Scene (Raw)

Setting Location: ayon+settings://max/publish/ExtractMaxSceneRaw

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.
