Maya Publishers Settings

Last updated 9 months ago

Collectors

Collect Render Layers

Setting Location: ayon+settings://maya/publish/CollectMayaRender

  • Sync render version with workfile

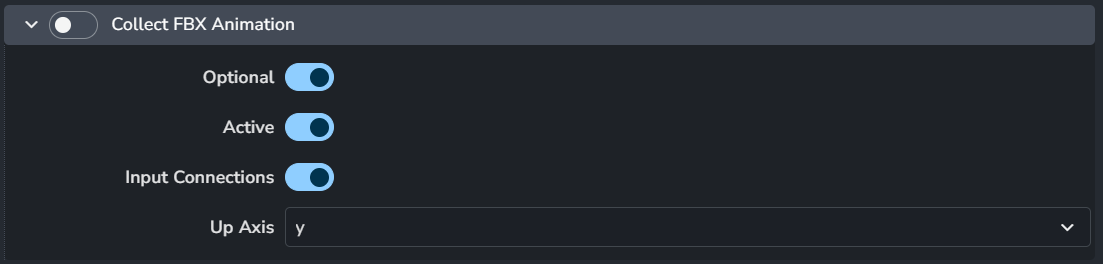

Collect FBX Animation

Setting Location: ayon+settings://maya/publish/CollectFbxAnimation

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

  • Input Connections

  • Up Axis

Collect Camera for FBX export

Setting Location: ayon+settings://maya/publish/CollectFbxCamera

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Collect Model for FBX export

Setting Location: ayon+settings://maya/publish/CollectFbxModel

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Collect Assets for GLB/GLTF export

Setting Location: ayon+settings://maya/publish/CollectGLTF

  • Enable: The default state of the plugin.

Maya USD Export Chaser: Filter Properties

Setting Location: ayon+settings://maya/publish/CollectMayaUsdFilterProperties

  • Enable: The default state of the plugin.

  • Default Filter: Set the default filter for USD properties to export. It uses SideFX Houdini Pattern Matching in Parameters.

    Some examples would include:

    • Only include xforms: xformOp*

    • Everything but xforms: * ^xformOp*

    • Everything but mesh point data: * ^extent ^points ^faceVertexCounts ^faceVertexIndices ^primvars*

Validators

Validate Instance In Context

Setting Location: ayon+settings://maya/publish/ValidateInstanceInContext

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

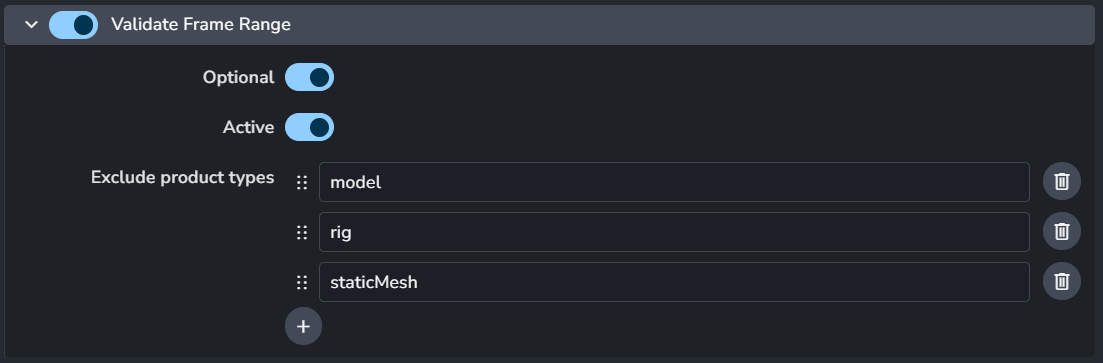

Validate Frame Range

Setting Location: ayon+settings://maya/publish/ValidateFrameRange

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

  • Exclude product types

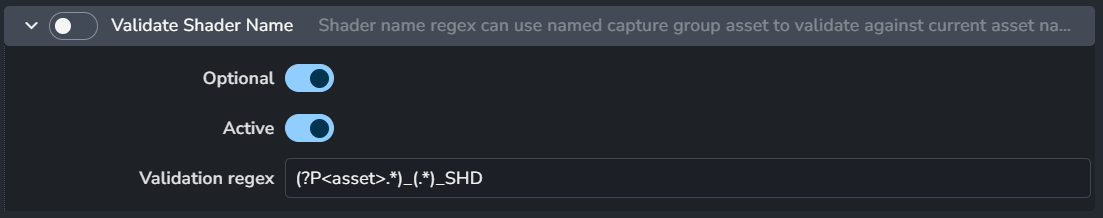

Validate Shader Name

Setting Location: ayon+settings://maya/publish/ValidateShaderName

Shader name regex can use named capture group asset to validate against current asset name.

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

  • Validation regex

This validator can enforce specific names for model members. It will check them against Validation Regex. There is special group in that regex - shader. If present, it will take that part of the name as shader name and it will compare it with list of shaders defined either in file name specified in Material File or from database file that is per project and can be directly edited from Maya's AYON Tools > Edit Shader name definitions when Use database shader name definitions is on. This list defines simply as one shader name per line.

Validate Look Shading Engine Naming

Setting Location: ayon+settings://maya/publish/ValidateShadingEngine

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Colorspace

Setting Location: ayon+settings://maya/publish/ValidateMayaColorSpace

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

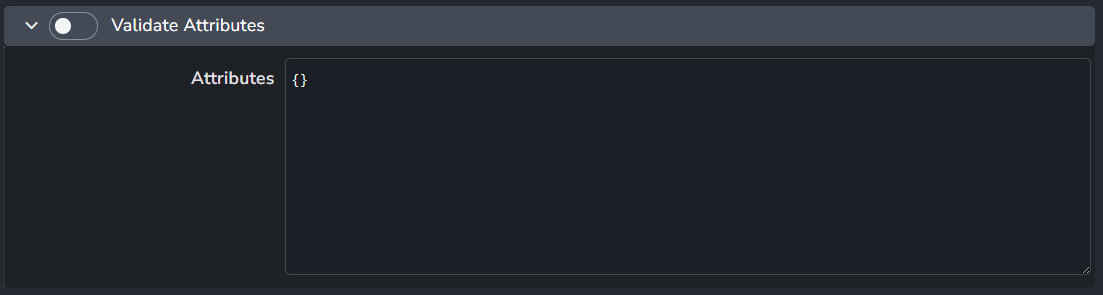

Validate Attributes

Setting Location: ayon+settings://maya/publish/ValidateAttributes

  • Enable: The default state of the plugin.

  • Attributes

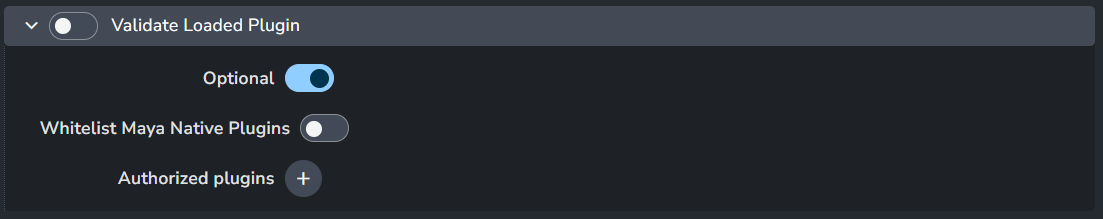

Validate Loaded Plugin

Setting Location: ayon+settings://maya/publish/ValidateLoadedPlugin

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Whitelist Maya Native Plugins

  • Authorized plugins

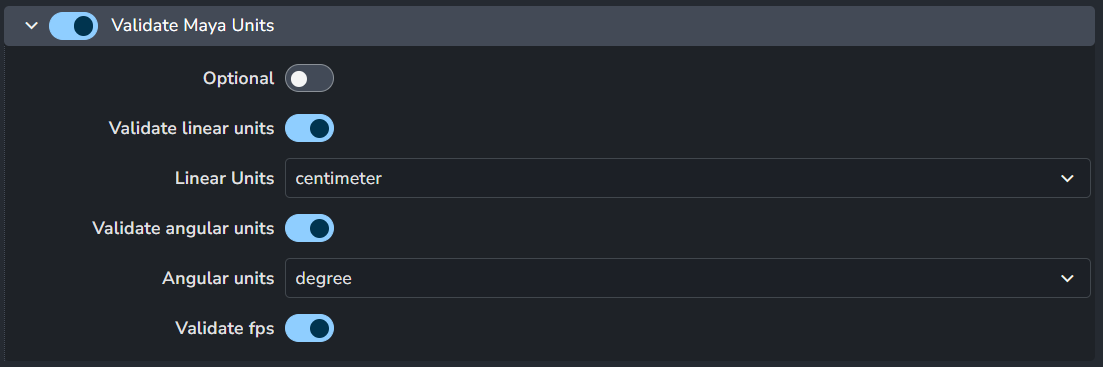

Validate Maya Units

Setting Location: ayon+settings://maya/publish/ValidateMayaUnits

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Validate linear units

  • Linear Units

  • Validate angular units

  • Angular units

  • Validate fps

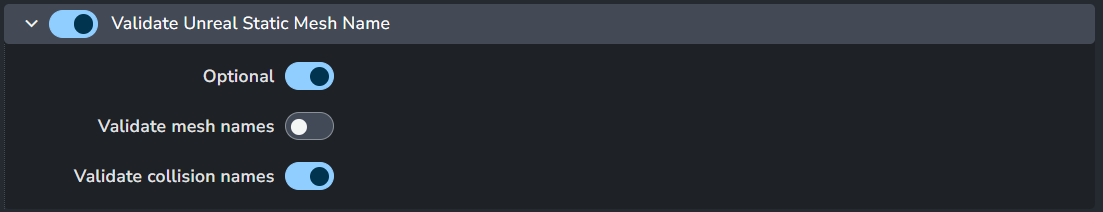

Validate Unreal Static Mesh Name

Setting Location: ayon+settings://maya/publish/ValidateUnrealStaticMeshName

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Vaidate mesh names

  • Validate collision names

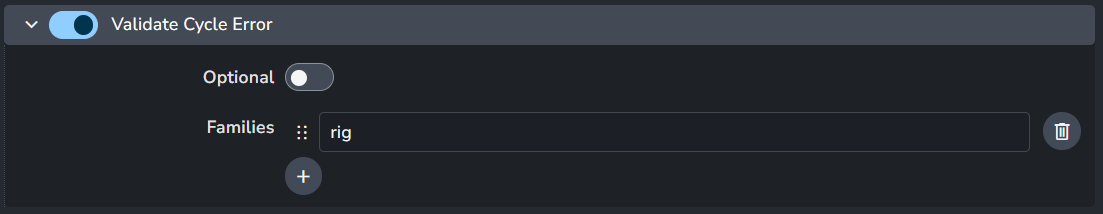

Validate Cycle Error

Setting Location: ayon+settings://maya/publish/ValidateCycleError

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Families

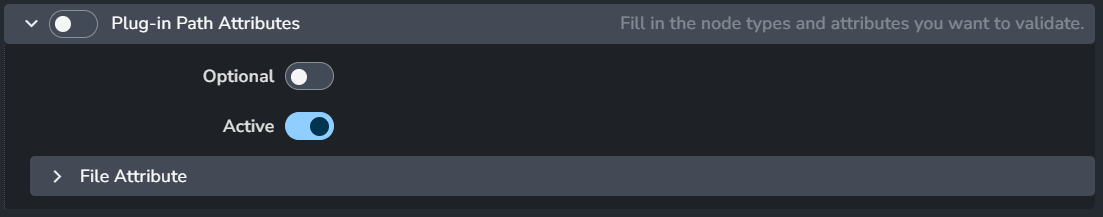

Plug-in Path Attributes

Setting Location: ayon+settings://maya/publish/ValidatePluginPathAttributes

Fill in the node types and attributes you want to validate. e.g. AlembicNode.abc_file, the node type is AlembicNode and the node attribute is abc_file.

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

  • File Attribute

    • + to add a file attribute

    • Each file attribute includes:

      • Node type

      • Attribute

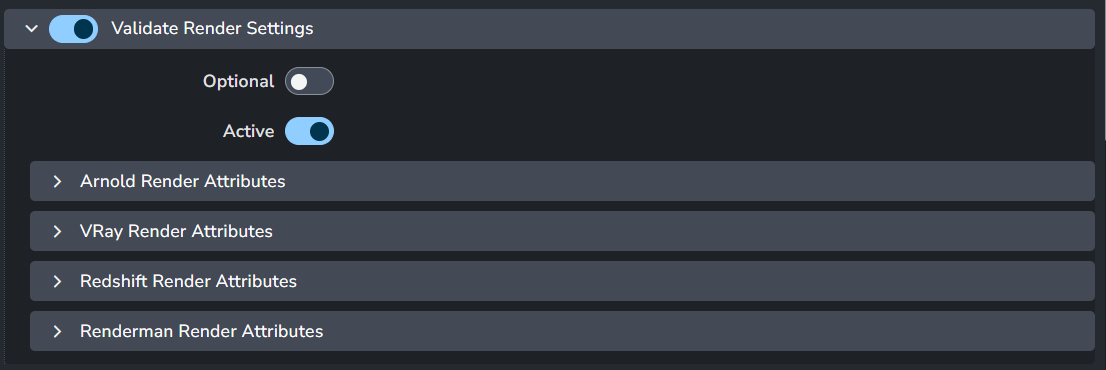

Validate Render Settings

Setting Location: ayon+settings://maya/publish/ValidateRenderSettings

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

  • Renderers attributes: It supports four renderes Arnold, Vray, Redshift and Renderman

    • each renderers attributes include:

Render Settings Validator is here to make sure artists will submit renders with the correct settings. Some of these settings are needed by AYON but some can be defined by the admin. For more information, see Working with settings .

AYON enforced settings include:

  • animation must be enabled in output

  • render prefix must start with maya/<scene> to make sure renders are in correct directory

  • there must be <renderlayer> or its equivalent in different renderers in file prefix

  • if multiple cameras are to be rendered, <camera> token must be in file prefix

For Vray:

  • AOV separator must be set to _ (underscore)

For Redshift:

  • all AOVs must follow <BeautyPath>/<BeautyFile>_<RenderPass> image file prefix

  • AOV image format must be same as the one set in Output settings

For Renderman:

  • both image and directory prefixes must comply to <layer>_<aov>.<f4>.<ext> and <ws>/renders/maya/<scene>/<layer> respectively

For Arnold:

  • there shouldn't be <renderpass> token when merge AOVs option is turned on

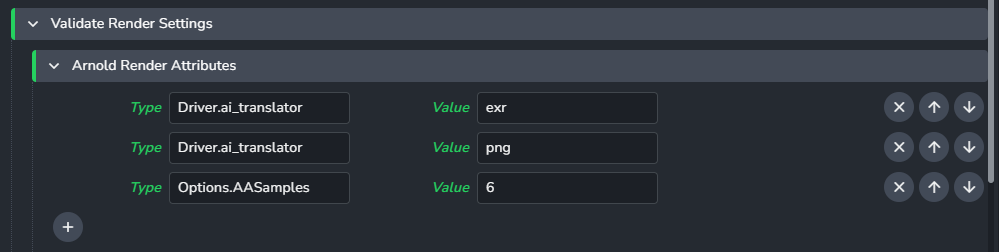

Additional check can be added via Settings - Project Settings > Maya > Publish plugin > ValidateRenderSettings. You can add as many options as you want for every supported renderer. In first field put node type and attribute and in the second required value. You can create multiple values for an attribute, but when repairing it'll be the first value in the list that get selected.

In this example we've put aiOptions.AA_samples in first one and 6 to second to enforce Arnolds Camera (AA) samples to 6.

Note that aiOptions is not the name of node but rather its type. For renderers there is usually just one instance of this node type but if that is not so, validator will go through all its instances and check the value there. Node type for VRay settings is VRaySettingsNode, for Renderman it is rmanGlobals, for Redshift it is RedshiftOptions.

Getting attribute values

If you do not know what an attributes value is supposed to be, for example for dropdown menu (enum), try changing the attribute and look in the script editor where it should log what the attribute was set to.

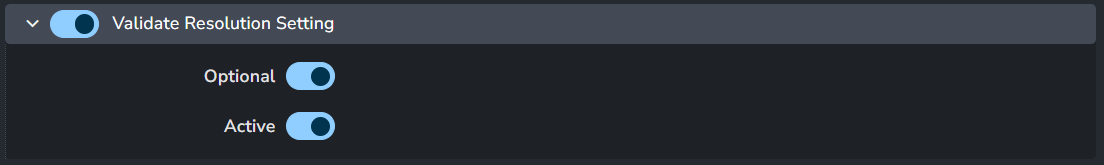

Validate Resolution Setting

Setting Location: ayon+settings://maya/publish/ValidateResolution

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

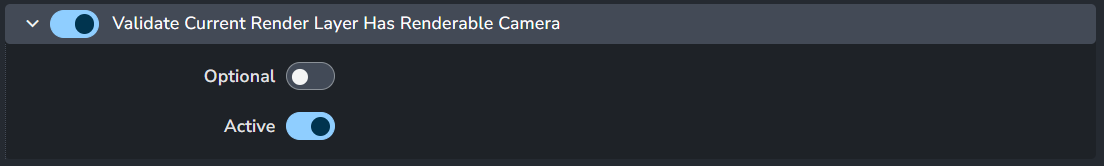

Validate Current Render Layer Has Renderable Camera

Setting Location: ayon+settings://maya/publish/ValidateCurrentRenderLayerIsRenderable

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate GLSL Material

Setting Location: ayon+settings://maya/publish/ValidateGLSLMaterial

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

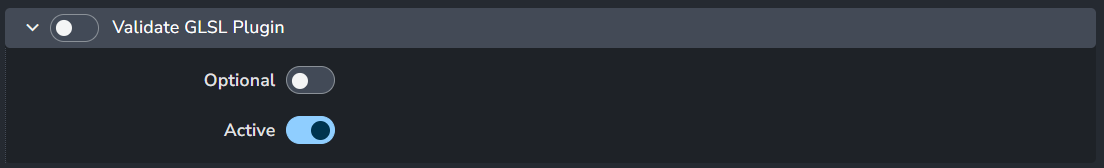

Validate GLSL Plugin

Setting Location: ayon+settings://maya/publish/ValidateGLSLPlugin

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Ornatrix Rig Content

Setting Location: ayon+settings://maya/publish/ValidateOrnatrixRigContent

ensure only Ornatrix-related nodes are included.

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Ornatrix Cache Content

Setting Location: ayon+settings://maya/publish/ValidateOrnatrixCacheContent

ensure only Ornatrix-related nodes are included.

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Render Image Rule (Workspace)

Setting Location: ayon+settings://maya/publish/ValidateRenderImageRule

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate No Default Cameras Renderable

Setting Location: ayon+settings://maya/publish/ValidateRenderNoDefaultCameras

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Render Single Camera

Setting Location: ayon+settings://maya/publish/ValidateRenderSingleCamera

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Render Passes/AOVs Are Registered

Setting Location: ayon+settings://maya/publish/ValidateRenderLayerAOVs

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Step Size

Setting Location: ayon+settings://maya/publish/ValidateStepSize

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

VRay Distributed Rendering

Setting Location: ayon+settings://maya/publish/ValidateVRayDistributedRendering

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

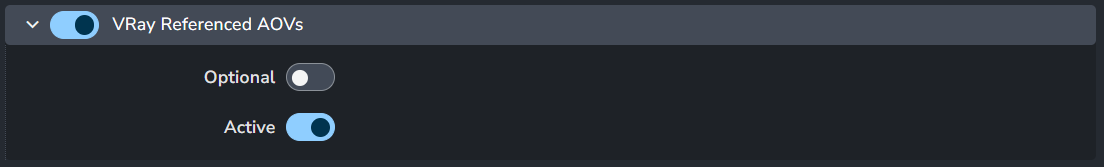

VRay Referenced AOVs

Setting Location: ayon+settings://maya/publish/ValidateVrayReferencedAOVs

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

VRay Translator Settings

Setting Location: ayon+settings://maya/publish/ValidateVRayTranslatorEnabled

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

VRay Proxy Settings

Setting Location: ayon+settings://maya/publish/ValidateVrayProxy

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

VRay Proxy Members

Setting Location: ayon+settings://maya/publish/ValidateVrayProxyMembers

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Yeti Render Script Callbacks

Setting Location: ayon+settings://maya/publish/ValidateYetiRenderScriptCallbacks

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Yeti Rig Cache State

Setting Location: ayon+settings://maya/publish/ValidateYetiRigCacheState

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

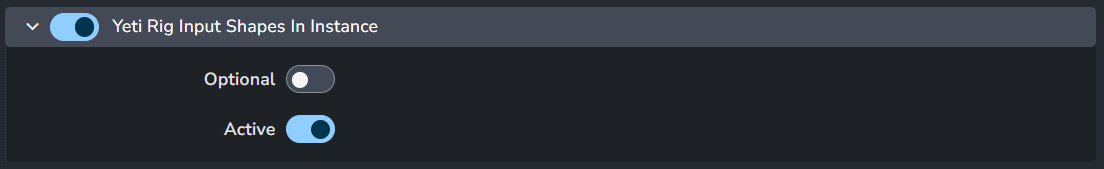

Yeti Rig Input Shapes In Instance

Setting Location: ayon+settings://maya/publish/ValidateYetiRigInputShapesInInstance

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Yeti Rig Settings

Setting Location: ayon+settings://maya/publish/ValidateYetiRigSettings

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Model Validators

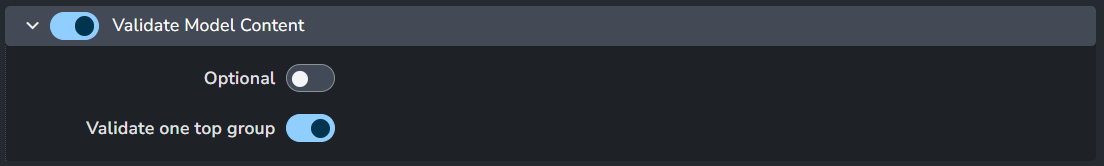

Validate Model Content

Setting Location: ayon+settings://maya/publish/ValidateModelContent

Ensure single top group. A model instance must have exactly one top group.

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Validate one top group

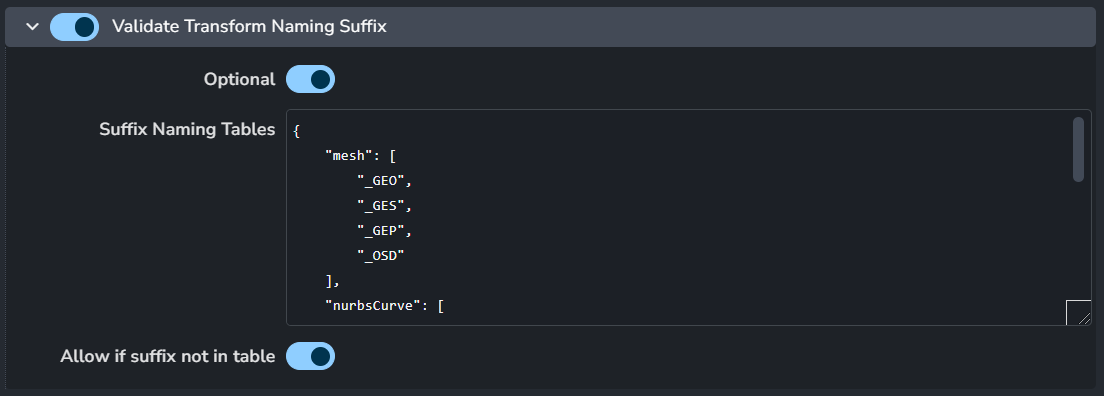

Validate Transform Naming Suffix

Setting Location: ayon+settings://maya/publish/ValidateTransformNamingSuffix

Validates transform suffix based on the type of its children shapes.

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Suffix Naming Tables

  • Allow if suffix not in table

Validate Color Sets

Setting Location: ayon+settings://maya/publish/ValidateColorSets

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

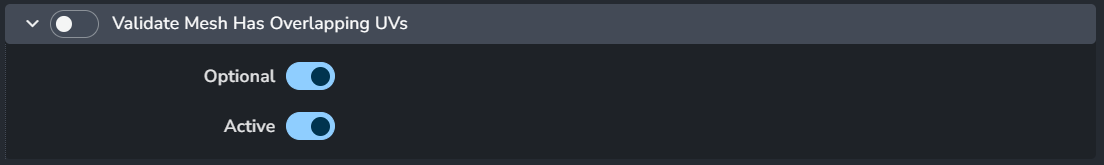

Validate Mesh Has Overlapping UVs

Setting Location: ayon+settings://maya/publish/ValidateMeshHasOverlappingUVs

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Mesh Arnold Attributes

Setting Location: ayon+settings://maya/publish/ValidateMeshArnoldAttributes

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Mesh Shader Connections

Setting Location: ayon+settings://maya/publish/ValidateMeshShaderConnections

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

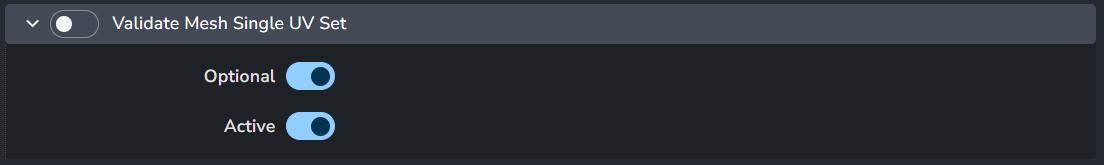

Validate Mesh Single UV Set

Setting Location: ayon+settings://maya/publish/ValidateMeshSingleUVSet

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Mesh Has UVs

Setting Location: ayon+settings://maya/publish/ValidateMeshHasUVs

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Mesh Lamina Faces

Setting Location: ayon+settings://maya/publish/ValidateMeshLaminaFaces

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Mesh Ngons

Setting Location: ayon+settings://maya/publish/ValidateMeshNgons

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

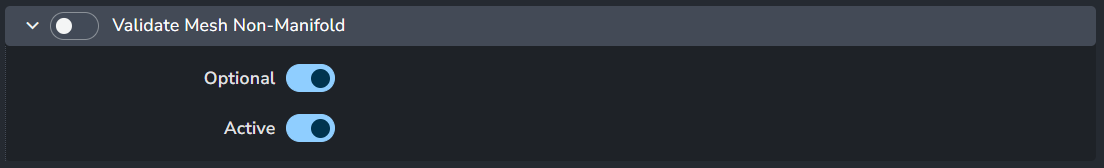

Validate Mesh Non-Manifold

Setting Location: ayon+settings://maya/publish/ValidateMeshNonManifold

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Mesh No Negative Scale

Setting Location: ayon+settings://maya/publish/ValidateMeshNoNegativeScale

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Mesh Edge Length Non Zero

Setting Location: ayon+settings://maya/publish/ValidateMeshNonZeroEdgeLength

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Mesh Normals Unlocked

Setting Location: ayon+settings://maya/publish/ValidateMeshNormalsUnlocked

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Mesh UV Set Map 1

Setting Location: ayon+settings://maya/publish/ValidateMeshUVSetMap1

Validate model's default uv set exists and is named map1.

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Mesh Vertices Have Edges

Setting Location: ayon+settings://maya/publish/ValidateMeshVerticesHaveEdges

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate No Animation

Setting Location: ayon+settings://maya/publish/ValidateNoAnimation

Ensure no keyframes on nodes in the Instance.

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

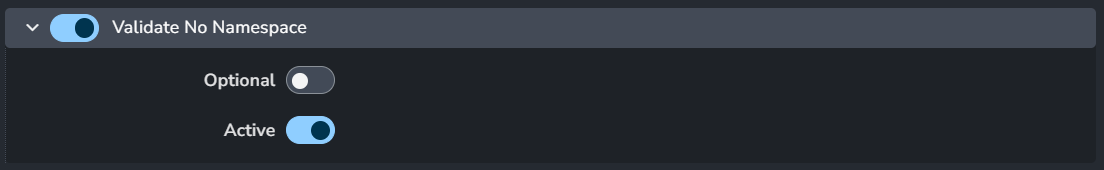

Validate No Namespace

Setting Location: ayon+settings://maya/publish/ValidateNoNamespace

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

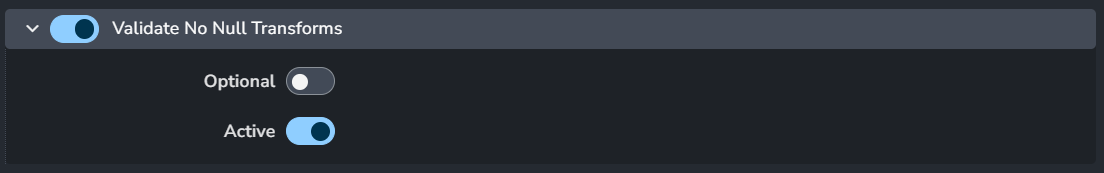

Validate No Null Transforms

Setting Location: ayon+settings://maya/publish/ValidateNoNullTransforms

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

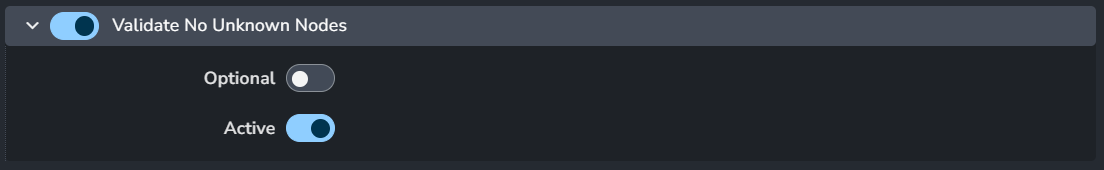

Validate No Unknown Nodes

Setting Location: ayon+settings://maya/publish/ValidateNoUnknownNodes

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

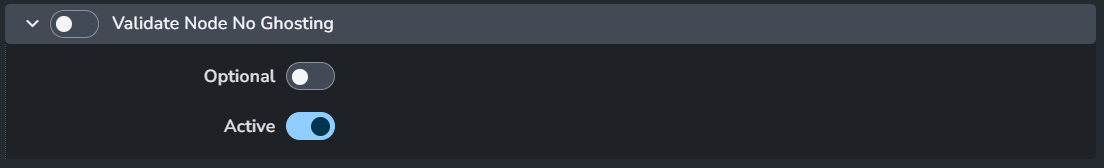

Validate Node No Ghosting

Setting Location: ayon+settings://maya/publish/ValidateNodeNoGhosting

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Shape Default Names

Setting Location: ayon+settings://maya/publish/ValidateShapeDefaultNames

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Shape Render Stats

Setting Location: ayon+settings://maya/publish/ValidateShapeRenderStats

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

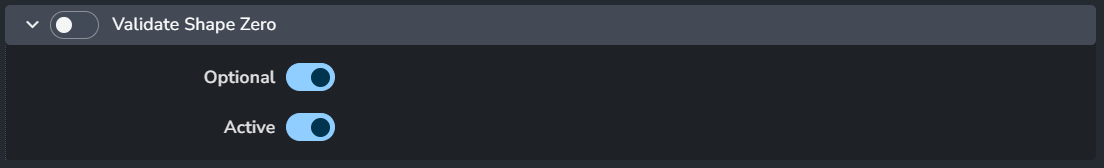

Validate Shape Zero

Setting Location: ayon+settings://maya/publish/ValidateShapeZero

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Transform Zero

Setting Location: ayon+settings://maya/publish/ValidateTransformZero

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Unique Names

Setting Location: ayon+settings://maya/publish/ValidateUniqueNames

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

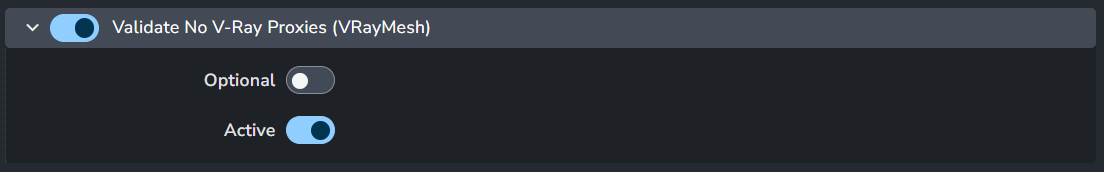

Validate No V-Ray Proxies (VRayMesh)

Setting Location: ayon+settings://maya/publish/ValidateNoVRayMesh

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

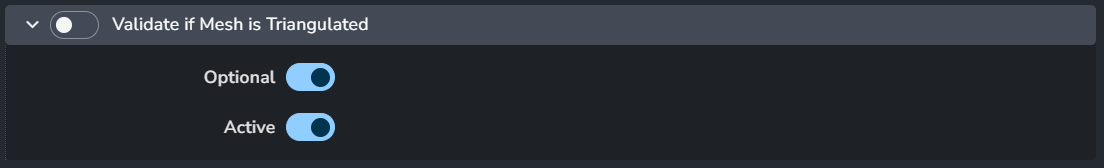

Validate if Mesh is Triangulated

Setting Location: ayon+settings://maya/publish/ValidateUnrealMeshTriangulated

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Alembic Visible Node

Setting Location: ayon+settings://maya/publish/ValidateAlembicVisibleOnly

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

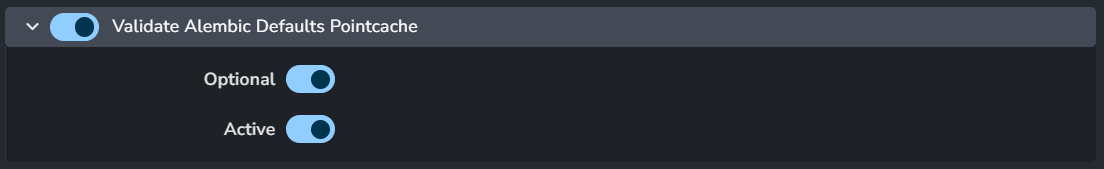

Validate Alembic Defaults Pointcache

Setting Location: ayon+settings://maya/publish/ValidateAlembicDefaultsPointcache

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Alembic Defaults Animation

Setting Location: ayon+settings://maya/publish/ValidateAlembicDefaultsAnimation

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Model Extractors

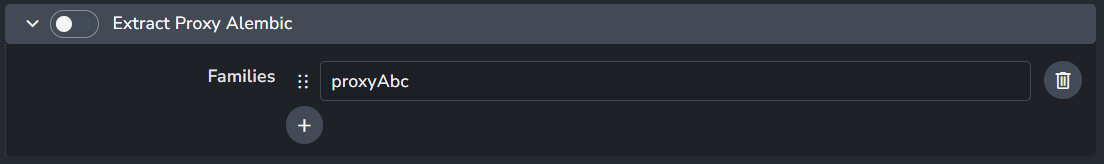

Extract Proxy Alembic

Setting Location: ayon+settings://maya/publish/ExtractProxyAlembic

  • Enable: The default state of the plugin.

  • Families

Extract OBJ

Setting Location: ayon+settings://maya/publish/ExtractObj

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

Rig Validators

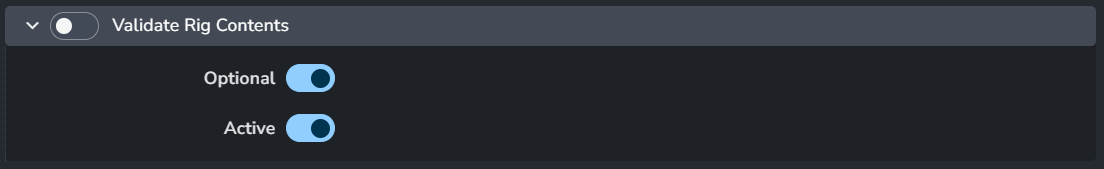

Validate Rig Contents

Setting Location: ayon+settings://maya/publish/ValidateRigContents

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Rig Joints Hidden

Setting Location: ayon+settings://maya/publish/ValidateRigJointsHidden

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

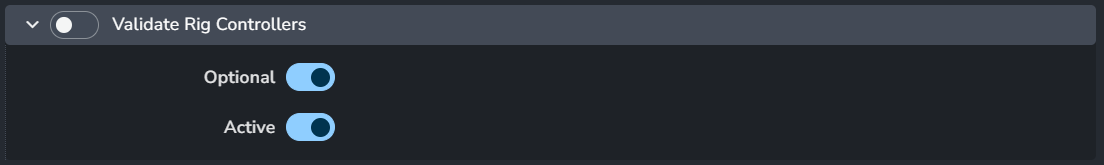

Validate Rig Controllers

Setting Location: ayon+settings://maya/publish/ValidateRigControllers

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Animation Content

Setting Location: ayon+settings://maya/publish/ValidateAnimationContent

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Animation Out Set Related Node Ids

Setting Location: ayon+settings://maya/publish/ValidateOutRelatedNodeIds

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Animation Product Type Publish

Setting Location: ayon+settings://maya/publish/ValidateAnimationProductTypePublish

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Rig Controllers (Arnold Attributes)

Setting Location: ayon+settings://maya/publish/ValidateRigControllersArnoldAttributes

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

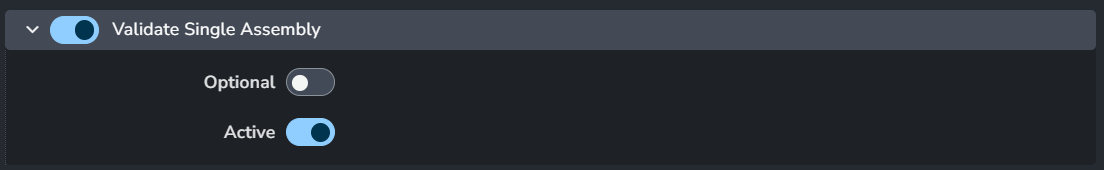

Validate Single Assembly

Setting Location: ayon+settings://maya/publish/ValidateSingleAssembly

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Animated Rig Content

Setting Location: ayon+settings://maya/publish/ValidateAnimatedRigContent

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

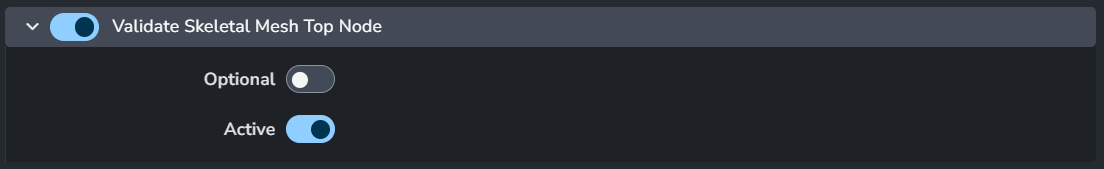

Validate Skeletal Mesh Top Node

Setting Location: ayon+settings://maya/publish/ValidateSkeletalMeshHierarchy

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

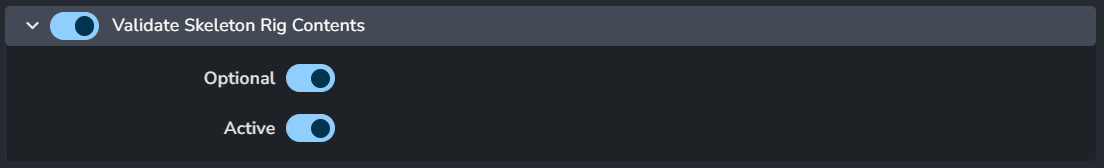

Validate Skeleton Rig Contents

Setting Location: ayon+settings://maya/publish/ValidateSkeletonRigContents

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

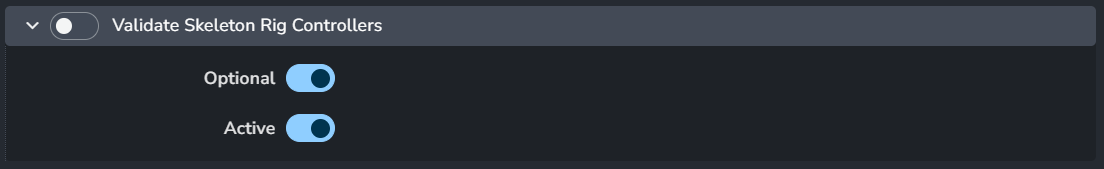

Validate Skeleton Rig Controllers

Setting Location: ayon+settings://maya/publish/ValidateSkeletonRigControllers

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Skincluster Deformer Relationships

Setting Location: ayon+settings://maya/publish/ValidateSkinclusterDeformerSet

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

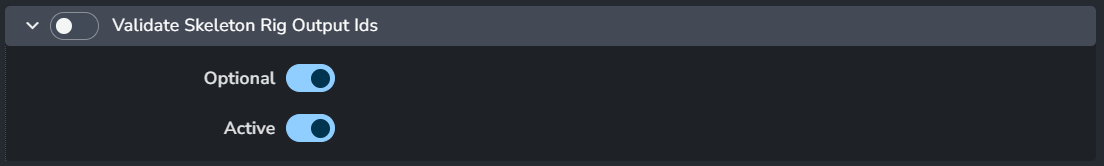

Validate Skeleton Rig Output Ids

Setting Location: ayon+settings://maya/publish/ValidateSkeletonRigOutputIds

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Skeleton Top Group Hierarchy

Setting Location: ayon+settings://maya/publish/ValidateSkeletonTopGroupHierarchy

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

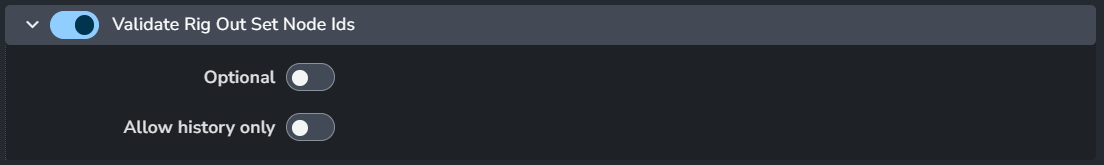

Validate Rig Out Set Node Ids

Setting Location: ayon+settings://maya/publish/ValidateRigOutSetNodeIds

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Allow history only

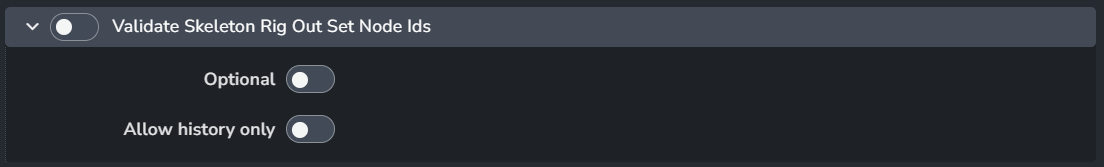

Validate Skeleton Rig Out Set Node Ids

Setting Location: ayon+settings://maya/publish/ValidateSkeletonRigOutSetNodeIds

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Allow history only

Validate Camera Attributes

Setting Location: ayon+settings://maya/publish/ValidateCameraAttributes

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

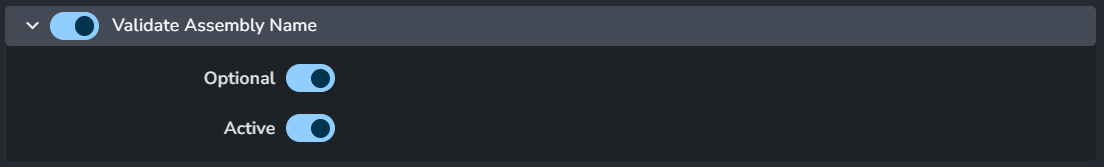

Validate Assembly Name

Setting Location: ayon+settings://maya/publish/ValidateAssemblyName

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Assembly Namespaces

Setting Location: ayon+settings://maya/publish/ValidateAssemblyNamespaces

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Assembly Model Transforms

Setting Location: ayon+settings://maya/publish/ValidateAssemblyModelTransforms

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Ass Relative Paths

Setting Location: ayon+settings://maya/publish/ValidateAssRelativePaths

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate No Default Cameras

Setting Location: ayon+settings://maya/publish/ValidateNoDefaultCameras

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Validate Unreal Up-Axis Check

Setting Location: ayon+settings://maya/publish/ValidateUnrealUpAxis

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

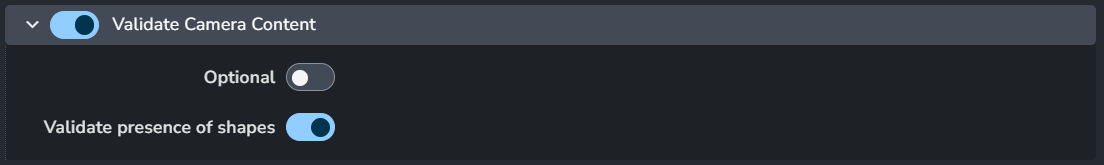

Validate Camera Content

Setting Location: ayon+settings://maya/publish/ValidateCameraContents

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Validate presense of shapes

Extractors

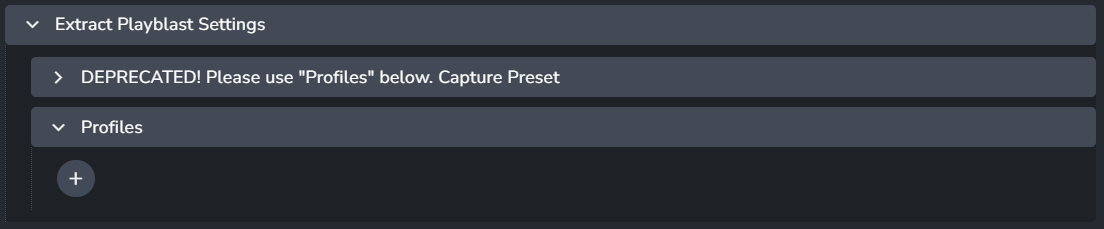

Extract Playblast Settings

Setting Location: ayon+settings://maya/publish/ExtractPlayblast

  • Profiles

    • + : Add a profile.

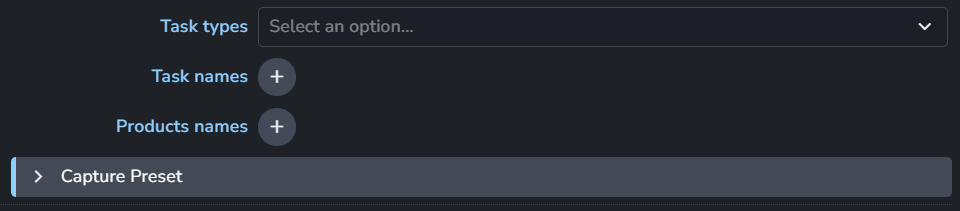

    • Each profile includes:

      • Task types

      • Task names

      • Products names

      • Capture Preset

        • Codec

        • Display Options

        • Generic

        • Renderer

        • Resolution

        • Viewer Options

          • Depth of field, Anit-Aliasing and etc

        • Camera Options

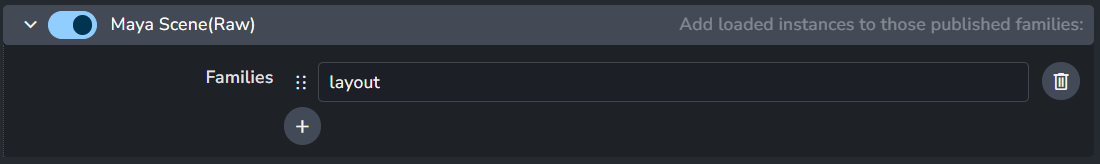

Maya Scene(Raw)

Setting Location: ayon+settings://maya/publish/ExtractMayaSceneRaw

Add loaded instances to the specified published product types (families).

  • Enable: The default state of the plugin.

  • Families

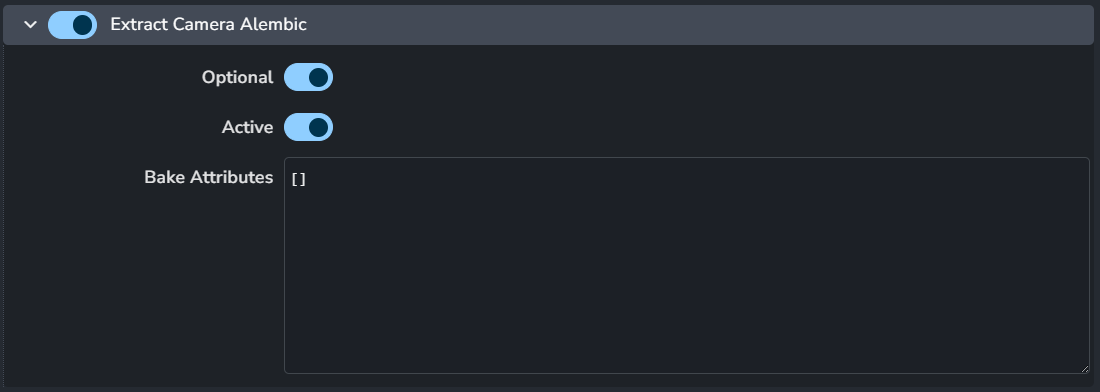

Extract Camera Alembic

Setting Location: ayon+settings://maya/publish/ExtractCameraAlembic

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

  • Bake Attributes

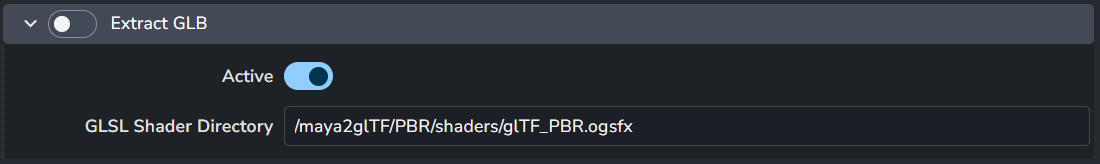

Extract GLB

Setting Location: ayon+settings://maya/publish/ExtractGLB

  • Enable: The default state of the plugin.

  • Active: The default value of the toggle in the publisher UI.

  • GLSL Shader Directory

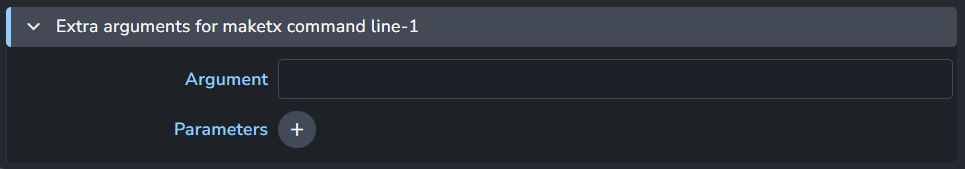

Extract Look

Setting Location: ayon+settings://maya/publish/ExtractLook

  • + : Add an extra argument got maketx command line.

  • Extra argument for maketx command line
    Each argument includes:

    • Argument

    • Parameters

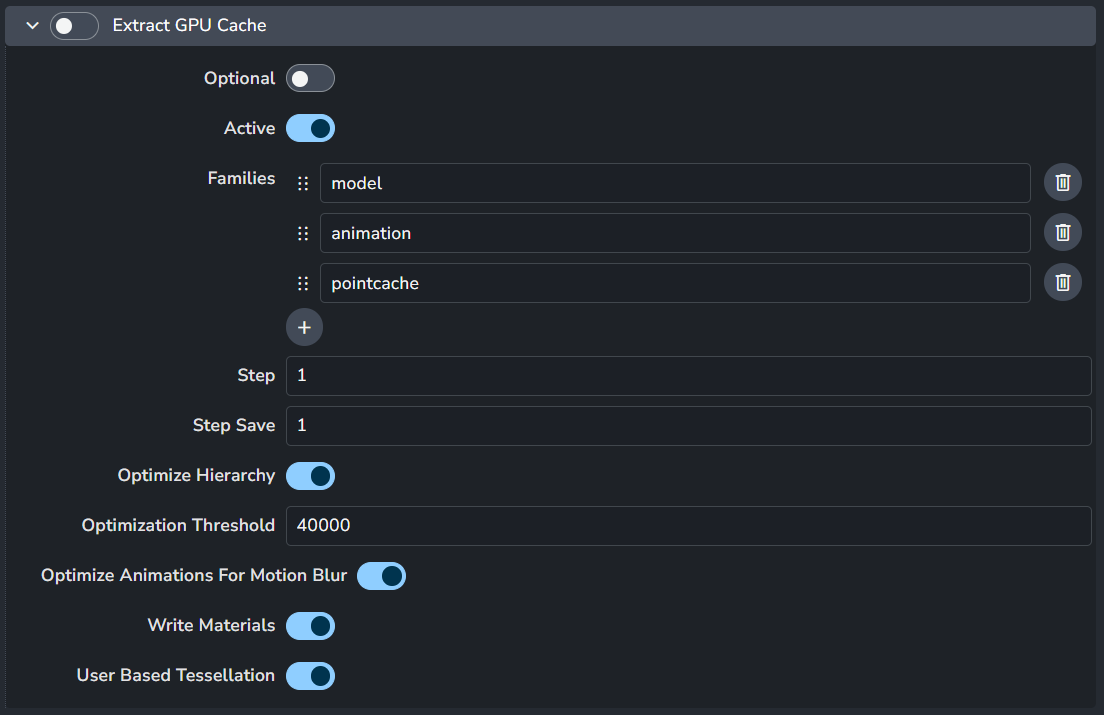

Extract GPU Cache

Setting Location: ayon+settings://maya/publish/ExtractGPUCache

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

  • Families

  • Step

  • Step Save

  • Optimize Hierarchy

  • Optimization Threshold

  • Optimize Animations For Motion Blur

  • Write MAterials

  • User Based Tessellation

Extract Model (Maya Scene)

Setting Location: ayon+settings://maya/publish/ExtractModel

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

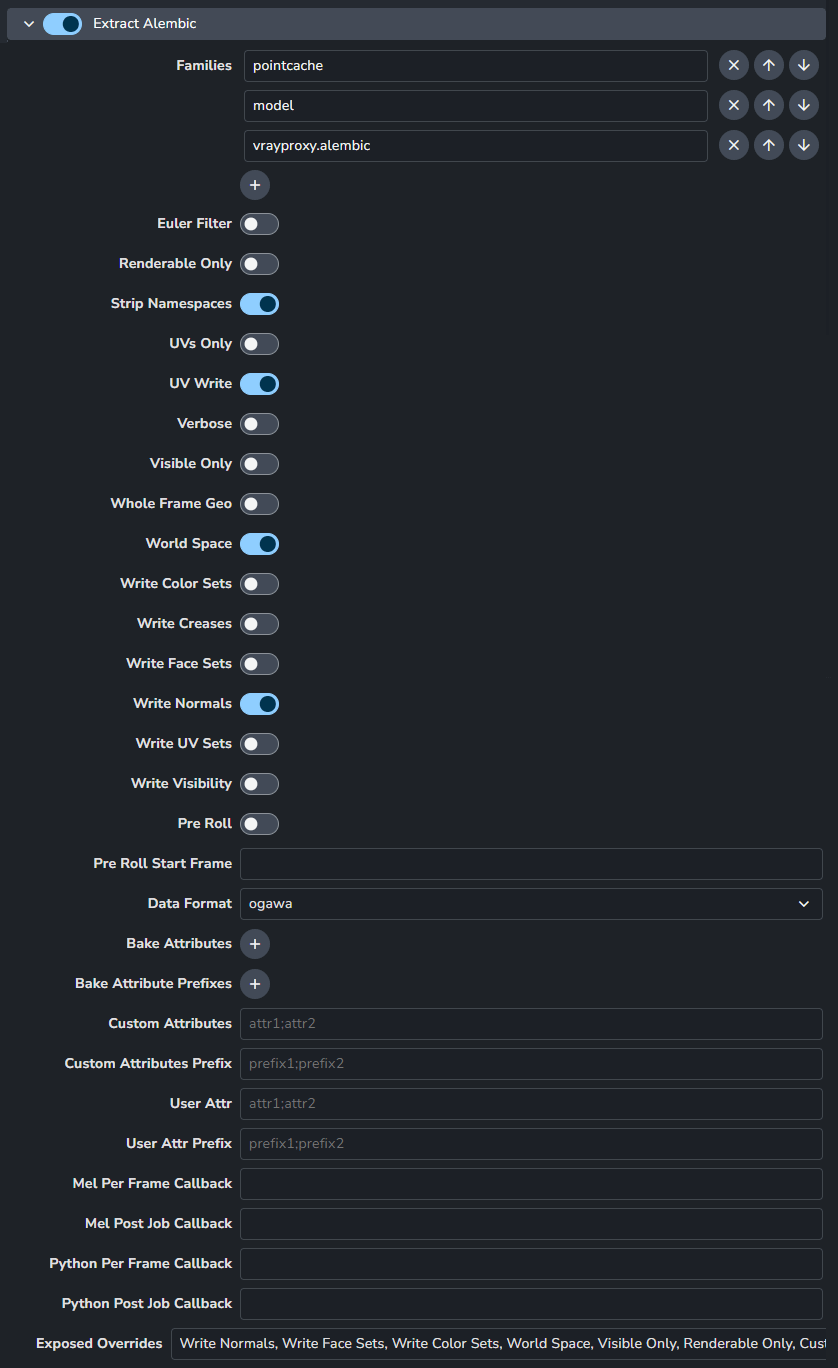

Extract Alembic

Setting Location: ayon+settings://maya/publish/ExtractAlembic

ExtractAlembic

The settings below will become the default when extracting the alembics for pointcache and animation. Any attributes exposed in Exposed Overrides will be visible to the users to edit when publishing. When a user edits an attribute, the default settings below no longer has any effects on the publishing values. To enforce settings even when exposing attributes, you can utilize the validators; ValidateAlembicDefaultsPointcache and ValidateAlembicDefaultsAnimation.

  • Euler Filter: Apply Euler filter while sampling rotations.

  • Renderable Only: Only export renderable visible shapes.

  • Strip Namespaces: Namespaces will be stripped off of the node before being written to Alembic.

  • UVs Only: If this flag is present, only uv data for PolyMesh and SubD shapes will be written to the Alembic file.

  • UV Write: UV data for PolyMesh and SubD shapes will be written to the Alembic file.

  • Verbose: Prints the current frame that is being evaluated.

  • Visible Only: Only export dag objects visible during frame range.

  • Whole Frame Geo: Data for geometry will only be written out on whole frames.

  • World Space: Any root nodes will be stored in world space.

  • Write Color Sets: Write vertex colors with the geometry.

  • Write Face Sets: Write face sets with the geometry.

  • Write Normals: Write normals with the deforming geometry.

  • Write UV Sets: Write all uv sets on MFnMeshes as vector 2 indexed geometry parameters with face varying scope.

  • Write Visibility: Visibility state will be stored in the Alembic file. Otherwise everything written out is treated as visible.

  • Pre Roll: When enabled, the pre roll start frame is used to pre roll the evaluation of the mesh. From the pre roll start frame to the Alembic start frame, will not be written to disk. This can be used for simulation run-up.

  • Pre Roll Start Frame: The frame to start scene evaluation at. This is used to set the starting frame for time-dependent translations and can be used to evaluate run-up that isn't actually translated. NOTE: Pre Roll needs to be enabled for this start frame to be considered.

  • Data Format: The data format to use to write the file.

  • Bake Attributes: List of attributes that will be included in the Alembic export.

  • Bake Attribute Prefixes: List of attribute prefixes for attributes that will be included in the Alembic export.

  • Custom Attributes: Attributes matching by name will be included in the Alembic export. Attributes should be separated by semi-colon ;.

  • Custom Attributes Prefix: Attributes starting with these prefixes will be included in the Alembic export. Attributes should be separated by semi-colon ;.

  • User Attr: Attributes matching by name will be included in the Alembic export. Attributes should be separated by semi-colon ;.

  • User Attr Prefix: Attributes starting with these prefixes will be included in the Alembic export. Attributes should be separated by semi-colon ;.

  • Mel Per Frame Callback: When each frame (and the static frame) is evaluated the string specified is evaluated as a Mel command.

  • Mel Post Job Callback: When the translation has finished the string specified is evaluated as a Mel command.

  • Python Per Frame Callback: When each frame (and the static frame) is evaluated the string specified is evaluated as a python command.

  • Python Post Job Callback: When the translation has finished the string specified is evaluated as a python command.

  • Exposed Overrides: These are the attributes from above that will be exposed in the publisher for users to edit when publishing.

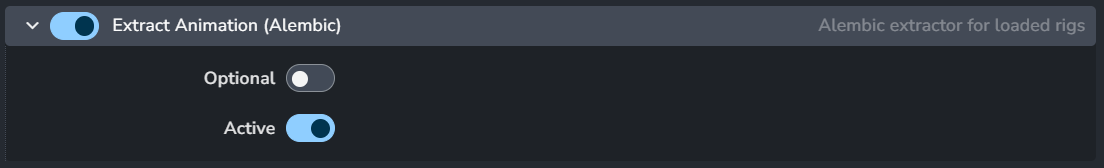

Extract Animation (Alembic)

Setting Location: ayon+settings://maya/publish/ExtractAnimation

Alembic extractor for loaded rigs.

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

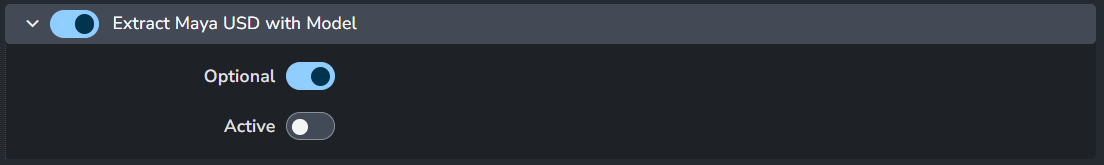

Extract Maya USD with Model

Setting Location: ayon+settings://maya/publish/ExtractMayaUsdModel

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Extract Maya USD with Pointcache

Setting Location: ayon+settings://maya/publish/ExtractMayaUsdPointcache

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

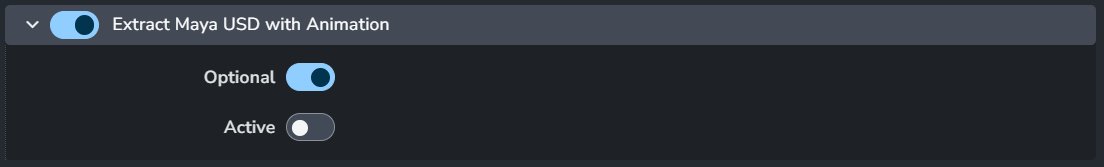

Extract Maya USD with Animation

Setting Location: ayon+settings://maya/publish/ExtractMayaUsdAnim

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.

Extract Skeleton Mesh

Setting Location: ayon+settings://maya/publish/ExtractSkeletonMesh

  • Enable: The default state of the plugin.

  • Optional: Allows the user to toggle this setting in the publisher UI.

  • Active: The default value of the toggle in the publisher UI.
