General​

Add Self Publish Button​

Setting Location: ayon+settings://houdini/general/add_self_publish_button

Enabling this setting will cause Houdini creator to add a self publish button when creating new publish instances. More Info on how how the self publish button works here.

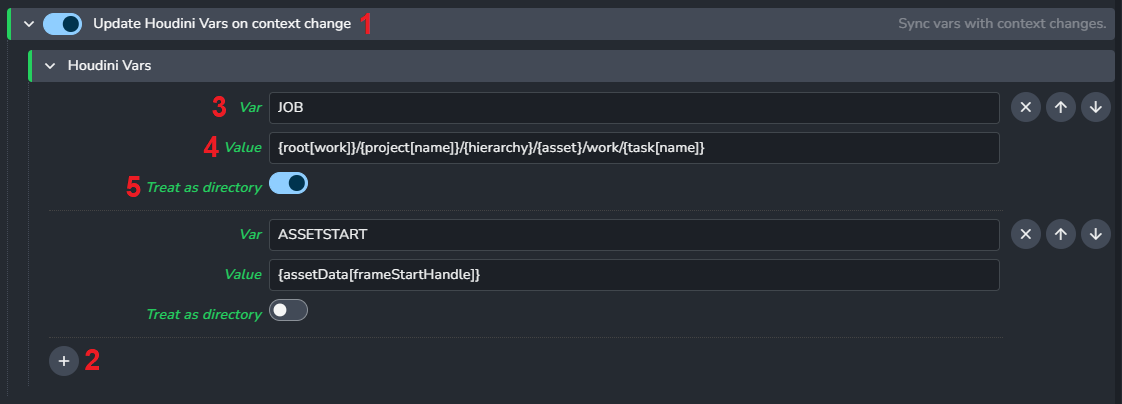

Update Houdini Vars on context change​

Setting Location: ayon+settings://houdini/general/update_houdini_var_context

Allows admins to have a list of vars (e.g. JOB) with (dynamic) values that will be updated on context changes, e.g. when switching to another asset or task.

1. Update Houdini vars on context change : Disabling this setting will leave all Houdini vars unmanaged and thus no context update changes will occur.

2. (+) : add new Houdini variable

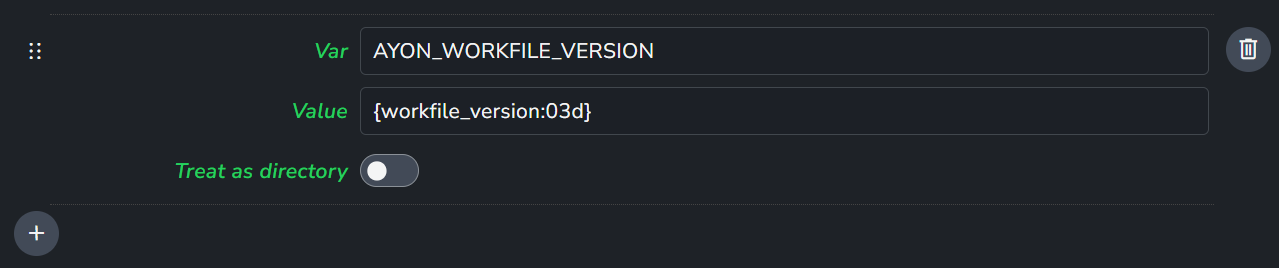

3. Var : The Houdini variable you want to add. No need to include $.

   For consistency reasons we always force all vars to be uppercase. e.g. myvar will be MYVAR

4. Value : The value you want Ayon to maintain.

   You can use these tesmplate keys.
   Refer to FAQ below to learn about the subpported keys.

   • What template keys are available for use in Houdini settings?

5. Treat as directory : If activated, Ayon will consider the given value as a path of a folder.

   If the folder does not exist on the context change it will be created by this feature so that the path will always try to point to an existing folder.

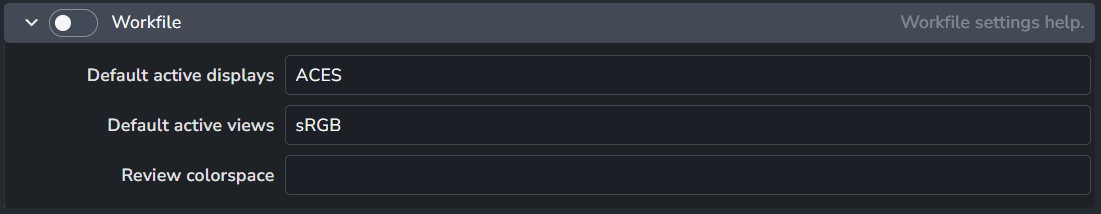

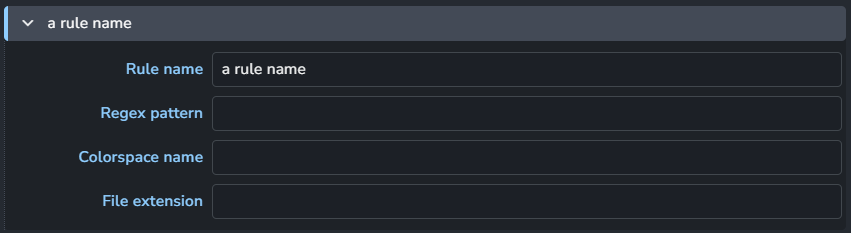

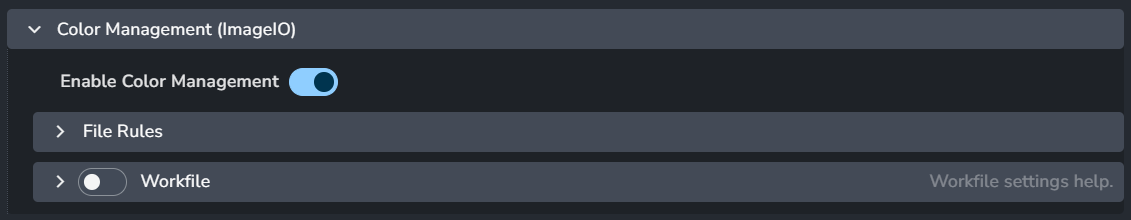

Color Management (ImageIO)​

Setting Location: ayon+settings://houdini/imageio

Allows admins to override the global color management settings, check Host specific overrides.

Shelves Manager​

Setting Location: ayon+settings://houdini/shelves

Allows admins to add studio's Shelves and scripts into Houdini.

Setting Modes​

Shelves manager works in two modes, it's either option 1 or 2.

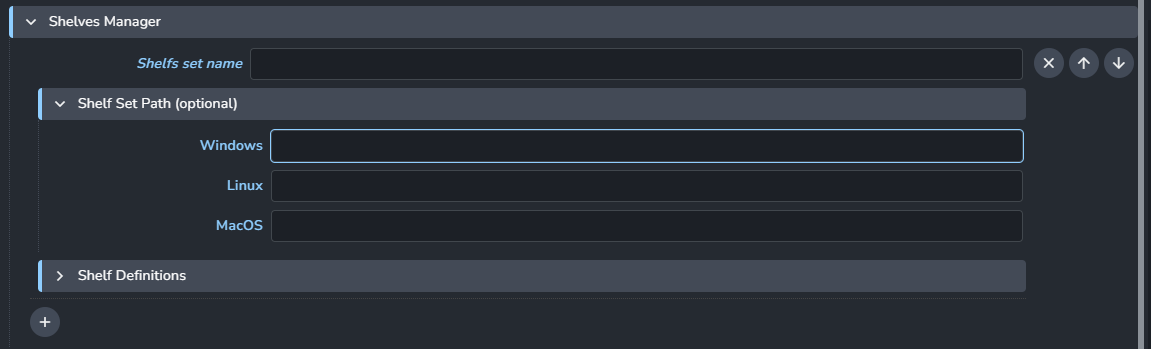

1. Add a .shelf file by only setting the Shelf Set Name and Shelf Set Path.

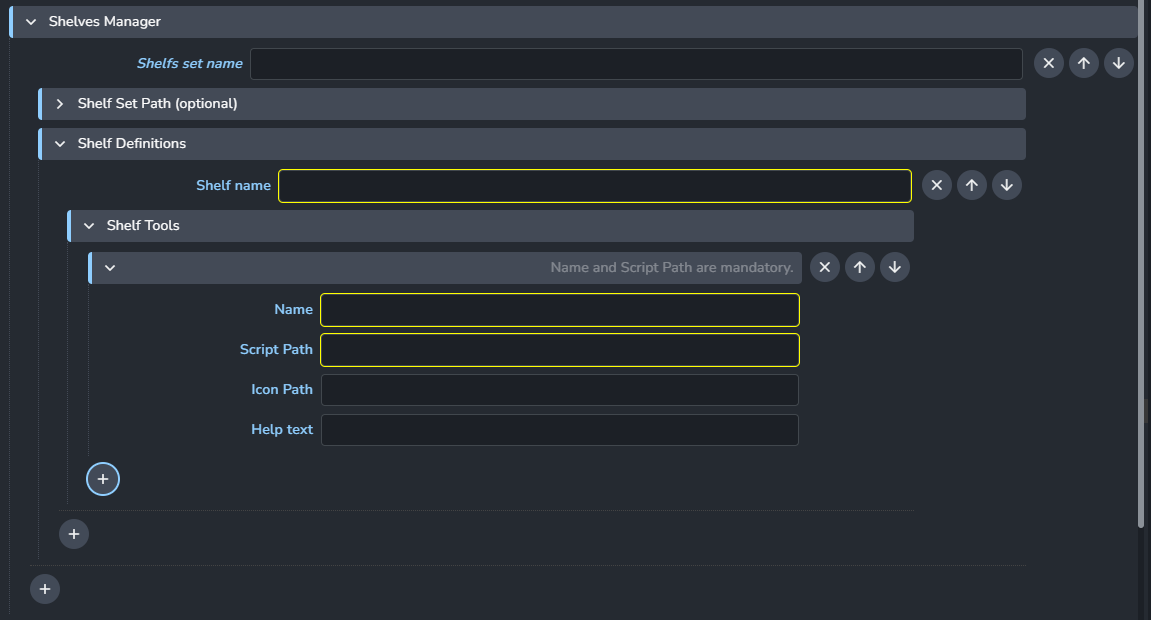

2. OR set the Shelf Set Name and create shelf definitions with shelf scripts dynamically.

   Currently, Ayon just adds the new shelf definition in default.shelf

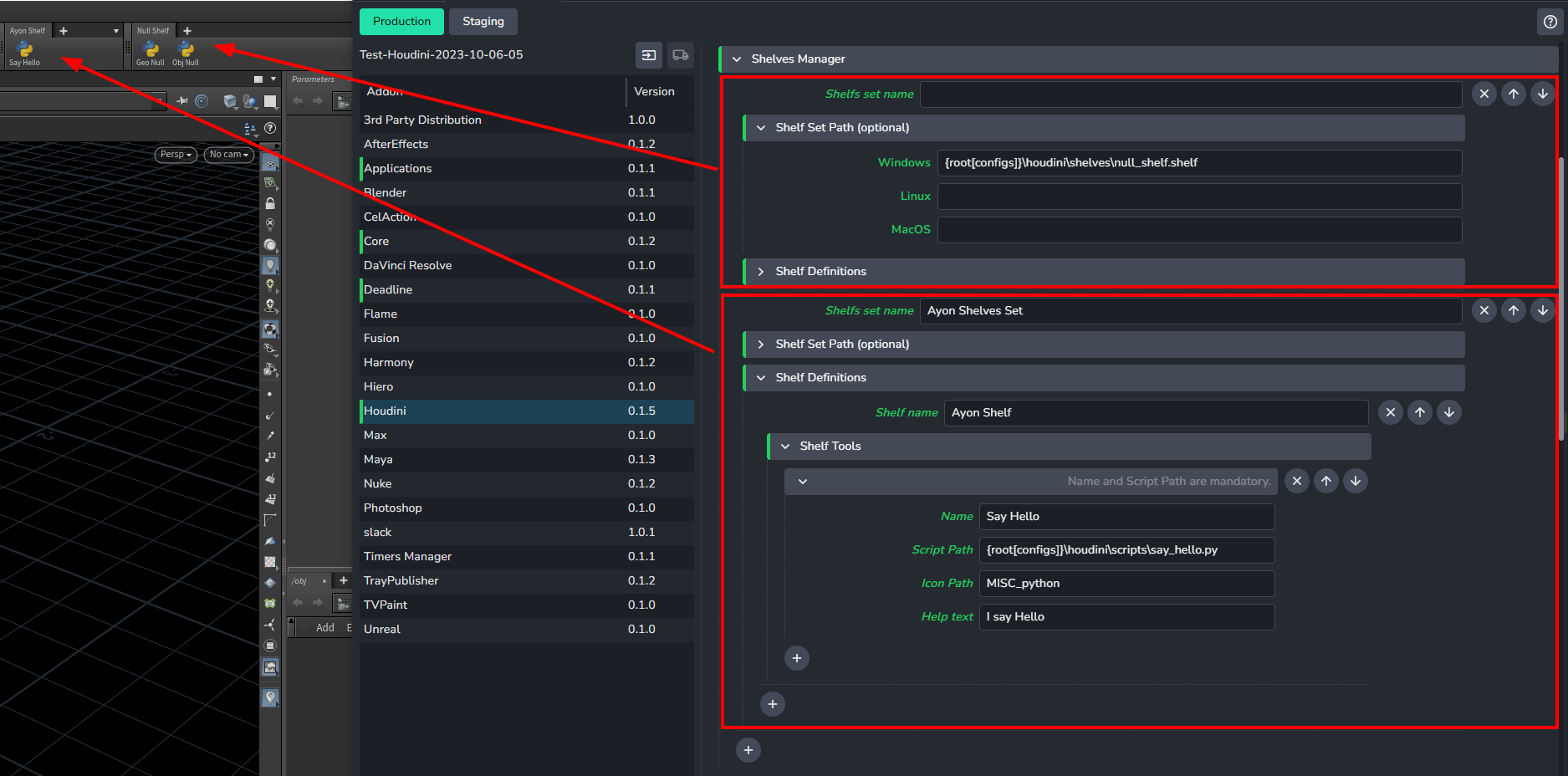

Shelves Example​

In this example I made two shelves:

1. Null Shelf which gets loaded from my pre-defined null_shelf.shelf file.

2. Ayon Shelf which includes my script Say Hello.

Creator plugins​

Setitng Location: ayon+settings://houdini/create

Enable or disable the plugins. Some of them have extra options such as defining the default products names.

Publish plugins​

Setting Location: ayon+settings://houdini/publish

Enable or disable the plugins executed at publishing.

Collect Asset Handles​

Disable this if you want the publisher to ignore start and end handles specified in the asset data for publish instances.

Artists are allowed to override this value in the publisher UI.

Validate Instance in same Context​

When working in per-shot style you always publish data in context of current asset (shot). This validator checks if this is so. It is optional so it can be disabled when needed.

FAQ​

When will I need to modify Houdini addon code ?​

We've spent a lot of time making it possible to customize Houdini addon from settings. e.g. you can add your studio's menus, tools and digital assets from settings.

Still, you may need to modify Ayon addons only when :

• Adding/Modifying/Customizing Launch Hooks

• Registering new Callbacks

• Adding/Modifying/Customizing plugins (create, publish, load, Actions)

• Adding a new Ayon launcher tray tool

How to add my menus, tools and digital assets to Houdini ?​

First, consider adding custom shelves as you can easily use them to share a lot of tools with your team. However, if you need to add custom python libraries or custom OTLs or custom menus, updating environment variables is your way to make them available to your team.

e.g.,

• PYTHONPATH to add a custom python library path

• HOUDINI_MENU_PATH to add a custom menu path

• HOUDINI_OTL_PATH to add a custom digital assets path

Ayon allows you to add environment variables as:

1. Global environment variable (it will be available for all DCCs)

2. Application specific (it will be available for a particular DCC)

3. Application variant specific (it will be available for a particular DCC version)

4. Tool (it will be available on demand per DCC per project per asset)

For a detailed guide visit: Ayon/Openpype Env Vars and Tools Configuration Explained

How to submit houdini patch version to deadline ?​

The custom AYON Deadline GlobalJobPreLoad functionality can help with that by adding the application specific environment variables before the job starts rendering. Using that we can point the Deadline Houdini plugin to e.g. just houdini for Deadline to find the executable by name instead of full path. To ensure it's found we just need to make sure the executable is available on the PATH environment variable. Like so:

• update Houdini deadline config



• add Houdini dir to PATH environment variable and add HOUDINI_VERSION for each variant



What template keys are available for use in Houdini settings?​

Houdini addon supports available template keys as well as current folder and task attributes e.g.

folderAttributes[frameStart]
folderAttributes[frameStart]
folderAttributes[frameEnd]
folderAttributes[handleStart]
folderAttributes[handleEnd]
folderAttributes[frameStartHandle]
folderAttributes[frameEndHandle]
folderAttributes[resolutionHeight]
folderAttributes[resolutionWidth]

taskAttributes[frameStart]
taskAttributes[frameStart]
taskAttributes[frameEnd]
taskAttributes[handleStart]
taskAttributes[handleEnd]
taskAttributes[frameStartHandle]
taskAttributes[frameEndHandle]
taskAttributes[resolutionHeight]
taskAttributes[resolutionWidth]
