Hiero specific tools​

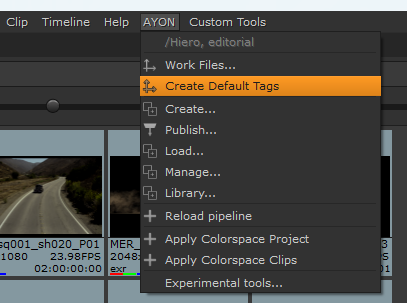

Create Default Tags​

This tool will recreate all necessary AYON tags needed for successful publishing. It is automatically ran at start of the Hiero/NKS. Use this tool to manually re-create all the tags if you accidentally delete them, or you want to reset them to default values.

Result​:

• Will create tags in Tags bin in case there were none

• Will set all tags to default values if they have been altered

Apply Colorspace Project​

This tool will set any defined colorspace definition from AYON Settings / Project / Anatomy / Color Management and Output Formats / Hiero / Workfile to Hiero menu / Project / Edit Settings / Color Management tab

Result:​

• Define correct color management settings on project

Apply Colorspace Clips​

This tool will set any defined colorspace definition from AYON Settings / Project / Anatomy / Color Management and Output Formats / Hiero / Colorspace on Inputs by regex detection to any matching clip's source path.

Result:​

• Set correct Set Media Color Transform on each clip of active timeline if it matches defined expressions

Publishing Shots​

With AYON, you can use Hiero/Nuke Studio as a starting point for creating a project's shots as assets from timeline clips with its hierarchycal parents like episodes, sequences, folders, and its child tasks. Most importantly it will create versions of plate products, with or without reference video. Publishig is naturally creating clip's thumbnails and assigns it to shot asset. Hiero also supports publishing audio product and various soft-effects either as retiming component part of published plates or color-tranformations. Those will be available later on for compositor artists to use either as viewport input-process or loaded nodes in the graph editor.

Preparing a timeline for publishing shot, plates and more​

Data conversion is not part of the process, so when working with raw camera sources or other formats which need to be converted for 2D/3D work, we recommend to convert those first and use those in the timeline. Before any clips in timeline could be converted to publishable instances we recommend following.

1. Reduce track amount by merging all tracks that can be one

2. Rename tracks to follow basic structure. Please avoid using [-/_.,%&*] or spaces. These names will be later used in product name creation as {family}{trackName} so for example plateMain or plateFg01


   if only one track it can be main when dealing with multiple layers (elements) for one shot then use main and other elements for example: bg, greenscreen, fg01, fg02, display01, etc.

3. Define correct Set Media Color Transform at all clips as those will be also published to metadata and used for later loading with correct color transformation.

4. Additional reviewable video material which you wish to be used as preview videos on any supported Project manager platform (Ftrack) has to be added ideally to track named review. This can be offline edit used as reference video for 2D/3D artists. This video material can be edited to fit length of main timeline track or it can be one long video clip under all clips in main track, because AYON will trim this to appropriate length with use of FFMPEG. Please be aware we only support MP4(h264) or JPG sequence at the moment.

Converting timeline clips to instances​

Every clip on timeline which is intended to be published has to be converted to publishable instance.

In AYON it is done by tagging a clip with our own metadata. Select all clips you wish to convert then menu > AYON > Create.

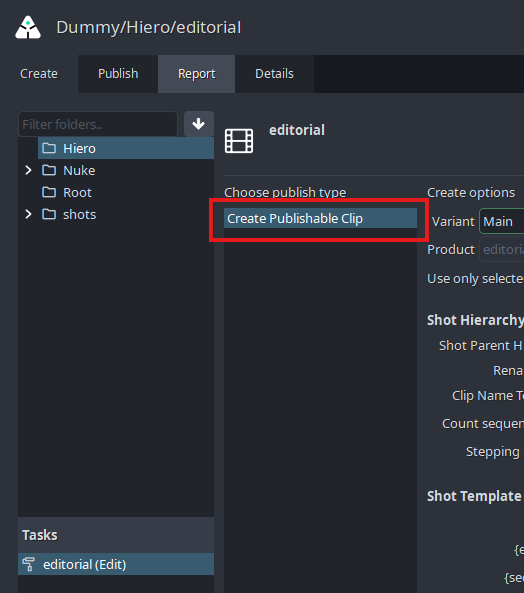

Then chose Create Publishable Clip in Creator editor.

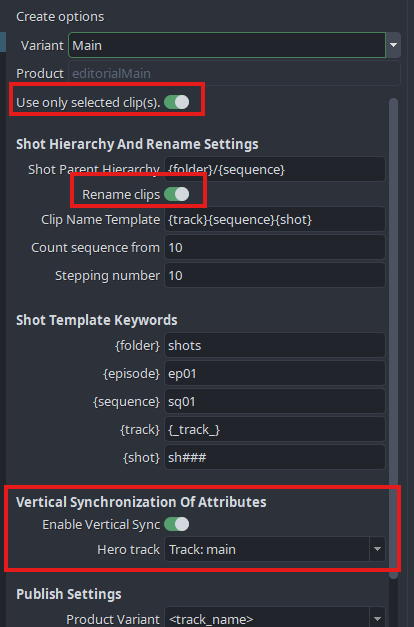

In the create options, you can define instances' properties. You might want to let use only selected clip(s) to only mark current selection as publishable clips. If you wish to rename clips dynamically during creation then Keep Rename clips ticked.

In case you wish to use multiple elements of shots workflow then ensure Enable vertical sync is ticked on and choose the correct hero track which is holding main plates, this is usually the main track.

Hover above each input field for help.

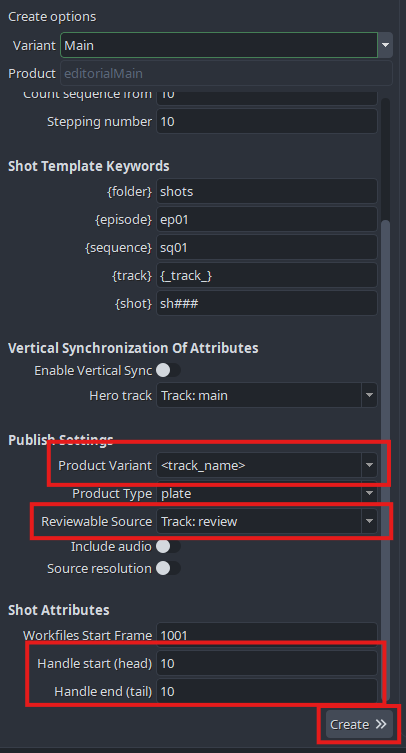

1. Product Variant

Product variant is created dynamically if <track_name> is selected on Product name.

2. Reviewables

You can enable generating review product per plate through the review setting.

3. Handles

Here you can set default value and change those later in the created AYON shot instances under handleStart and handleEnd properties (look below for details).

4. Create

After you hit Create new instances get added in the "Products to publish section". Also custom AYON tags are added to selected clips.

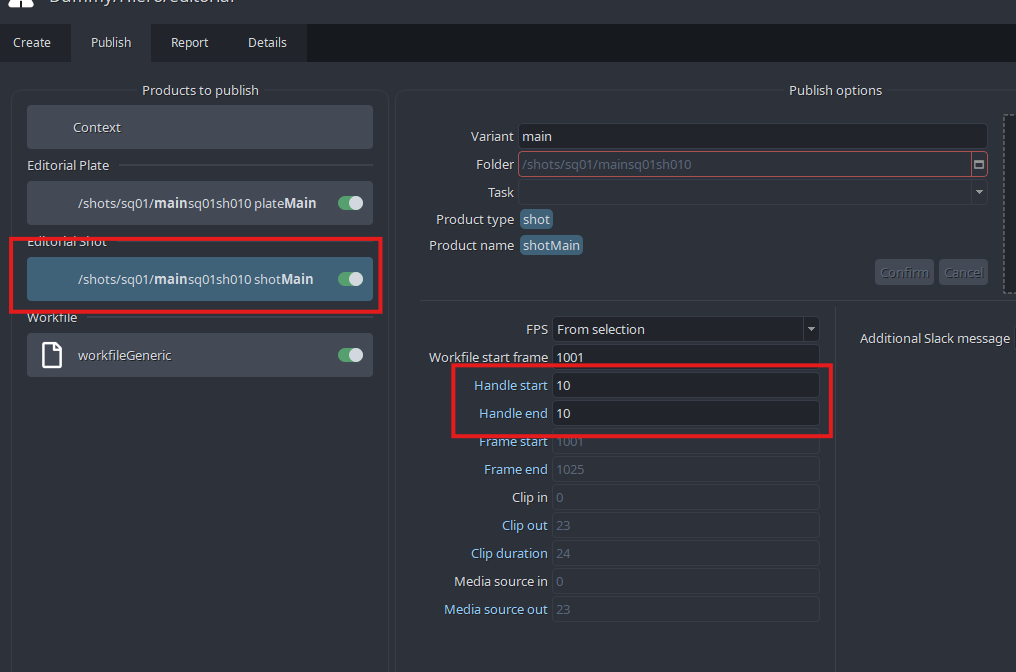

5. Adjust handles instance properties

If you wish to change any individual properties of the shot then you are able to do it directly on the instance under the Publish widget. In this example we can change handleStart and handleEnd to some other values.

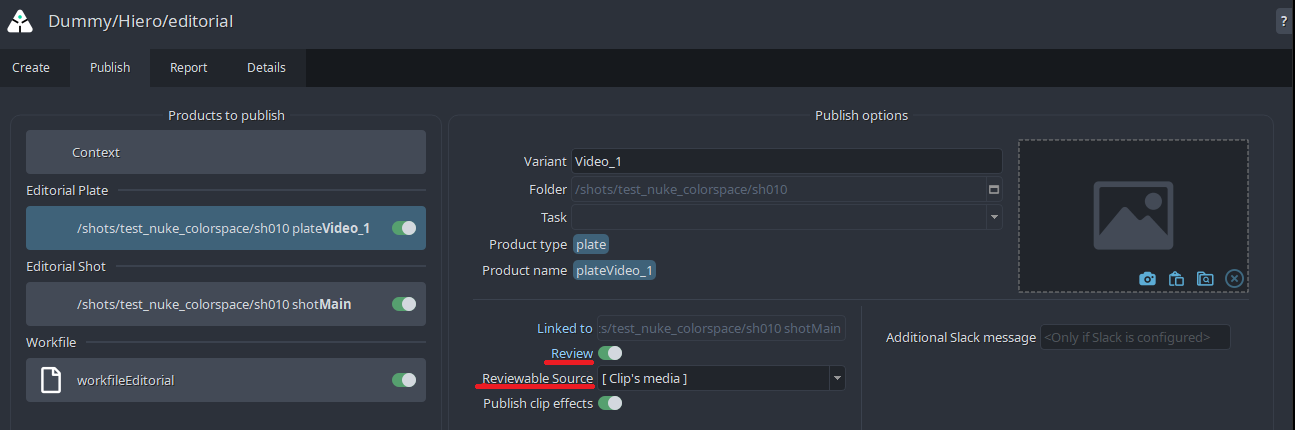

6. Adjust review instance properties

You can adjust the reviewable property through eache plate created instance.

If you wish to publish a reviewable video for the relevant plate:

1. Ensure the review toggle is enabled for the plate instance

2. Select either the appropriate track name or [clip's media] (will use the clip own source) as Reviewable Source.

Vertical synchronization of product attributes​

This feature allows to publish multiple plate variant(s) per shot.

The timeline must contain multiple tracks - one of those being the hero (driving) track. Per shot, the clip on the hero track will be driving the shot creation (shot length, shot resolution...)

To publish multiple plates for a shot proceed as follows:

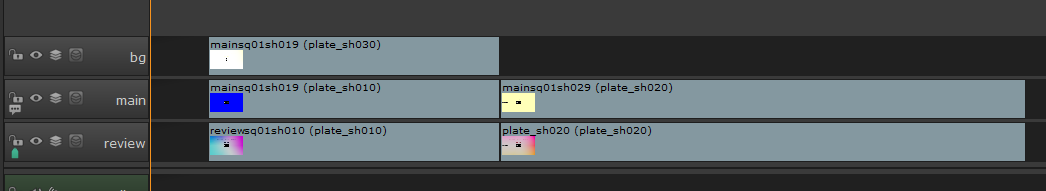

1. Set up a multiple track timeline. Rename each track to determine plate variants (e.g L01, L02 and L03)

2. Pick-up one track to be the hero track and set your main plate clip onto it.

3. Then, for each shot, stack additional plate clip(s) on other tracks aligned with the hero/main plate clip. Clips can be shorter than the main hero track clip, but not longer.

4. (Optional) You can setup another track to contain your review material

5. Select all clips that needs to be published

6. In the creator enable vertical align and select your main track as hero track

7. Create instances by hitting "Create"

8. Ensure all instances are parented to the same shot, which length is driven by the hero clip.

Publishing Effects from Hiero to Nuke

When publishing a plate from Hiero, the process can automatically detect and export associated editorial effects (e.g. Timewarp, OCIOFileTransform, Text...) as effect products. Those are json files that can be used further down the pipeline to recreate the look/result from Hiero.

This video shows a way to publish shot look as effects from Hiero to Nuke.

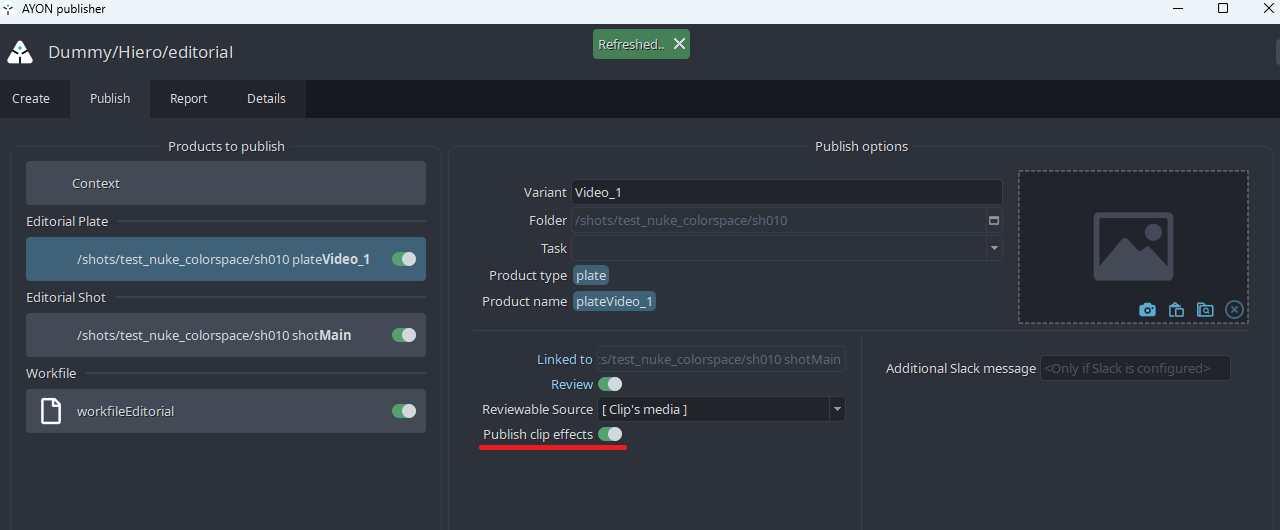

If you are not interested in publishing effects, this feature can be opted out in the Publisher UI through a toggle on each plate product instance.

Restrict instances collection to current clip selection

With long sequences, it is often the case that dozens (hundered?) of plate, shot and audio instances are created on a single timeline.

In that case, republishing only part of the sequence might be challenging, once would need to go through the product instances list and manually enable/disable the relevant ones.

To ease this corner case, the user can leverage the ayon+settings://hiero/create/CollectShotClip/collectSelectedInstance settings which, when enabled, restrict the product instance collection to the selected clips from the timeline.
